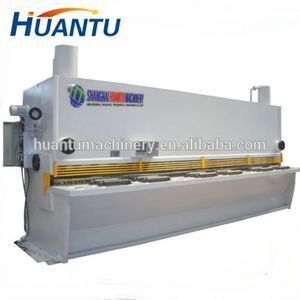

QC11Y Hydraulic Guillotine Shearing Machine, Metal Sheet Cutting Machine, Steel Cutting Machine

Supplier: Shanghai Huantu Technical Industry Co., Ltd.
Region: Shanghai, China
Contact: Ms Cindy He
Price: $5900.00 /set
Min. Order: 1 set

Click here to contact

Product details

Seal ring:	Valqua;	Blade Length (mm):	6100;
Max. Cutting Width (mm):	9000;	Payment Terms:	L/C,T/T,Western Union;
Max. Cutting Thickness (mm):	120;	Applicable Industries:	Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ,Energy & Mining;
Packaging Detail:	Wooden Box;	Condition:	New;
Power (kW):	7.5;	Key Selling Points:	Competitive Price;
Weight (KG):	18000;	Main Motor:	Siemens;
Certification:	CE SGS SONCAP ISO;	Warranty:	5 years;
Port:	Shanghai China;	After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Voltage:	Client Required;	Shearing Angle:	0-3;
Electronic system:	Schneider;	Dimension(LWH):	Model Different;
Brand Name:	Huantu Machinery;	Place of Origin:	Shanghai China;
Hydraulic system:	Bosch Rexroth;	Supply Ability:	1000 Set/Sets per Year;
Throat Depth (mm):	400;	Automatic Level:	Fully Automatic;

QC11Y Hydraulic Guillotine Shearing Machine, Metal Sheet Cutting Machine, Steel Cutting Machine

Product Overviews

1. Using fabricated steel structure, with compact,construction and good rigidity stability

2. Integrated hydraulic transmission system, with good reliability

3. Using Back gauge using intelligent digital display device, shear quantity can be automatic counted, distance of back gauge can be set according to requirements of customers

4. Moving orbit of the blade beams inclines forwards to the supporting surface of the bottom blade, so you can gain fine shear surface. Jacking screws of the top blade provide a fine adjustment to minimize “rag” or “burring” on the sheared edge of the material. The hold-down assembly adopts the butterfly springs. There are antiskid heel block on the hold-down device of hold-down plate. The pressure is bigger, but it doesn’t damage the sheet-metal surface.

5. Drived by a self-contained, totally enclosed gearbox mounted directly on the main shaft. Its construction is compact and the gear is well lubricated with low noise and long life.

6. Our Machine hasn’t the clutch and the flywheel. It shears the sheet-metal directly drived by the magnetic brake motor. This reduces the idle time of the motor and saves the energy.

7. Front and back gauges are provided with the scale plate displaying the scale. The back gauge may be easily adjusted in synchronism

QC11Y Hydraulic Guillotine Shearing Machine, Metal Sheet Cutting Machine, Steel Cutting Machine e

Technology Parameter

Model (QC11Y)	Shearing Thickness	Shearing Width	Strokes	Back gauge Range	Shearing Angle	Throat Height	Main Motor Power
Model (QC11Y)	(mm)	(mm)	(mm-1)	(mm)	(.)	(mm)	(kw)
6*2500	6	2500	16-35	20-500	30’-1 30’	800	7.5
6*3200	6	3200	14-35	20-500	30’-1 30’	800	7.5
8*3200	8	3200	12-30	20-600	30’-2	850	11
8*6000	8	6000	8-20	20-600	30’-2	1050	15
12*3200	12	3200	12-25	20-600	30’-2	900	15
12*6000	12	6000	6-20	20-800	30’-2	1060	30
16*3200	16	3200	12-20	20-600	30’-1 30’	900	22
16*6000	16	6000	6-15	20-800	30’-1 30’	1100	37
20*3200	20	3200	10-20	20-600	30’-3	950	30
20*6000	20	6000	6-15	20-800	30 -3	1200	37
25*4000	25	4000	6-12	20-800	30’-1 30’	1100	37
32*3200	32	3200	8-12	20-800	30’-4	1100	55
40*3200	40	3200	4-10	20-800	30’-4	1200	55

QC11Y Hydraulic Guillotine Shearing Machine, Metal Sheet Cutting Machine, Steel Cutting Machine

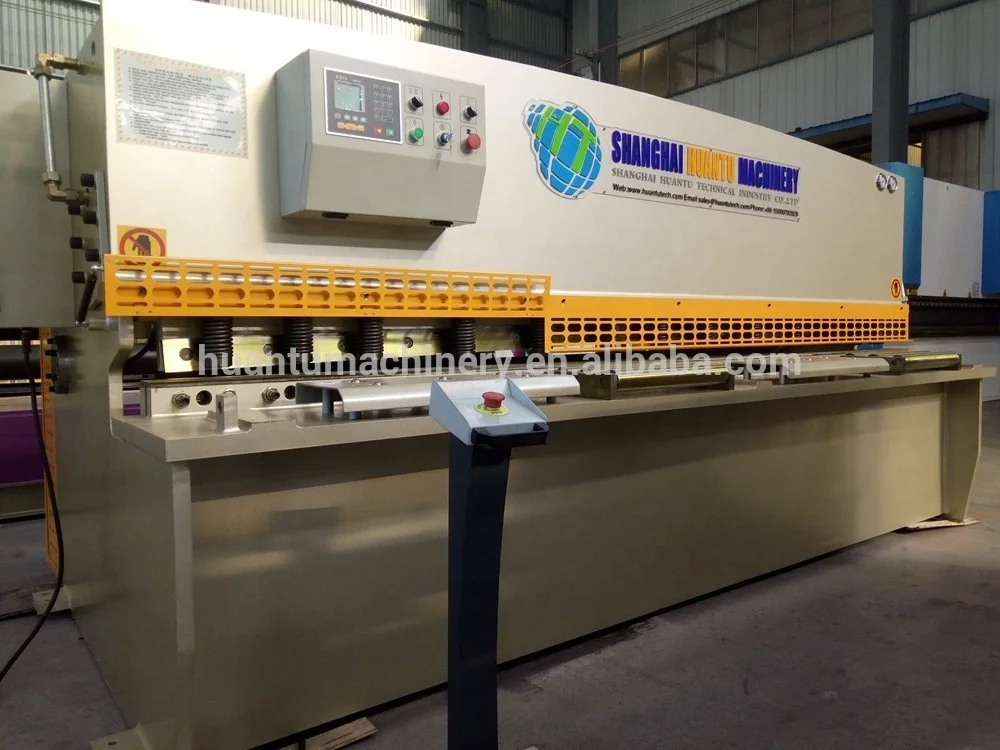

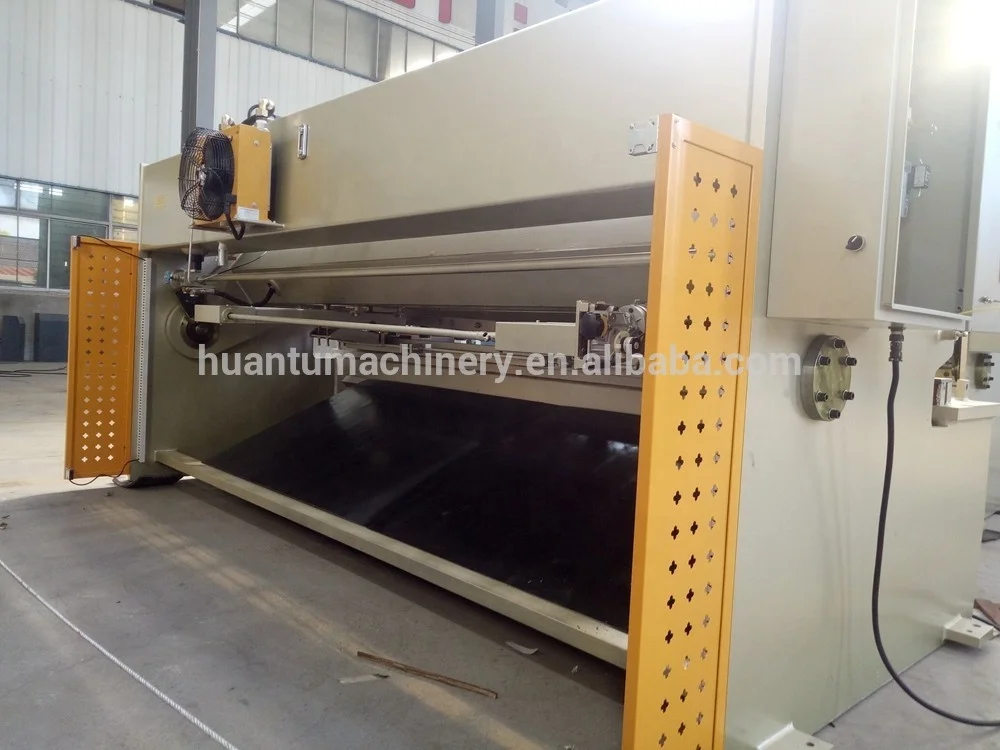

Detailed Images

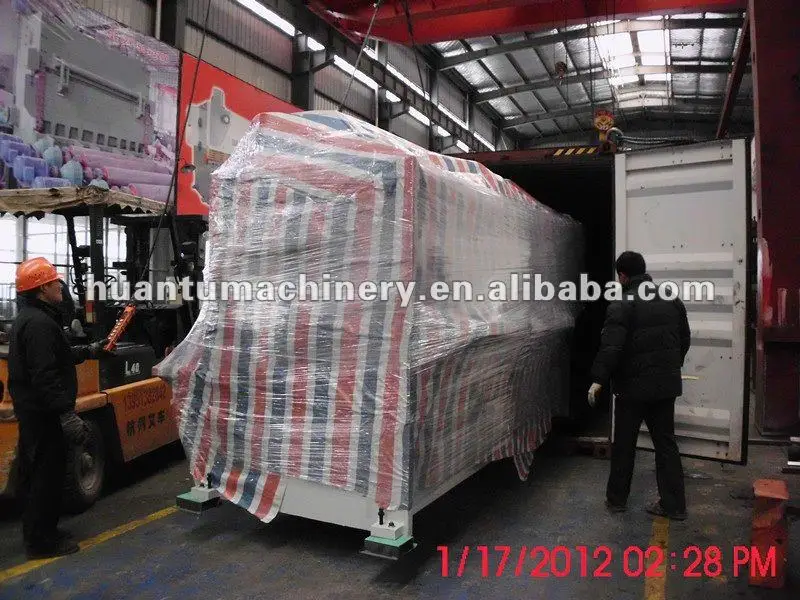

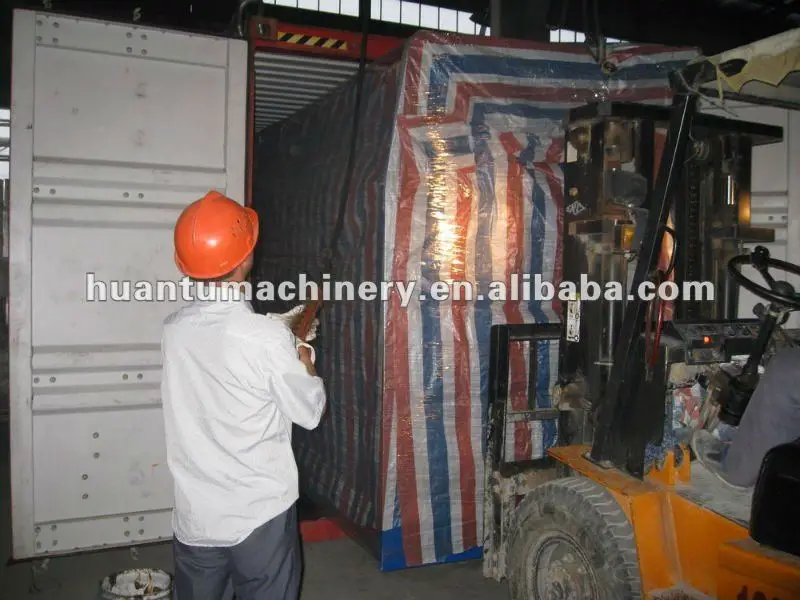

Packing and Loading

Warranty

Our guarantee time is 5 years from B/L date. If any component is damaged during guarantee time, we can send the component to the customer by DHL, TNT freely.
Our factory can send our engineer to the customer’s factory install, commission and training freely. The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
Our factory provide the service for the customer forever, if the customer need operation help, can contact us by wechat, Skype, Email , whatsapp and Telephone at any time, we provide 24 hours on-line service.
