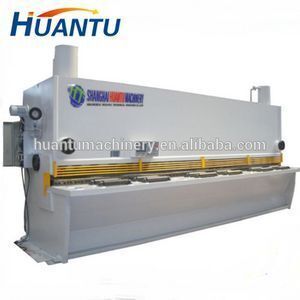

QC12Y-12X2500 Hydraulic CNC Program Iron Shearing Machine

Supplier: Shanghai Huantu Technical Industry Co., Ltd.
Region: Shanghai, China
Contact: Ms Cindy He
Price: $5900.00 /set
Min. Order: 1 set

Click here to contact

Product details

Hydraulic system:	Bosch Rexroth;	Main Motor:	Siemens;
Max. Cutting Width (mm):	6000;	Max. Cutting Thickness (mm):	600;
Warranty:	5 years;	Dimension(LWH):	Model Difference;
Seal ring:	Valqua;	After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Key Selling Points:	Competitive Price;	Port:	Shanghai China;
Automatic Level:	Fully Automatic;	Voltage:	Model Difference;
Supply Ability:	1000 Set/Sets per Year;	Weight (KG):	7000;
Shearing Angle:	0-3;	Electronic system:	Schneider;
Applicable Industries:	Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ,Energy & Mining;	Power (kW):	7.5;
Blade Length (mm):	6100;	Brand Name:	Huantu Machinery;
Payment Terms:	L/C,T/T,Western Union;	Condition:	New;
Certification:	CE ISO;	Place of Origin:	Shanghai China;
Throat Depth (mm):	400;	Packaging Detail:	Wooden Box;

QC12Y-12X2500 Hydraulic CNC Program Iron Shearing Machine

1. Our CNC Program Iron Shearing Machine using fabricated steel structure, with compact, construction and good rigidity

2. Our CNC Program Iron Shearing Machine using integrated hydraulic transmission system, with good reliability

3. Our CNC Program Iron Shearing Machine using Back gauge using intelligent digital display device, shear quantity can be automatic counted, distance of back gauge can be set according to requirements of customers

4. Our CNC Program Iron Shearing Machine 's moving orbit of the blade beams inclines forwards to the supporting surface of the bottom blade, so you can gain fine shear surface. Jacking screws of the top blade provide a fine adjustment to minimize “rag” or “burring” on the sheared edge of the material. The hold-down assembly adopts the butterfly springs. There are antiskid heel block on the hold-down device of hold-down plate. The pressure is bigger, but it doesn’t damage the sheet-metal surface Our shearing machine is driven by a self-contained, totally enclosed gearbox mounted directly on the main shaft. Its construction is compact and the gear is well lubricated with low noise and long life

5. Our CNC Program Iron Shearing Machine hasn’t the clutch and the flywheel. It shears the sheet-metal directly drived by the magnetic brake motor. This reduces the idle time of the motor and saves the energy

6. Our CNC Program Iron Shearing Machine 's front and back gauges are provided with the scale plate displaying the scale. The back gauge may be easily adjusted in synchronism

Model QC12Y	Shearing Thickness	Shearing Width	Strokes	Back gauge Range	Shearing Angle	Main Motor Power
Model QC12Y	(mm)	(mm)	(time/min)	(mm)	(.)	(kw)
4*3200	4	3200	18	20-500	1 30’	5.5
6*3200	6	3200	14	20-500	1 30’	7.5
8*3200	8	3200	12	20-500	1 30’	11
10*4000	10	4000	12	20-600	1 30’	15
12*6000	12	6000	6	20-600	1 30’	22
12*8000	12	8000	5	20-600	1 30’	22
16*3200	16	3200	12	20-600	2	22
16*4000	16	4000	8	20-600	2	22
20*4000	20	4000	5	20-600	2 30’	30
25*4000	25	4000	6	20-600	2 30’	37
32*3200	32	3200	5	20-600	3	37
40*3200	40	3200	5	20-600	3	45
50*3000	50	3000	5	20-600	3	90*3
50*6000	50	6000	5	20-600	3	90*5
60*3500	60	3500	5	20-600	3 30’	90*4
