Shanghai HUANTU Q35Y Universal Hydraulic iron worker ironworker

Supplier: Shanghai Huantu Technical Industry Co., Ltd.
Region: Shanghai, China
Contact: Ms Cindy He
Price: $5500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Selling Units:	Single item;	CNC or Not:	Normal;
Single package size:	236X98X230 cm;	Weight (KG):	5000;
Voltage:	Model Different;	Motor:	ABB;
Single gross weight:	6,200 KG;	Place of Origin:	Shanghai China (Mainland);
Package Type:	Iron Pallet and water proof clothes;	Warranty:	5 years;
Key Selling Points:	Competitive Price;	Condition:	New;
Slide Stroke (mm):	Model Different;	Power(W):	Model Different;
Certification:	CE SONCAP;	Hydraulic System:	ATOS;
Power Source:	Hydraulic;	After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Brand Name:	Huantu Machinery;	Applicable Industries:	Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Construction works ;
Dimension(LWH):	Model Different;	Electricals:	Siemens;
Package Preview:	https://sc01.alicdn.com/kf/HLB184GsaJfvK1RjSszhq6AcGFXar.jpg_640x640.jpg;

Product Description

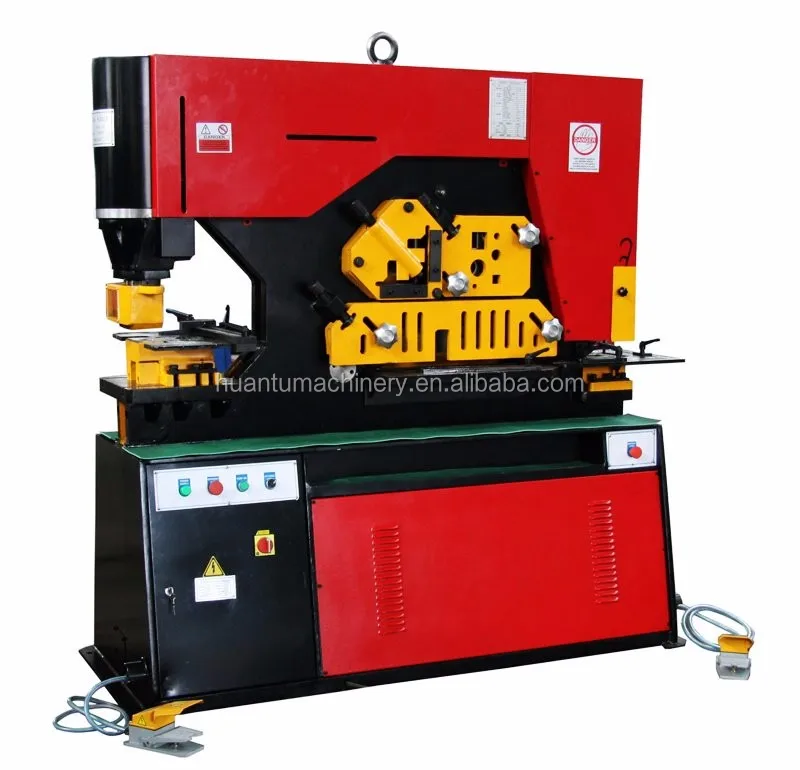

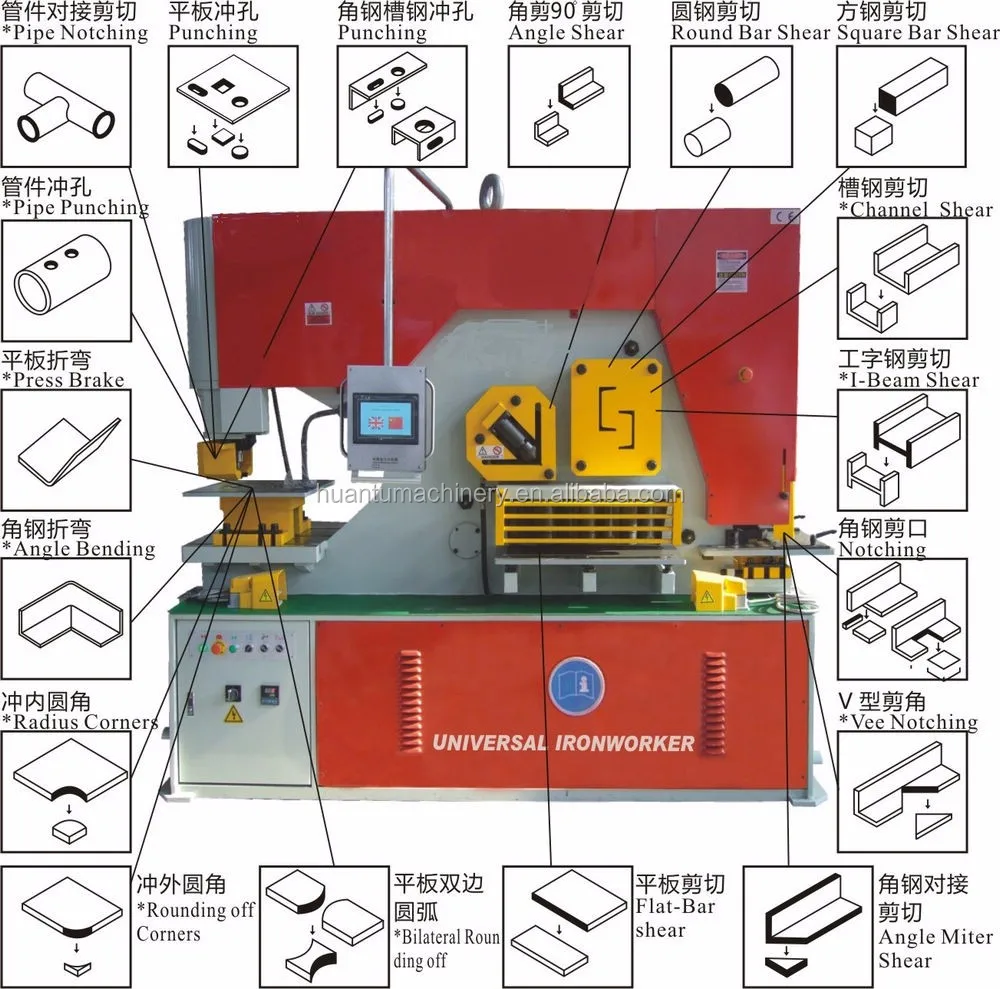

The multi functional iron worker(Q35series) can cut and punch all kinds of materials such as plate, square bar, angle, round bar, channel and so on. It has another special function, that is , it can also bend the plate below 500mm. With its multifunction, the machine is your first choice among the counterpart machine. All the components are of the highest quality in their safety , function, capability and maintenance.

Model	Q35Y-16 (IW-60)	Q35Y-20 ( IW-90)	Q35Y-25 (IW-120)	Q35Y-30 (IW-140)
Working pressure(KN)	600	900	1200	1400
Max. cutting thickness(mm)	16	20	25	26
Max. cutting length(mm)	400	480	600	600
Tensile strength of sheet metal	≤450	≤450	≤450	≤450
PUNCHING METRIC(mm)
Max. Capacities	25×16	30×20	35×25	38×26
Max. Stroke Length	80	80	80	80
Throat Depth Standard	305	355	400	600
Working Height	1030	1084	1142	1209
SHEARING
Flat Bar	250×16	330×20	300×25	355×30
Alternative	400×8	480×10	600×16	600×20
Blade Length	410	485	620	610
Working Height	890	894	891	897
ANGEL CUTTING
At 90°cut	125x125×12	140x140×12	160×160x16	180x180×16
At 45°Mitre	70×10	70×10	70×10	70×10
Working Height	1130	1139	1200	1220
SECTION CUTTING
Round / Square Bar	45	50	60	65
Channel / I bar	130×65	160×88	200x100	280×122
T bar	90×12	90×12	90×12	90×12
NOTCHING
Material Thickness	10	13	14	16
Width	57	57	57	57
Depth: Vee -Rect.	60-90	60-90	60-90	60-90
Working Height	890	883	886	898

Certifications

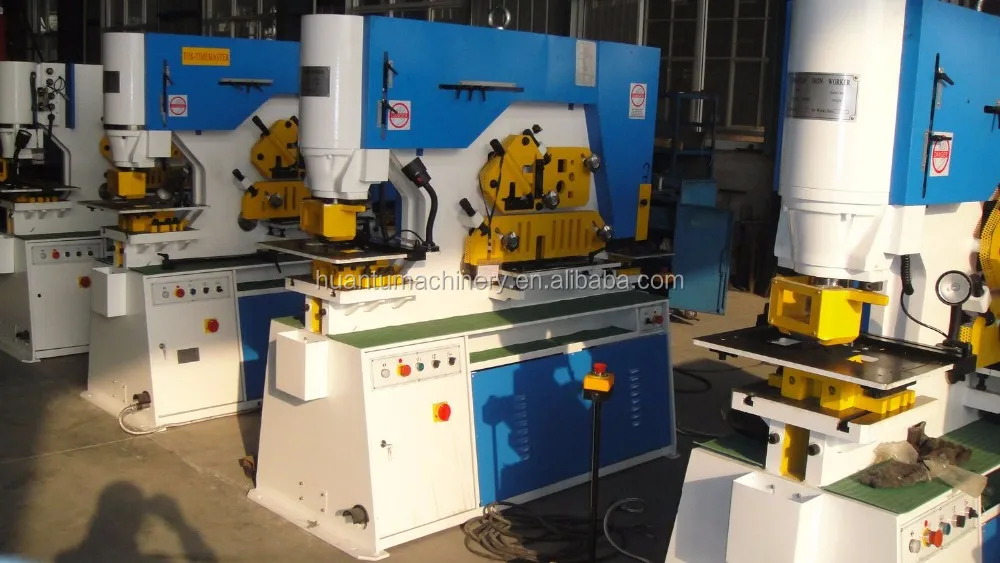

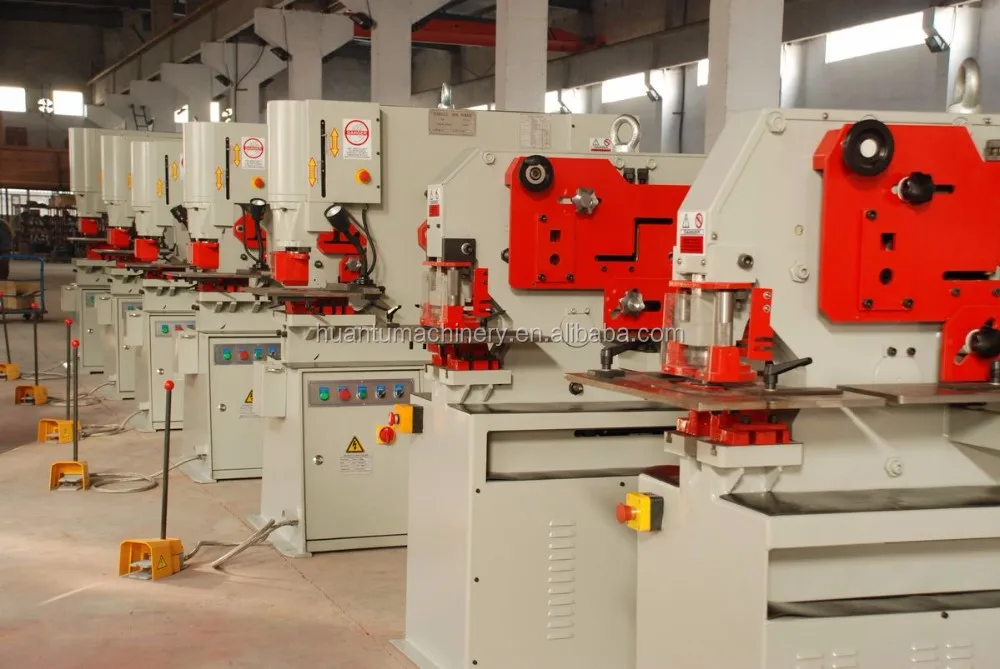

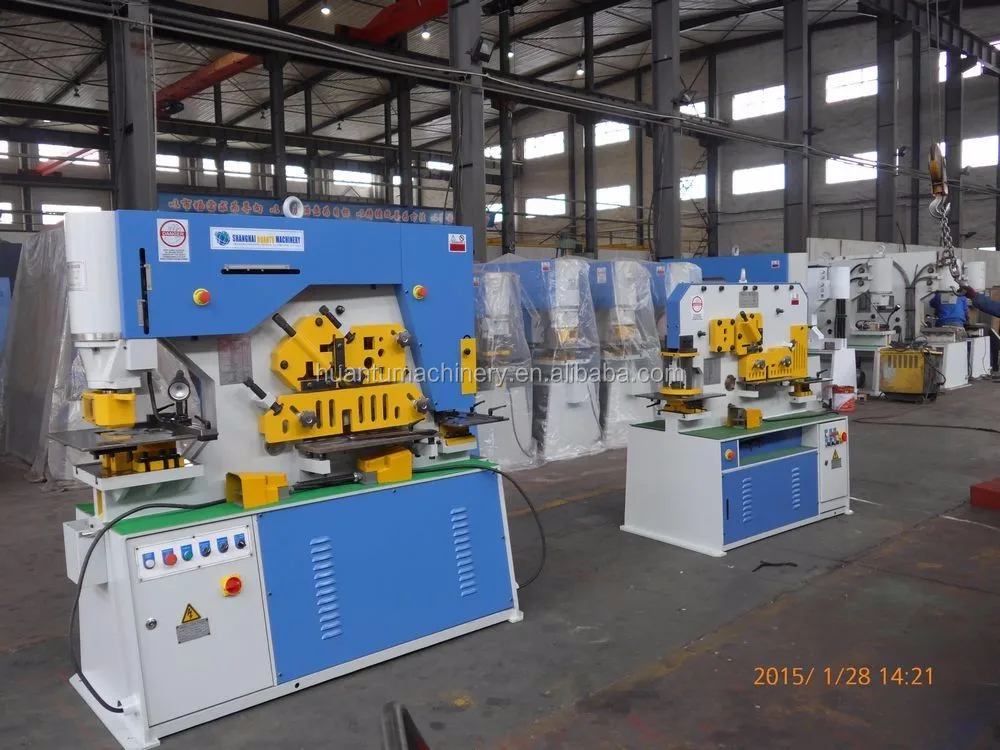

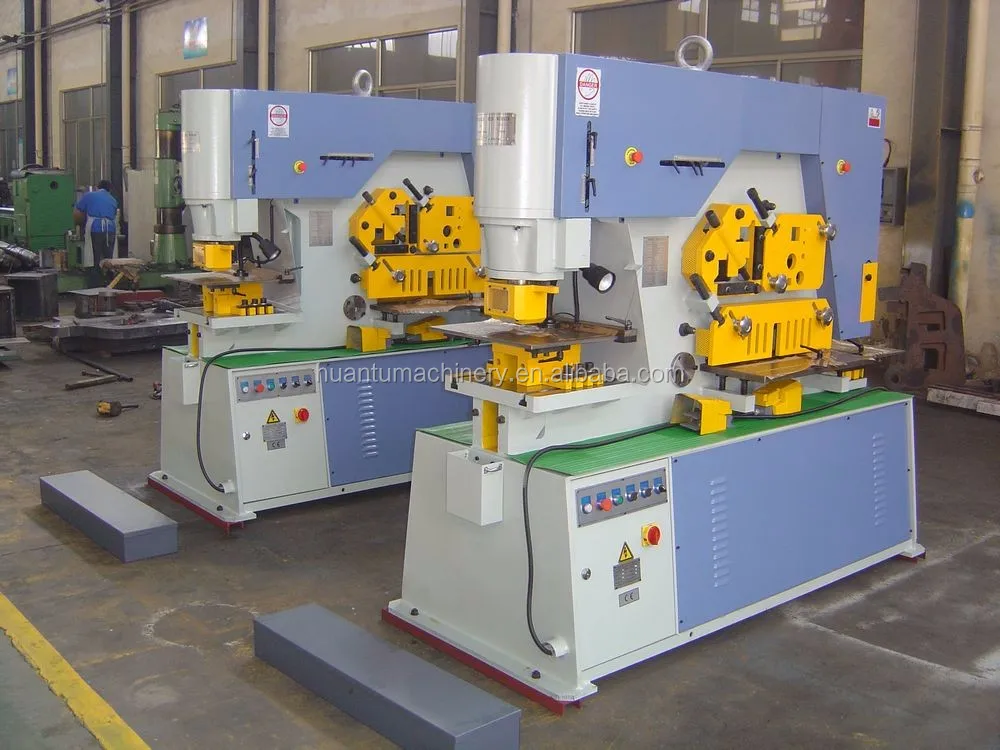

Detailed Images

Packing & Delivery

Packaging
Dimension	( L* W* H )2355×960×2090 mm
Weight	4.8 T
Package	Iron pallet and waterproof clothes
HOW TO CHOOSE CONTAINER	For small and medium size machines ( machine height less than 2600mm ) we can use folklifter to load into container and unload the machine from the container. Container type we can choose 20' feet or 40'feet container
