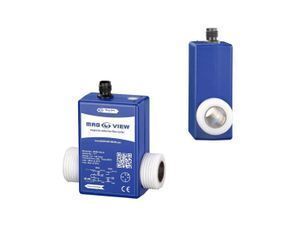

MAG-VIEW Electromagnetic flowmeter for conductive liquids

Supplier: MASS FLOW ONLINE B.V.
Region: Gelderland, Netherlands
Contact: Mr. Jan Willem Voortman
Price: $522.88 /piece
Min. Order: 1 piece

Click here to contact

Product details

Medrium:	Water and other condictive liquids;	Delivery Detail:	Fully stocked, despatch will be within 2 days.;
Process connection:	G3/8'' BSP male thread;	Brand Name:	MAG-VIEW;
Place of Origin:	Netherlands;	Payment Terms:	T/T,VISA, AMEX, Paypal;
Output:	Pulse Output;	Supply Ability:	per Shipment: United Parcel Services (UPS);
Model Number:	MVM-002-Q;	Flow Range:	0.1 .. 2 lpm;
Repeatability:	1%;	Packaging Detail:	Shipping Weight: 0.7kg;
Accuracy:	± 1%RD;	Type:	Magnetic Inductive Flow Meter;

Product Description

The MAG-VIEW™ series operate on the magnetic inductive principle. The complete absence of moving parts, its interference free operation and the insensitivity with contaminated liquids, makes MAG-VIEW™ the perfect solution even in compact machines with cramped confines.

Advantages

- The ideal solution for interference free operation
- No mechanical wear
- Meters have a long-life cycle
- Can be used in areas where flow sensors with moving parts cannot be applied
- Insensitive against pressure peaks and particles in the medium because of protected transducers
- Wide independence to the inlet and outlet pipes enable installation in compact machines with cramped confines
- No additional pressure drop
- Insensitive with contaminated liquids

Features of Magnetic Flow Meter

- Makes liquid flows visible by

◦ Pulse output
◦ Blinking LED (red/green)
- No mechanical wear
- No moving parts
- Ease of mounting and operation
- Mounting in any position
- Free pipe cross section

- No additional pressure drop

- Fast response (<100 ms)
- Insensitive with contaminated liquids
- Ideal solution for interference free operation combined with a long-life cycle
- Can be used in areas where flow sensors with moving parts cannot be applied
- Wide independence to the inlet and outlet pipe creates the advantage to be able to install in compact machines with cramped confines

Applications

The fields of application for MAG-VIEW are diverse:
- Can be used in areas where flow sensors with moving parts (paddle wheel, turbine sensors) cannot be applied due to contaminated media
- Sensor is intended for continuously measuring of flow rates or for dosing / batching of electrically conductive liquids with a minimum of 50µS/cm
- Water distribution
- Chemical feed

Flow Ranges
This magnetic flow meter is suitable to measure flows of water and other conductive liquids within a flow range of 0.1 .. 2 lpm.
Model	Min	Max	Output signal starts
MVM-002-Q	0.1 l/min	2 l/min	~ 0.05 l/min

Technical Specifications
Performance		Specifications
Accuracy*		± 1%RD
Repeatability		1%
Rangeability		1:20
Signal output starting from		~ 0.05 l/min
Medium		Water and other conductive liquids with a minimum conductivity of 20 μS/cm (lower conductivity affects the accuracy)
Operating temperature		-10...60 °C (not freezing)
Operating pressure		10 bar(a) (20 °C), 8 bar(a) (40 °C), 6 bar(a) (60 °C)
Nominal diameter		DN 3
Process connection		G3/8'' BSP male thread
Flow indication		Green LED: flow proportional flashing; red LED: supply voltage
Response time		< 100 ms
* test conditions: Water 23 °C

Mechanical		Specifications
Materials (wetted parts)		Housing: ABS Electrodes: Stainless Steel 316L Process connections: PVDF Measuring pipe: PVDF Grounding rings: Stainless Steel 316L
Protection		IP65

Electrical		Specifications
Frequency output
Pulse rate		10000 pulses/l
Resolution		0.1 ml/pulse
Signal shape		Square wave signal, duty cycle 50:50 (NPN or PNP)
Signal current		<25 mA
Electrical connection		4-pin-plug M12x1
Power supply		24 VDC±10%
Power consumption		0.6 W
Electrical protection measures		Short-circuit proof, polarity protection
Pin assignment		PIN 1: +U PIN 2: frequency output NPN or PNP PIN 3: GND PIN 4: frequency output NPN or PNP We recommend using resistors of ~2.2kΩ and 0.25 W for pull-up/pull-down wiring.

Pressure Drop

Connection to a PLC
