plastic granule vacuum hopper auto feeder/vacuum loader

Supplier: Dongguan Mitex Automation Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Jess Wang
Price: $700.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power(W):	1.5kw;	Dimensions MM:	540x560x1230 MM;
Name:	plastic granule vacuum hopper auto loader/vacuum feeder;	Dimension(LWH):	540x560x1230 MM;
Conveying tube inner dim(mm):	PHASE38;	Warranty:	1 year;
Place of Origin:	Guangdong China;	Attached hoses(mm):	PHASE38*8m1pcs;
Net weight KG:	58;	Packaging Detail:	wooden case packing auto feeder;
Condition:	New;	Static wind pressure(mm/H2O):	2400;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;	Application:	injection moulding;
Certification:	CE Certificate;	Supply Ability:	100 Set/Sets per Month;
Voltage:	380V/50Hz/3Phase;	Weight:	58KG;
Reservoir volue(L):	10/7.5;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Brand Name:	Mitex;	Conveying capacity(kg/hr):	500;
Motor hp:	Induction/2HP 3PHASE;	Port:	shenzhen;
Loading distance(m):	4;

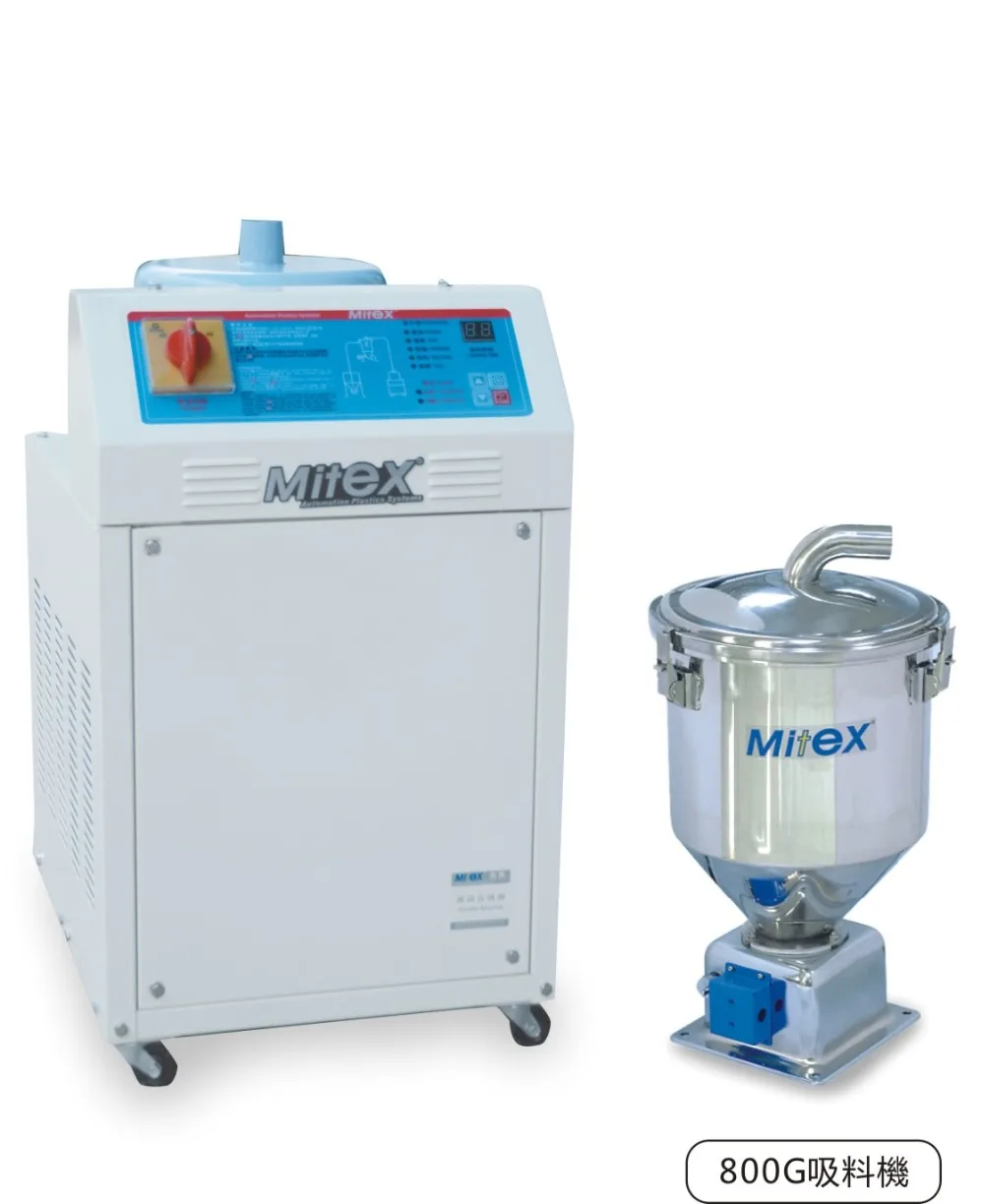

plastic granule vacuum hopper auto feeder/vacuum loader

Product Description

Technology

FEATURES of Auto Feeder

♦Full automatic programmed operation.

♦Automaticalarm for overload or short of material.

♦Stainless steel hopper construction.

♦Main controller and hopper designed separated, to ensure safety and convenient.

♦Separatedfilter installation, easy to remove pooling of powder.

♦Automation pump reverse system.

MITEX MVL series sandard separate vacuum hopper loaders are suitable for conveying material over long distance. All models adopt stainless steel hopper to ensure no contamination to raw material. High efficiency high pressure blower features light weighted, durable, great suction power, easy installation and operation.
This improved jet loader was developed based on ther concept of having a " cleaner production area". Equipped with a full-range this state of the art jet loader will help you realize a working environment.

Safety Protecting And Indication System

♦Power source phase deficient protection

♦Circuit breaker

♦Pump reversal protecting and indicating lamp

♦Pump over load protecting and indicating lamp

♦Water shortage protecting and indicating lamp

♦Over heat protecting and indicating lamp

♦By-pass pressure lose circuit

♦Cooling compulsory

♦Temperature deviation alarm and indicating lamp

♦Break down alarm buzzer

Specifications

Product Model	MVL-800G	MVL-2HP	MVL-3HP	MVL-5HP	MVL-7.5HP
Motor Type	Induction
Motor Specifications	1HP 3¢	2HP 3 ¢	3HP 3¢	5HP 3 ¢	7.5HP 3 ¢
Conveying capacity(kg/hr)	440	500	590	820	1000
Loading distance(m)	4	4	5	6	6
Static wind pressure(mm/H2O)	2400	2400	2400	3000	3000
Reservoir volume(L)	12/7.5	12/7.5	12/7.5	25	25/40
Conveying tule inner dia(mm)	¢38	¢38	¢38	¢51	¢63
Attached hoses(mm)	¢38mm*5m 2pcs	¢38mm*5m 2pcs	¢38mm*5m 2pcs	¢51mm*12m 1pc	¢63mm*16m 1pc
Dimensions cm	375455570	375455570	600450870	750520950	750520950
Weight KG	58	58	66	90	135
Weight KG	58	58	66	10	12
