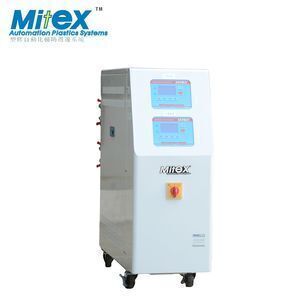

200 degree oil-circulated electromagnetic induction water heater for injection machine

Supplier: Dongguan Mitex Automation Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Jess Wang
Price: $1500.00 /set
Min. Order: 1 set

Click here to contact

Product details

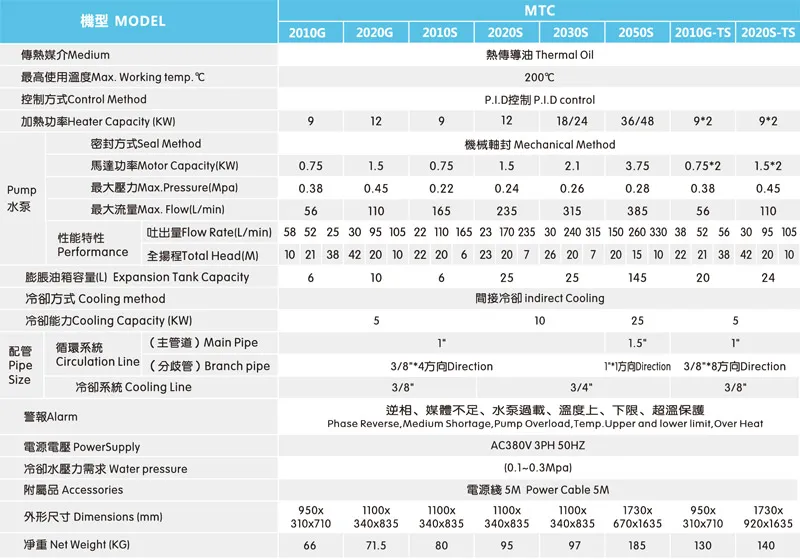

Max power consumption:	10.5KW;	Internal Piping Size:	3/8";
Payment Terms:	L/C,T/T,Western Union;	Warranty:	1 Year;
Port:	Shenzhen;	Weight:	70kg;
Pump power:	2HP;	Condition:	New;
Temperature Range:	30℃-200℃;	Oil tank capacity:	7L;
Dimension(LWH):	1000320750mm;	After-sales Service Provided:	Engineers available to service machinery overseas;
Voltage:	380v;	Cooling capacity:	9000Kcan/H;
Application:	Industrial;	Type:	Oil Temperature Machine;
Packaging Detail:	Packed in wooden cases;	Certification:	CE;
Place of Origin:	Guangdong China (Mainland);	Max working temperature:	200 degree;
Power(W):	9KW;	Temperature Control Accuracy:	±0.3;
Supply Ability:	300 Set/Sets per Month;	After-sales Service Provided:	Video technical support,Free spare parts,Online support;
Brand Name:	MITEX;

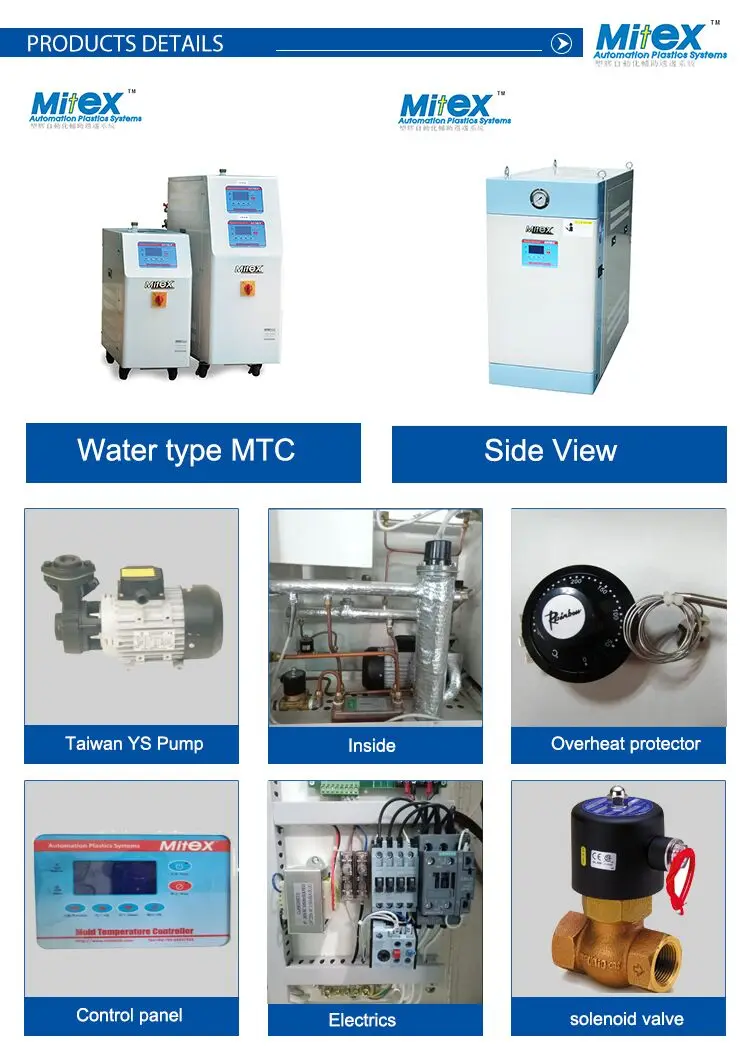

FEATURES of mold temperature controller

♦Maxium operating temperature:300℃

♦ high efficiency oil cycle pump,big flow rate,long servicfee life

♦ Hot water piping is single unit design extended to 4 inlet and 4 outlet separation tubes to avoid leakage.

♦ Rapid heating and cooling. Temperature kept stable at all times

♦ P.I.D. multi-stage temperature control system can maintain a mould temperature with accuracy of ±0.3°C, saves above electricity 35%

♦ Equipped with high pressure protection, safety pressure relieving, automatic oil supplying and air exhausting.

MITEX Oil temperature control machine merit controls the warm scope big, thermal stability good, but needs the medium cost,has the greasy dirt, the heat conduction efficiency was inferior to the water temperature machine, this company newest development type, the useimport board style heat interechanger, has the compact structure , controls the warm scope to reach 350°C, rises to decrease temperature the speed to be quick, control the warm precise characteristic. The machines are widely used in the following fields: the temperature of precise injection molding, roller calendering, plastic film production lines, extrusion production lines, blowing bottle blowing and triplex rubber extruders.
