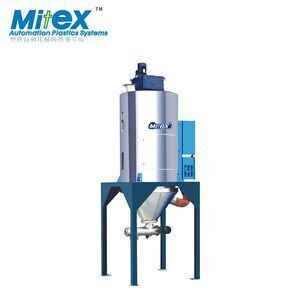

high quality closed-loop industrial PET crystallizer equipment

Product details
Heater ( Kw):18;Port:shenzhen;
Supply Ability:10 Set/Sets per Month;Power:380V 3PHASE 50HZ;
Power(W):18kw;Brand Name:Mitex;
Voltage:380V 3phase;Place of Origin:Guangdong China;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Motor (Kw):1.5;
Capacity (Kg/hr):150;Warranty:1 year;
Certification:CE;Condition:New;
After-sales Service Provided:Engineers available to service machinery overseas;Packaging Detail:wooden case packing PET crystallizer equipment;
Weight:500KG;Dimension(L*W*H):1220x950x2760mm;
Volume (kg):300;Blower (W):320;
Name:high quality closed-loop industrial PET crystallizer equipment;Application:PET flakes Crystallization;

high quality closed-loop industrial PET crystallizer equipment

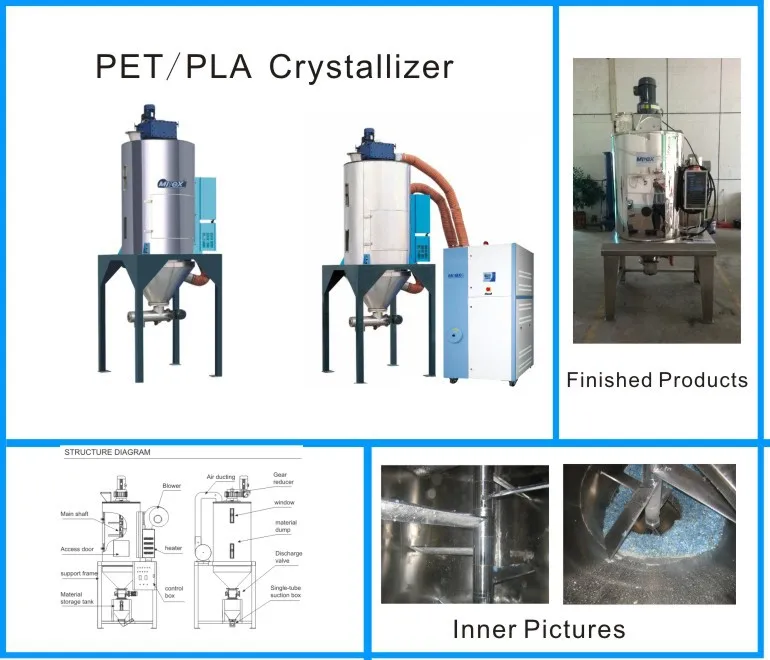

Introduction of crystallizer

MCR closed-loop crystallizers are used for constant crystallizeation of uncrystallized PET regrinds or pellets, Processed materials can then be dried and dehumidified directly. Crystallized materials can be conveyed to material storage bin or into drying hopper.



+
Features of crystallizer

Fixed speed of agitator makes material not lump together during the crystallization.



High efficiency and even crystallization.



Simplify and improve drying efficiency.



Materials can be dried under high temperature by using standard hopper.



Can be used with dehumidifiers for direct processing



Cyclone dust collector is standard, which is applied to dust-rich place. Can effectively reduce the load on air -return filte and extend the life of the filter to reduce the number of times of filter cleaning.



Safe design, access doors  and removable Conesection have safety interlocks make cleanout conveniently.

Relible, high-quality material output, scientific structure&design.



+
Specifications of  crystallizer



MODELMD-  HCR100MD-HCR300MD-HCR-600MD-HC1000MD-HCR-1500
Volume (Kg)10030060010001500
Motor (Kw)0.251.11.51.52.2
Blower (Kw)0.552.235.511
Heater (Kw) 1224486868
Capacity(Kg/hr)50150300500750
Dimensions(mm)mainframe(L*W*H)91x12085x150130x170150x170165x230
control system (L*W*H)  66x14576x14576x14576x145
Net weight(Kg)23050086012601750







+

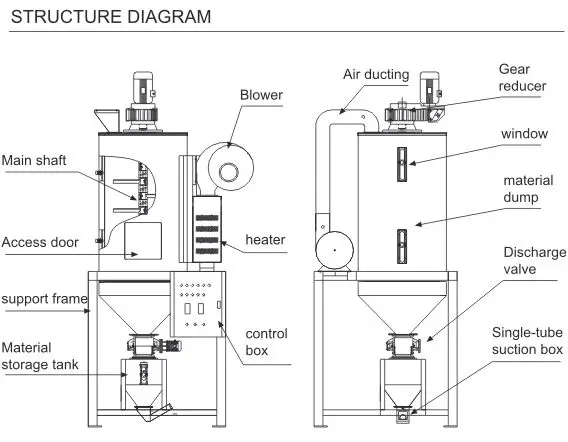

 Structure Diagram







+

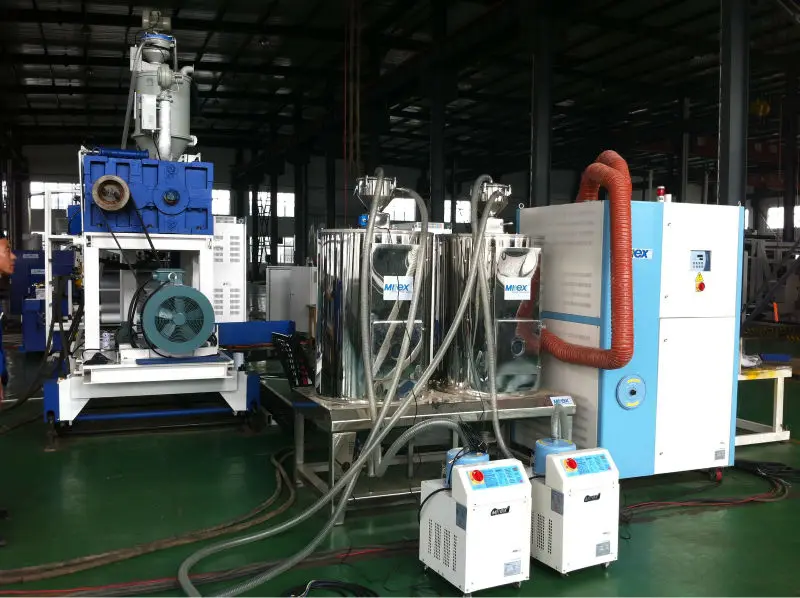

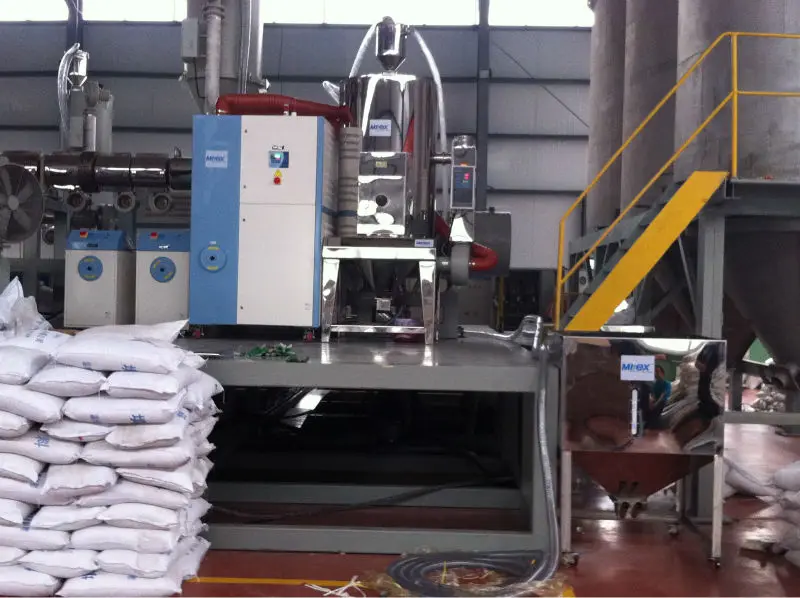

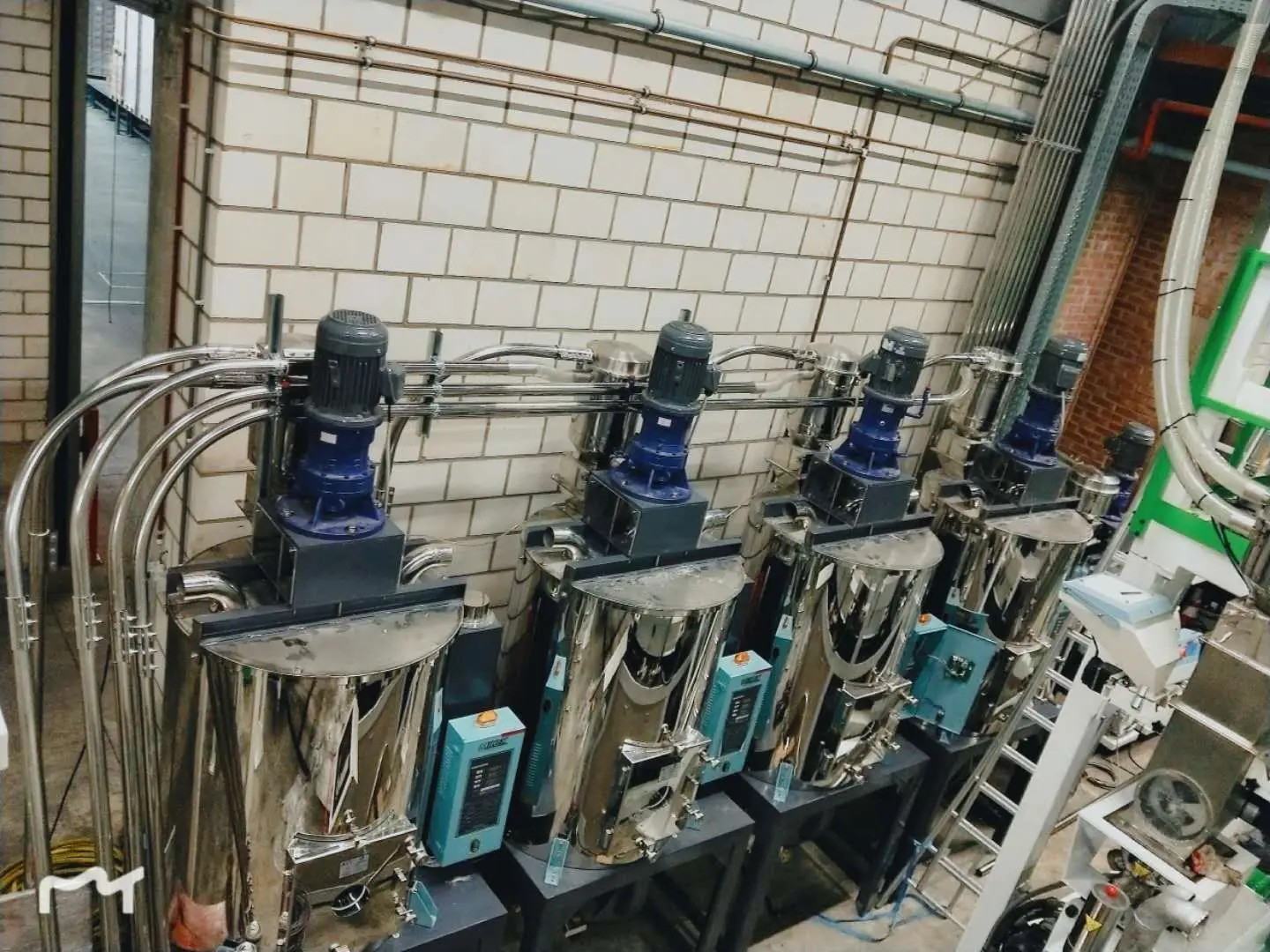

Customer Cases
