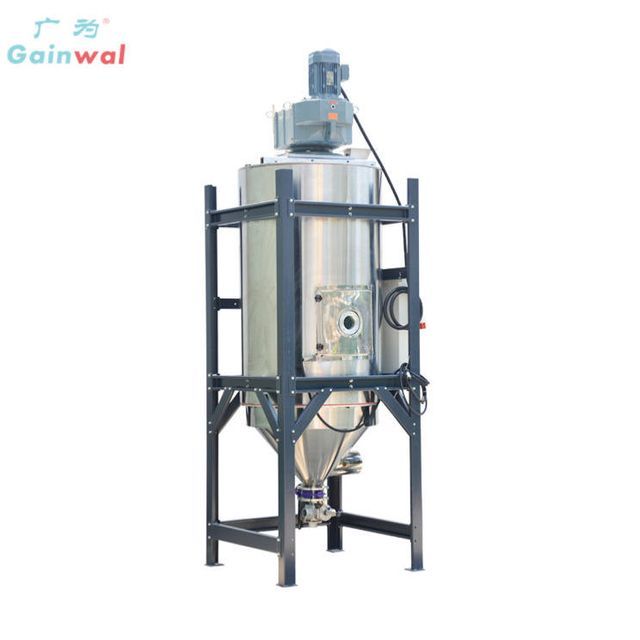

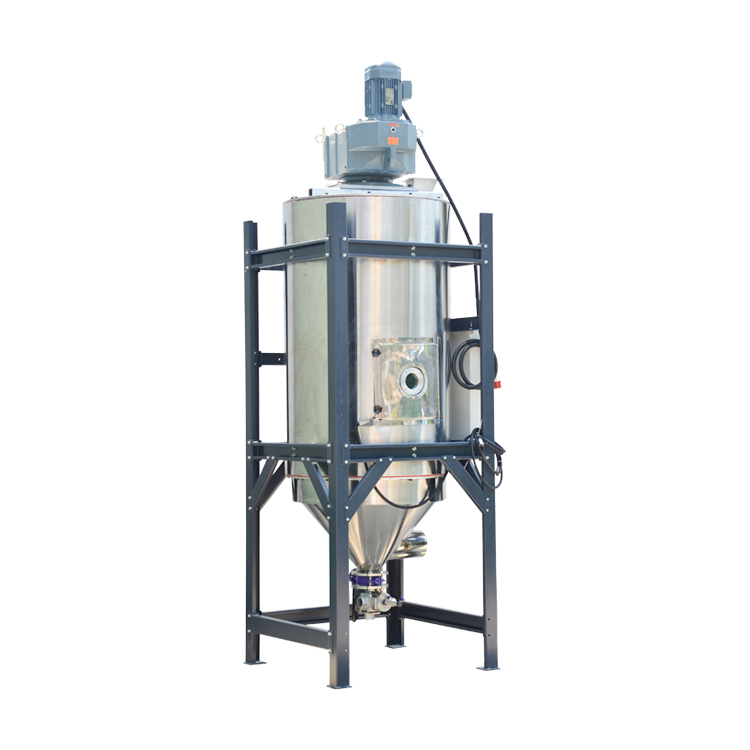

Gainwal PET Crystallization Dryer

Supplier: Guangdong Gainwal Automation Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Winnie Wen
Price: $16600.00 / 1 - 4 pieces
$16400.00 / 5 - 9 pieces
$16000.00 / >=10 pieces
Min. Order: 1 piece

Click here to contact

Product details

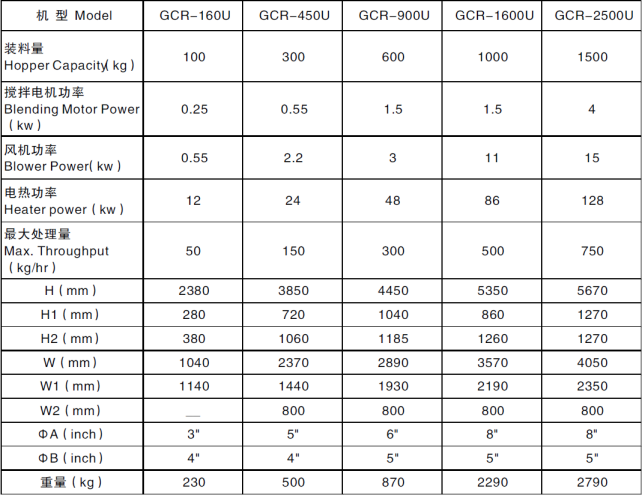

Marketing Type:	Ordinary products	capacity:	300 kg
Health Condition:	New	Brand Name:	Gainwall
Function:	Vacuum crystallization	Exhibition Hall Location:	No
aspect:	237014403850mm	Blower:	2.2 kW
Heater:	24 kW	Sales Unit:	Single item
Dimensions (LWH):	237014403850mm	Core component warranty:	1 year
Mechanical test report:	not available	application:	industry
Key selling points:	Energy saving	Origin:	Guangdong, China
Gross weight per piece:	500.000 kg	Product Name:	Industrial crystallizer equipment
Single packing size:	237X144X385 cm	Voltage:	380 volts
Video factory inspection:	not available	Warranty:	1 year
Core components:	engine	Applicable industries:	Manufacturing Plant, Other, Injection Molding, Extrusion, Blow Molding
Motor power:	1.5 kW	weight:	500
Maximum throughput:	150 kg/hour	strength:	24000
Weight (kg):	500

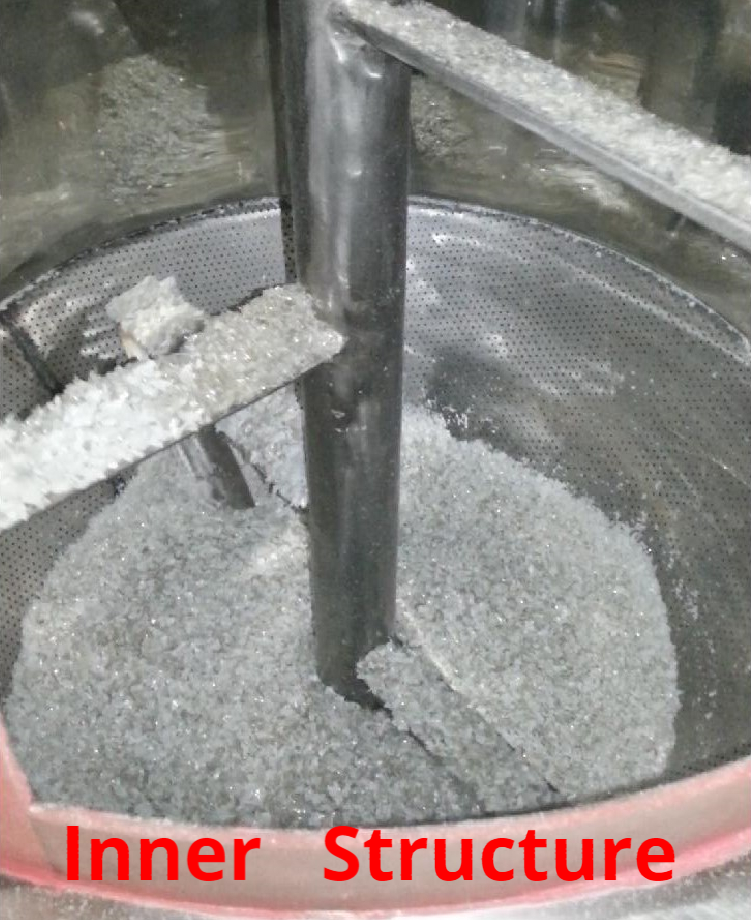

GCR closed-loop crystallizer is used for continuous crystallization of uncrystallized PET recycled materials or pellets. The processed materials can be directly dried and dehumidified. The system mainly consists of heating elements, insulation hoppers and stirring spiral mixing devices. After the uncrystallized PET material is fed into the hopper, the system startscrystallizationThe agitator starts mixing to prevent lumps and the crystallized material can be conveyed to a storage silo or into a drying hopper.

feature

1> The agitator is set at a constant speed to prevent the material from agglomerating during the crystallization process. 2> Simplify and improve drying efficiency. 3> The material can be dried at high temperature to improve drying efficiency. 4> Equipped with a double overheat protection device to reduce the possibility of mechanical or human failure. 5> Equipped with a manual unloading valve. 6> Equipped with a material level switch to accurately detect the material level and make the operation reliable.

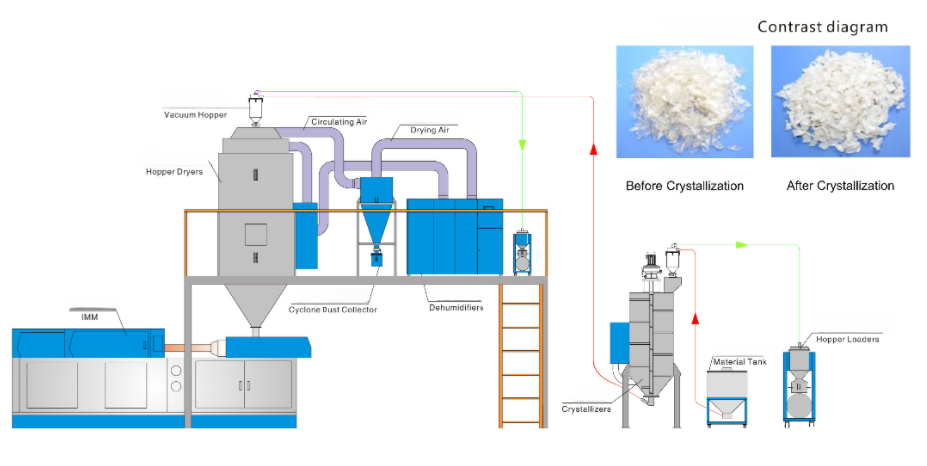

The GCR series crystallizers are used for continuous crystallization of amorphous materials such as PET, TPU and PLA. Recycling is becoming increasingly important from a cost and efficiency perspective. In order to avoid agglomeration of the recycled PET material at temperatures up to 180°C, the GCR series crystallizers should be used before the drying process. The agitator hopper is equipped with a high-performance drive motor. The amorphous material in the hopper is kept in motion at a controlled temperature until the crystallization is completed and can then continue to be further processed.

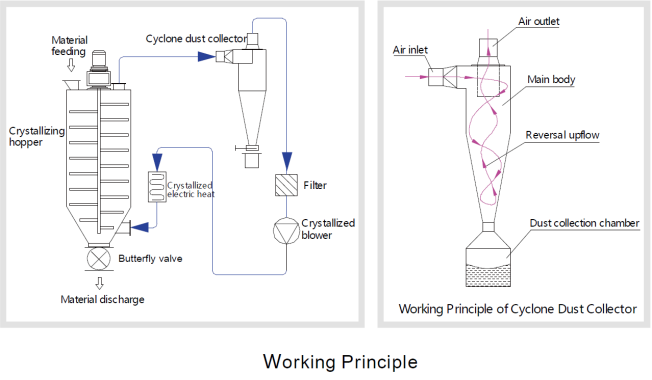

Once the feeding starts, the heating fan starts to heat the material. When the feeding amount is higher than the material level switch, the control cabinet stops sending signals to the feeder. Then the material continues to be heated for a period of time. When the temperature control needle detects that the set crystallization temperature value has been reached, the material is transported out through the feeding device; at the same time, as the material level in the hopper gradually decreases, the feeding device starts to supply uncrystallized material to achieve a continuous crystallization process. When the temperature control needle detects the temperature value at which feeding stops, the feeding device stops. If the temperature rises again and reaches the set crystallization temperature, the feeding device starts to work, and this cycle is repeated to achieve a continuous crystallization process.

PET characteristics

PET materials are widely used in textile fibers, food and chemical packaging, tapes, industrial lines, heat-resistant tableware, etc. Due to their high water content, they are prone to bubbles and cracks. In response to this drying demand and the development of the plastics industry, we provide a series of safe and reliable drying and dehumidification technologies for PET molding and other PET product manufacturers.
PET systems have powerful technologies to meet various application requirements.

◆Bottle making and blank making
◆Thermoforming film and sheet manufacturing
◆Manufacture of strapping tape and industrial wire
◆Tube making
◆Waste recycling
