Best Price Automatic Ambient Vacuum Industrial Evaporator Equipment Crystallization

Product details
Function:environmental protectionMaterial:stainless steel 316
strength:9 kWMarketing Type:New Products 2020
Operating temperature:5-40Gross weight per piece:1000.000 kg
After warranty service:Video technical support, online support, spare parts, on-site maintenance and repair servicesPackaging Details:Wooden case or customized. Vacuum industrial evaporator equipment price
Single package size:200X100X150 cmApplication industry:Food and pharmaceutical industry
Sales unit:single productVoltage:380V
Applicable industries:Manufacturing plants, machinery repair shops, food and beverage plants, construction works, energy and mining, advertising agenciescapacity:100-10000L/hour
Package preview:Main selling points:high productivity
After-sales service provided:Video Technical SupportLocal service location:Peru, Chile, South Africa
Core components:PLC, motor, pressure vessel, water pumpThe main purpose:industrial distillation
product name:milk evaporatorbrand:long hope
Core component warranty:1 yearMechanical test report:if
Vacuum degree:0.095-0.097MpaName:Evaporator for high-efficiency processing of fruit juice and milk food
Showroom location:Peru, Chile, South AfricaHealth status:new
Video shipment inspection:ifOrigin:Jiangsu, China
weight:1000KGDimensions (L*W*H):2x1x1.5
Warranty:over 5 yearsCertification:International Organization for Standardization
type:automatic evaporator
Product Description

The low temperature heat pump vacuum evaporator has developed different equipment models according to different customer requirements and different use environments.


The V-HP-TF series evaporator uses a compressor to act on the refrigerant. The refrigerant exchanges heat with the material through the heat exchanger, and the system comes with cooling liquid provided by the cooling tower. The system is suitable for areas with low annual temperatures and short summer periods.


The main feature is that it occupies a larger area than other series of products, but the energy consumption is lower, and the equipment structure and control are relatively simple.

Model
Evaporation
(liter/hour)
Installed power
(kilowatt)
consume
(width/length)
aspect
(length x width x height meters)
V-HP-TF-061
45
14.5
100-130
2.0x0.9x2.8
V-HP-TF-120
110
32
80-100
2.3x1.2x3.0
V-HP-TF-240
216
50
80-100
2.5x1.6x3.2
V-HP-TF-380
336
77.3
80-100
2.8x1.8x3.4
V-HP-TF-485
440
105.7
80-100
3.0x2.0x3.6
V-HP-TF-1000
870
205
80-100
4.5x3.2x3.8

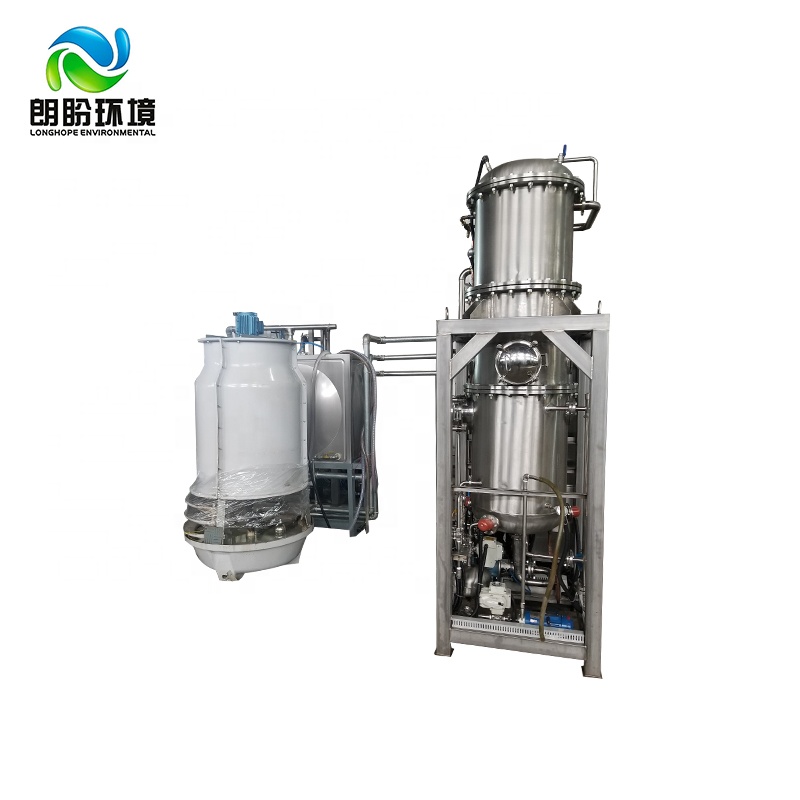

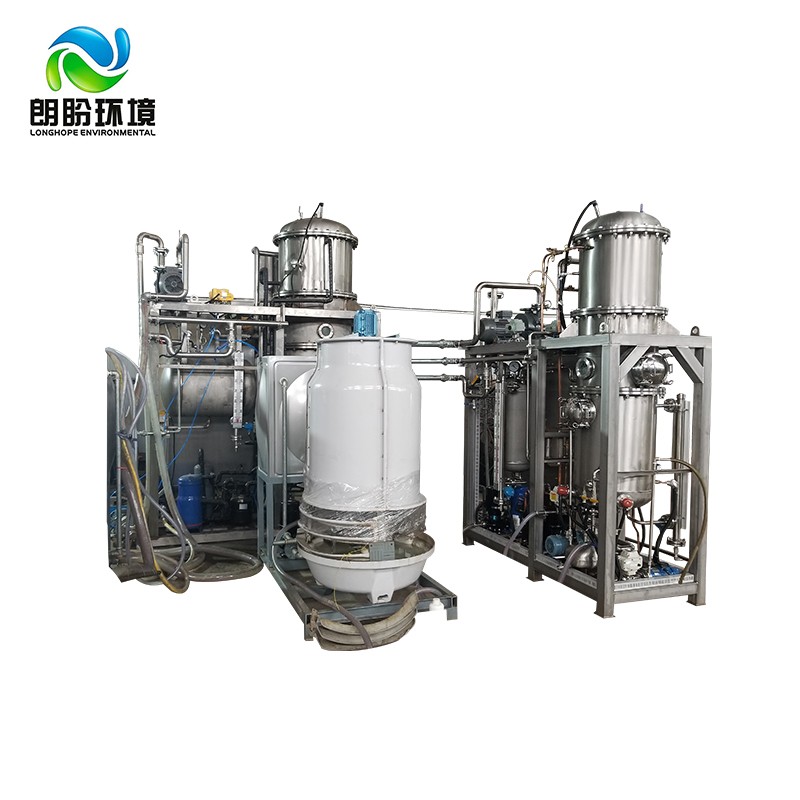

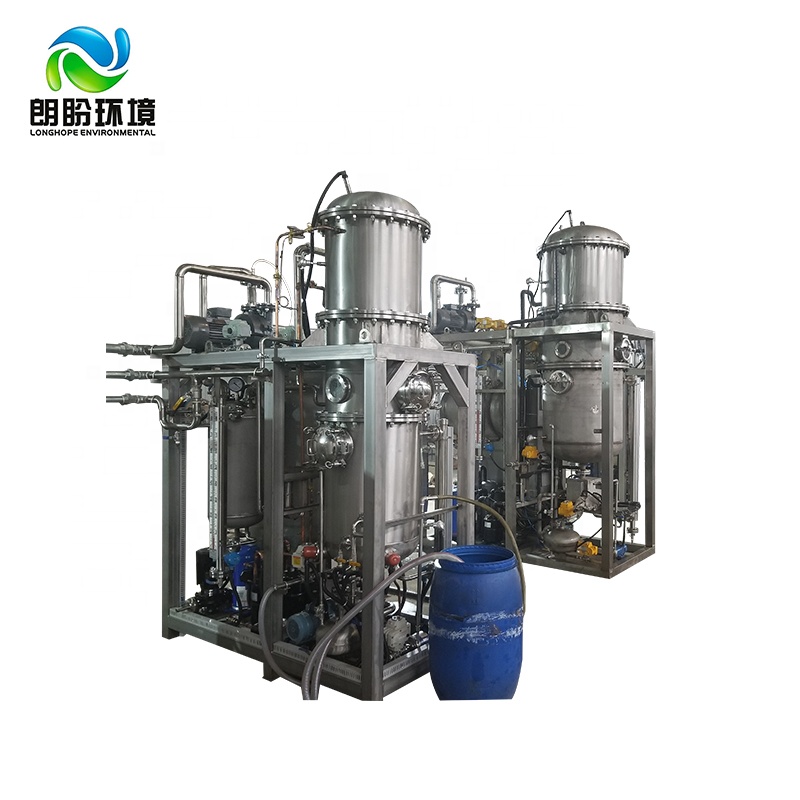

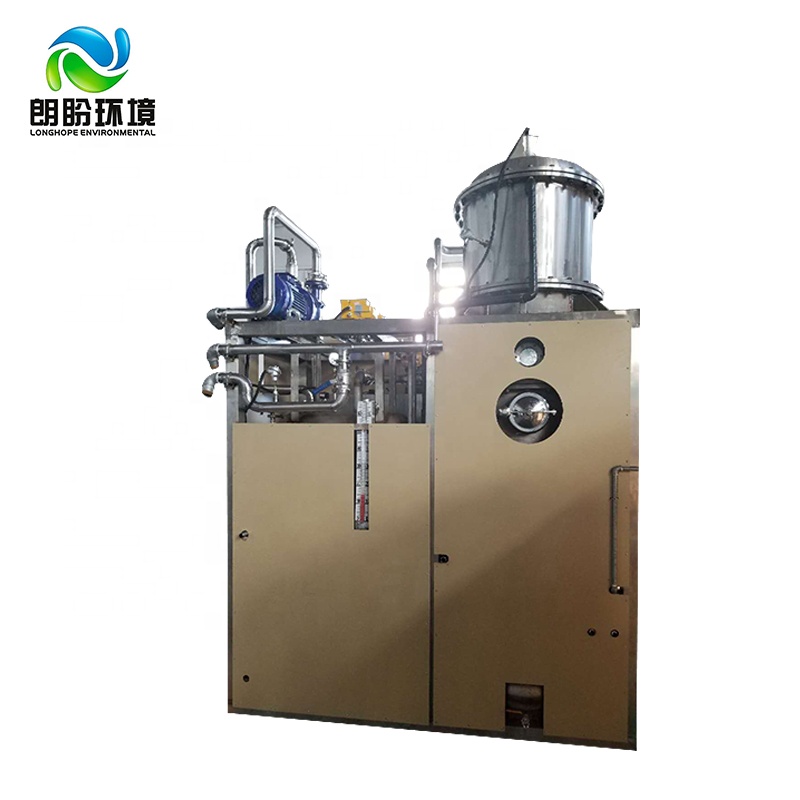

product display

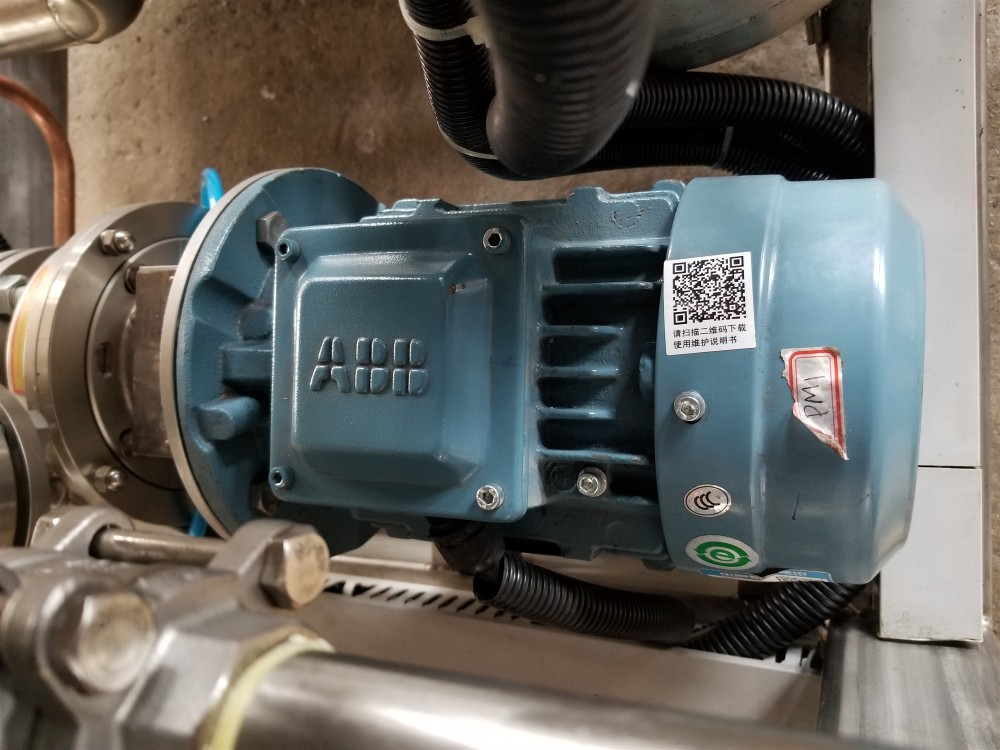

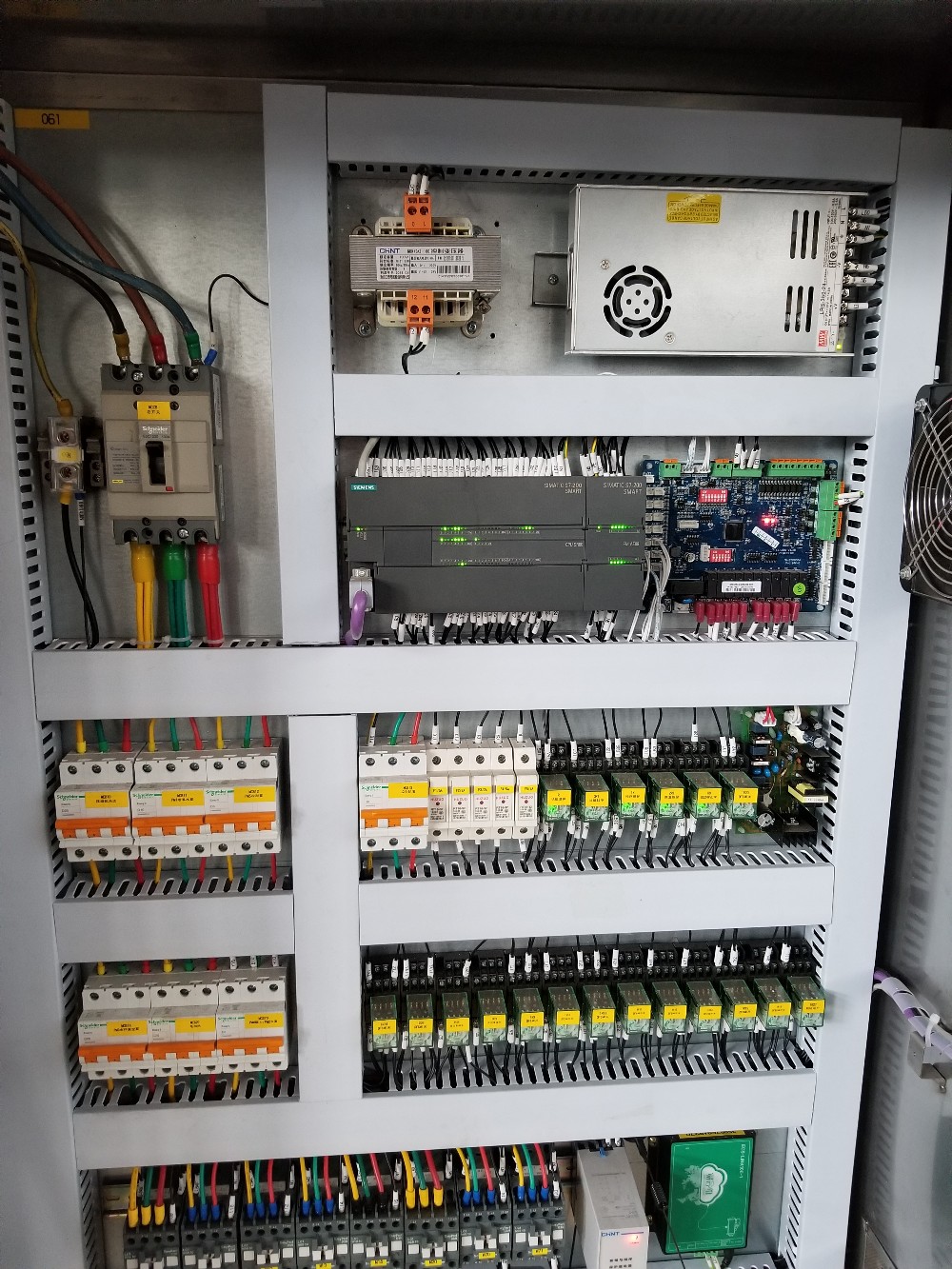

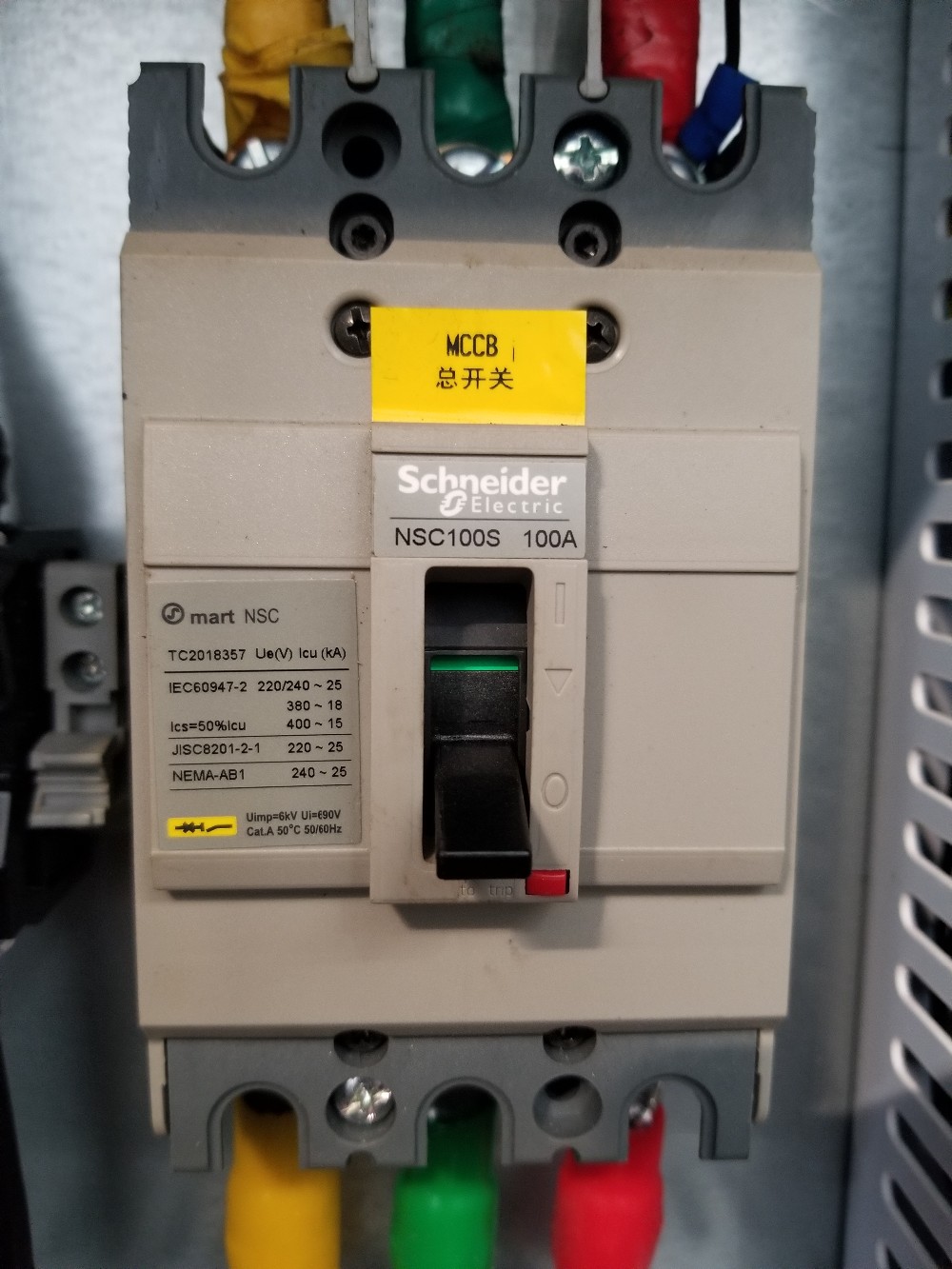

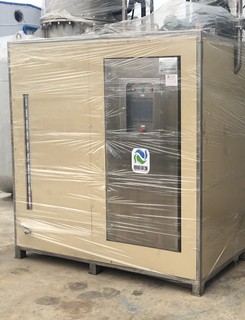

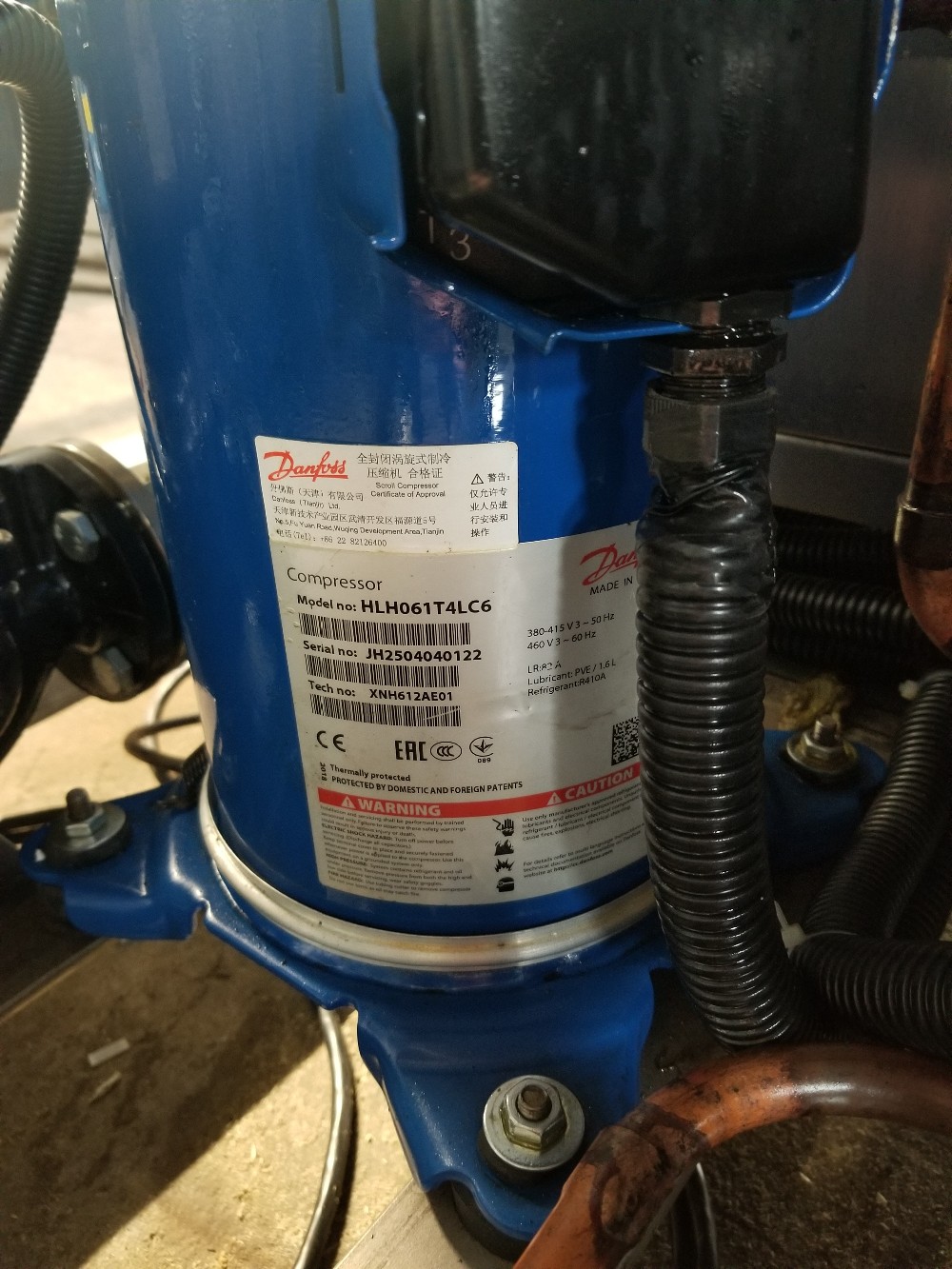

detailed image

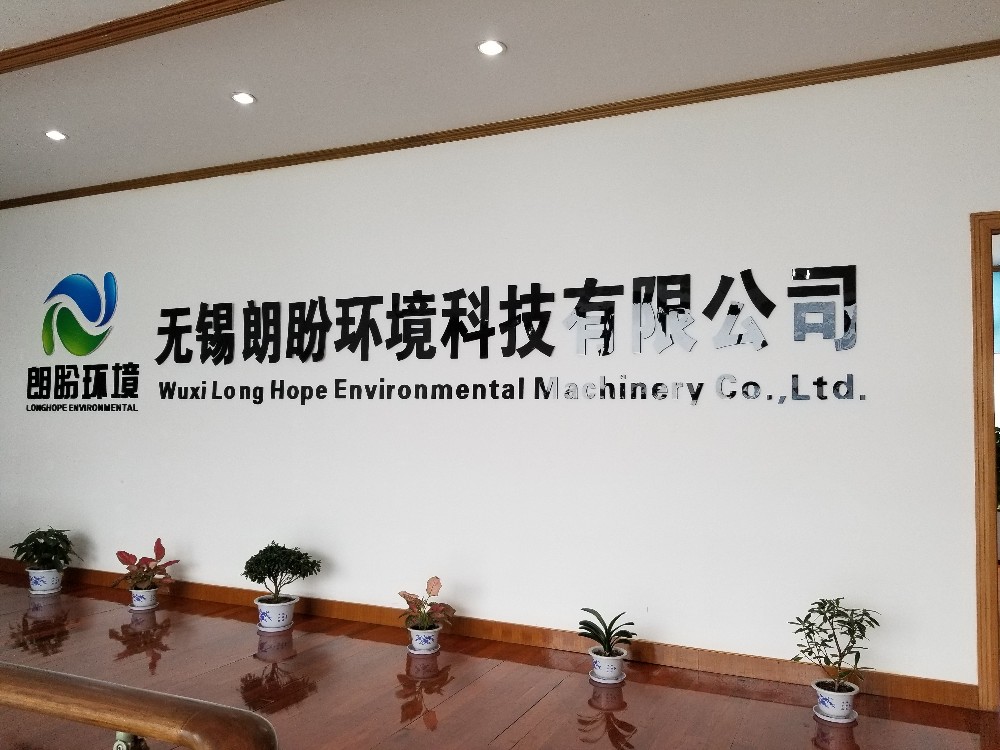

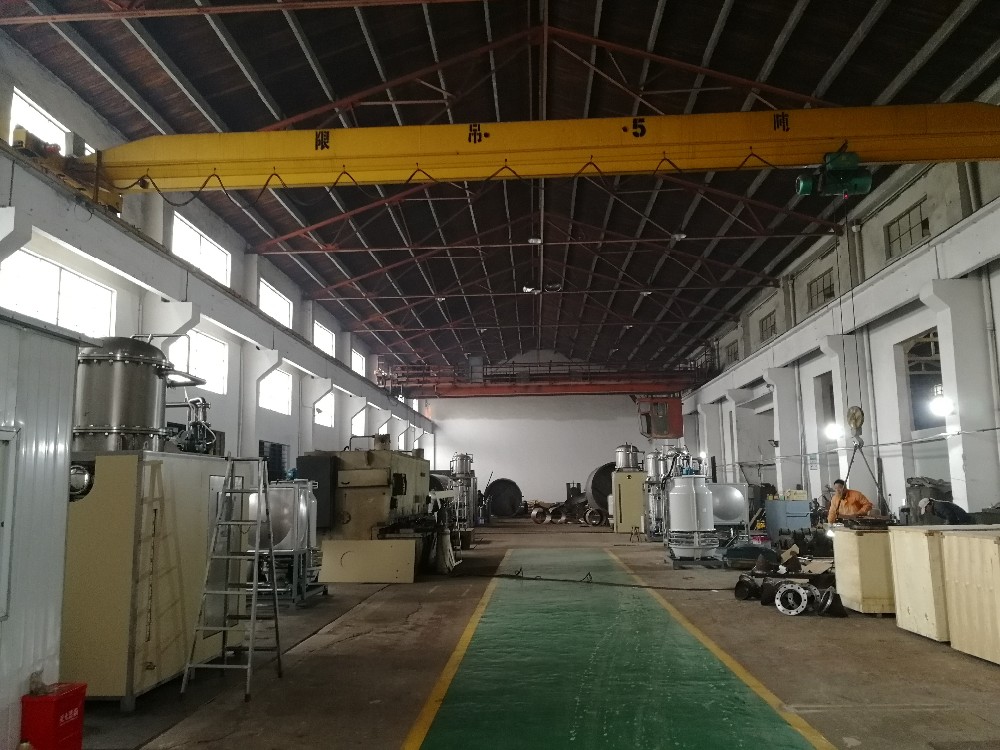

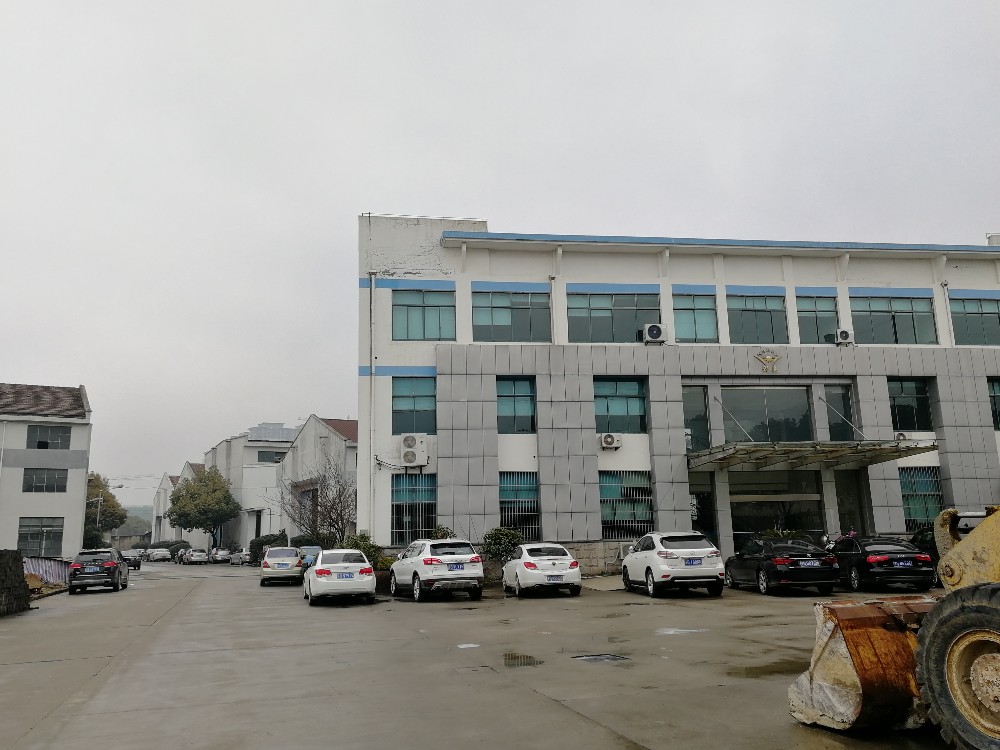

our company
Packaging and Shipping

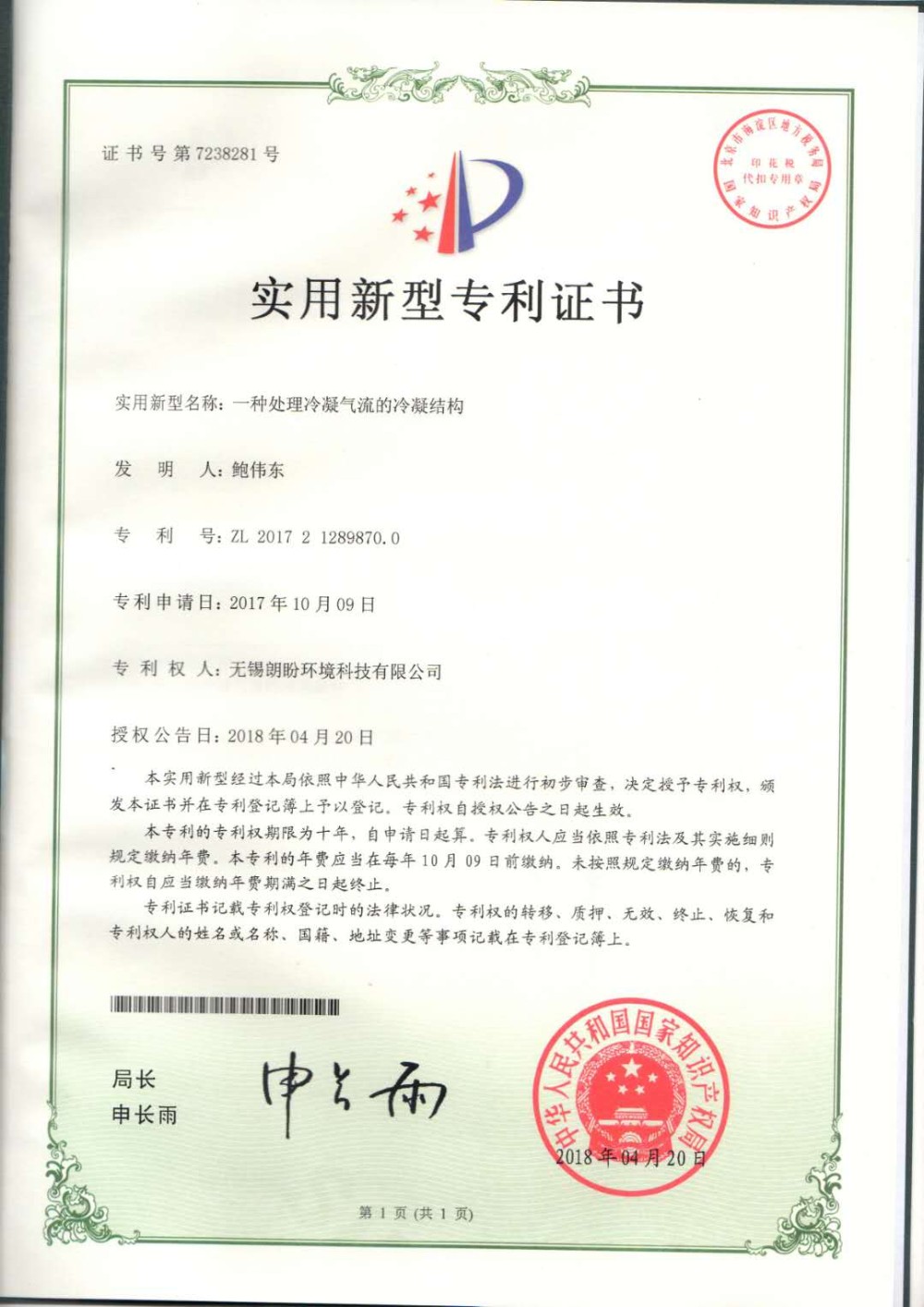

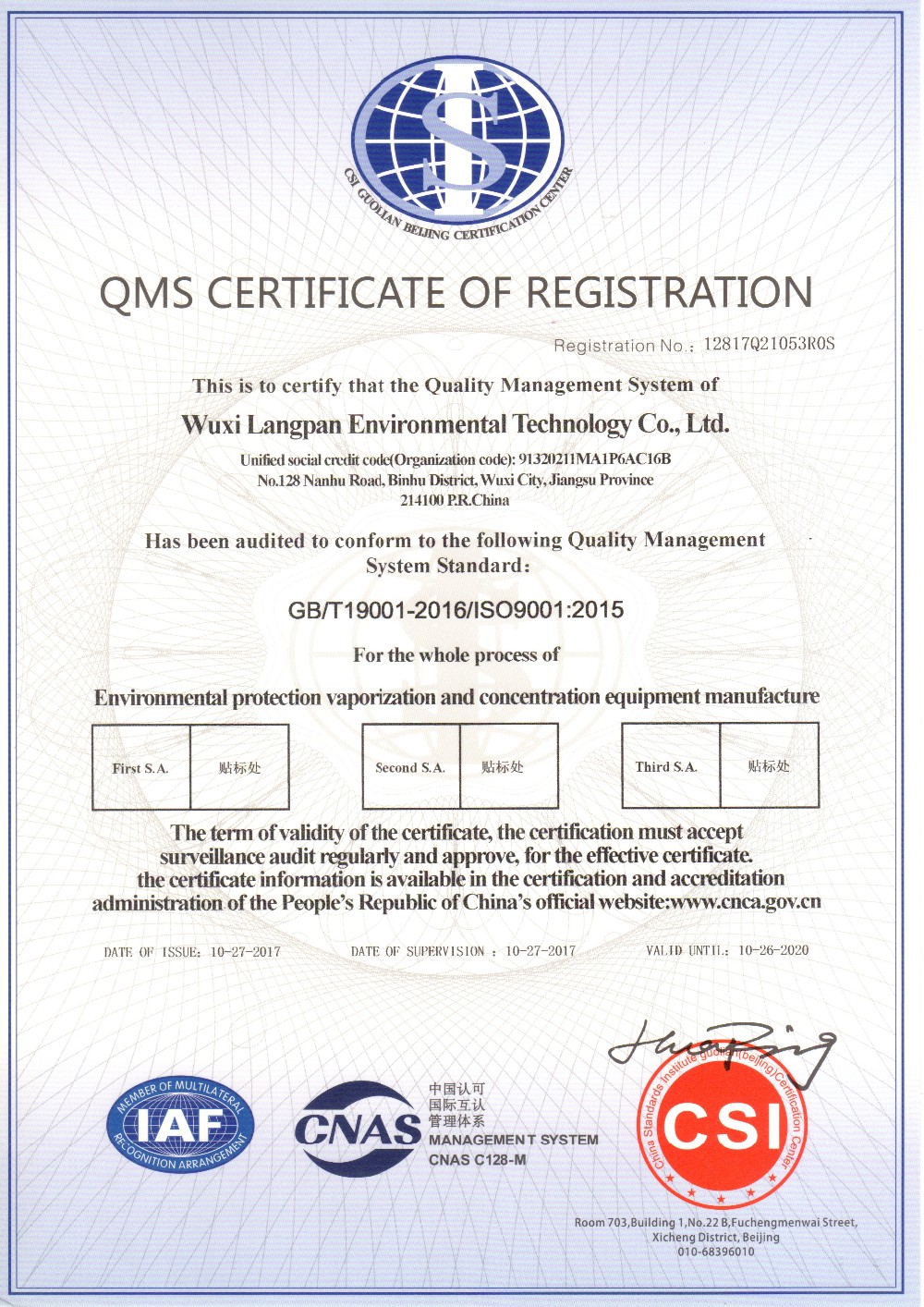

our certification
customer photo
FAQ

Q: Are you trading company or manufacturer?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 45 days if the goods are in stock. If not in stock, it is 60 days, according to quantity.
