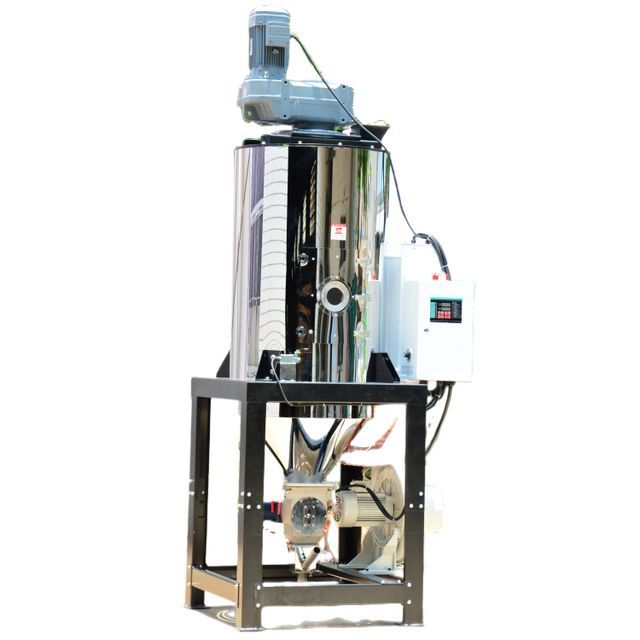

PET crystallizer crystallization reactor continuous stirred tank reactor crystallization equipment

Product details
Video outbound inspection:ifSingle pack size:119X129X300 cm
weight:230 kgbrand:Ganvor
maximum. Throughput:50kg/hoursize:1040*1140*2850mm
Warranty:1 yearApplicable industries:manufacturing plant
Origin:Guangdong, ChinaHopper capacity:100 kg
Packaging Details:plywood packagingHeater power:12 kW
Package preview:Blower power:0.55 kW
Showroom location:not anyMarketing Type:2020 New Products
Voltage:380V/50Hzstrength:0.25KW
Gross weight per piece:330.000 kgMain selling points:multifunctional
Core component warranty:1 yearDimensions (L*W*H):1040*1140*2850mm
Stirring motor power:0.25KWSales unit:single product
Weight (kg):230Mechanical test report:if
Core components:engine
crystallizer
application GCR series crystallizers are used for continuous crystallization of amorphous materials such as PET, TPU and PLA. Recycling is becoming increasingly important in terms of cost and efficiency. To avoid agglomeration of recycled PET material during drying up to 180'C, a GCR series crystallizer should be used prior to the drying process. The mixing chamber is equipped with a high-performance drive motor. The amorphous material in the box is kept in motion at a controlled temperature until crystallization is complete, after which further processing can continue.
work rules
feature
1:Metering screws are chrome-plated for durability.
2: The unit consists of standard modules that are easy to clean, disassemble and interchange.3: External signals can be directly input to the control box.
4: The current mode can be recorded without interruption due to power failure.
5: Forced material cleaning makes masterbatch replacement easier
6: Suitable for extruders, only a small amount of wire needs to be replaced
7: The rotating speed can be automatically adjusted according to the processing speed of the extruder to keep the masterbatch ratio constant.
8: 50 recipes are available for permanent recording of delivery time and finished product weight.9: Masterbatch blockage and overload can be detected, then the machine will stop and give an alarm.
10: According to customer needs, the mold cycle can be set, and additives can be added regularly to achieve micro-metering
Outline
PET characteristics
PET materials are widely used in textile fibers. Food and chemical packaging. Tape stripes. industrial thread. Heat resistant cutlery. Due to the high water content, air bubbles and cracks will occur. With this drying demand and the development of the plastics industry. Provide a series of safe and reliable drying and dehumidification technologies for PET molding and other PET product manufacturers. PET systems have powerful technologies to meet a variety of application needs.*Bottle and blank making*Thermoforming Film and Sheet Manufacturing*Manufacture of strapping and industrial yarn*control*waste recycling

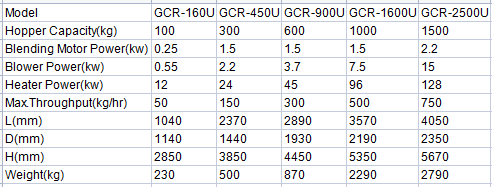

Specification
exhibition
Certificate
about Us
Guangdong Guangwo Automation Technology Co., Ltd. is a leading manufacturer specialized in plastic auxiliary equipment. We specialize in the production of plastic auxiliary equipment, the main products are: plastic dryers, dehumidification dryers, hopper dryers, plastic crushers, industrial chillers, hot air ovens, oil heaters, color mixing machines, automatic feeding machines, etc. Good quality and reasonable price. Our company has exported to Thailand, Canada, Italy, Malaysia and other countries. We believe that we will be your reliable China business partner. We welcome new and old customers from all walks of life to contact us to establish future business relationships and achieve mutual success!
Package
