Topacelab 50L 100L 200L crystallizer crystallization tank stainless steel jacketed reactor with SUS304 tank

Supplier: Shanghai Topace Scientific Instruments Co., Ltd.
Region: Shanghai, China
Contact: Ms Winnie Topacelab
Price: $15500.00 / 1 - 4 sets
$15000.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Mother liquor tank:	30 liters 50 liters 100 liters	Warranty:	1 year
Filter tank:	25 liters 40 liters 60 liters	Material:	Stainless steel 316+stainless steel 304
Filter plate:	50 microns	Marketing type:	normal product
Main selling points:	High productivity	product name:	Jacketed stainless steel crystallizer
Model:	predecessor	Health status:	new
Core components:	Motors, gears, pumps	port:	Shanghai, Qingdao, Tianjin, Guangzhou
Package preview:		brand:	Topology Lab
payment terms:	L/C, Western Union, T/T, MoneyGram	Weight (kg):	550
Applicable industries:	Food and beverage factories, farms, home use, food stores, food and beverage stores, others	Core component warranty:	1 year
Mixing tank:	50L 100L 200L	Video outbound inspection:	if
Packaging details:	1. The crystallization tank is packed in wooden boxes; 2. Both neutral packaging and customized packaging are available.	Supply capacity:	1,000 sets per month
Voltage:	110V; 220V; 380V; 460V	Showroom location:	USA
Mechanical test report:	if	Place of origin:	China Shanghai
strength:	2500

SS 50L 100L 200L crystallization tank filtration reactor stainless steel jacketed reactor with continuous tank

introduce

Overview

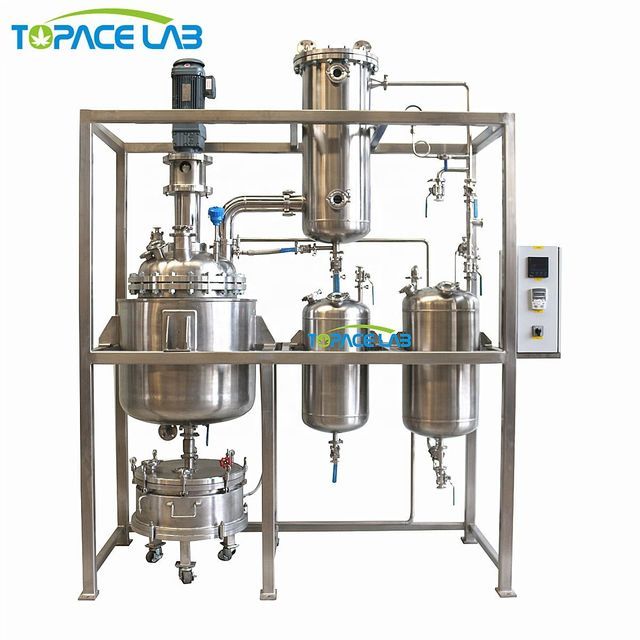

The crystallization kettle is mainly composed of the kettle body, stirring device, driving device, motor bracket, process nozzle, filter, condenser, mother liquor receiving tank, heating and refrigeration circulator and vacuum pump. The kettle body includes an inner cylinder body and a jacket body. The stirring device consists of stirring blades and stirring shafts, the form of which depends on the process design. The driving device is set up to drive the stirring device. It is mainly composed of a motor, a reducer, and a bearing seat. The driving mode is magnetic drive. The magnetic seal has the advantages of cleanness, quietness, and good sealing.

Technical principles

After the material is added to the crystallizer, low-temperature circulating liquid is injected through the jacket. The material is fully cooled and crystallized under stirring. The separated material enters the filter through the bottom valve of the kettle body, and the material filter cake is obtained through vacuum filtration. The mother liquor flows through the pipeline to the mother liquor receiving tube tank. After removing the filter cake, the mother liquor can be transferred to the crystallization kettle through the pipeline, and the heating function of the heating and refrigeration cycle is turned on to concentrate and distill the mother liquor. After concentration, the mother liquor can be recrystallized in a crystallizer and filtered to obtain the recovered product.

Explosion-proof model

UL model

Performance advantages and features

*crystallization kettle: The crystallization kettle is equipped with a heating and refrigeration circulator, which has the functions of melting, crystallizing and concentrating.

*filter: Jacket design and vacuum insulation can effectively improve the recovery rate of filtered products. Equipped with movable casters, it can be separated from the crystallization kettle after filtration, and the product filter cake can be moved out of the equipment. A 50μ filter is installed inside the filter plate. Used in conjunction with filter bags, product filter cakes can be quickly collected without product residue on the filter plate. Easy to clean.

*Mother liquor receiving tank: The mother liquor receiving tank and the crystallization kettle body are equipped with connecting pipes, and the mother liquor can be returned to the crystallization kettle through the pipes for concentration.

*Compact structure.

*Diversified functions: The equipment has functions such as crystallization, decarburization, filtration, and mother liquor concentration. Each function can be run continuously through the connection of process pipelines.

*Precise audience: This equipment is specially designed for the CBD industry. The process flow and operating temperature refer to the process flow in the industry.

2. System configuration.

*Modular design, easy to repair and maintain.

*many kinds of Observation window, easy to observe the material status.

*thisaccurateThe specifications of stainless steel filter plates can be customized.

*Ex controller and motor or UL controller and motor.

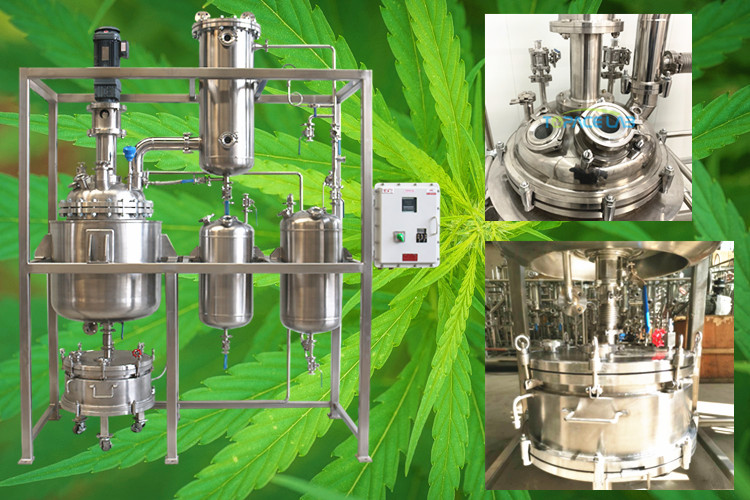

Detailed display

Main specifications

Model	SSFR-50L	SSFR-100L	SSFR-200L
Mixing tank	Net volume 50L	Net volume 100L	Net volume 200L
	The part in contact with the material is made of SS316 material; the rest is made of SS304
	Magnetic seal
	Stirring power: 750W, Frequency;	Stirring power: 1.5KW, Frequency;	Stirring power: 1.5KW, Frequency;
	The jacket is cyclically heated, with a 70mm insulation layer outside the jacket;
	1 pressure gauge and 1 temperature sensor each
	1 inlet, DN15, with 1 ball valve;	1 inlet, DN20, with 1 ball valve;	1 inlet, DN20, with 1 ball valve;
	1 gas protection port, DN15, with 1 ball valve;	1 gas protection port, DN20, with 1 ball valve;	1 gas protection port, DN20, with 1 ball valve;
	Jacket inlet and outlet DN25.	Jacket inlet and outlet DN25.	Jacket inlet and outlet DN25.
condenser	Heat exchange area 1m2	Heat exchange area 2m2	Heat exchange area 3m2
	Material: stainless steel 304	Material: stainless steel 304	Material: stainless steel 304
	Refrigerant inlet and outlet DN20	Refrigerant inlet and outlet DN20	Refrigerant inlet and outlet DN20
Filter tank and filter	Φ400×200mm(25L)	Φ500×200mm(40L)	Φ600×220mm(60L)
	50um filter plate + filter cloth (accuracy can be customized)
	Vacuum insulation.
	With observation window
collection tank	Capacity: 30L	Capacity: 50L	Capacity: 100L
	Material: stainless steel 304	Material: stainless steel 304	Material: stainless steel 304
	With observation window
Mother liquor tank	Capacity: 30L	Volume: 80L	Volume: 150L
	Material: stainless steel 304	Material: stainless steel 304	Material: stainless steel 304
	With observation window
control box	Explosion proofController and motor

Customer sharing

stock available

Packaging and shipping

1. Sea transportation, express delivery, air transportation, and car transportation are available for you to choose from. We will choose the best transportation method for you based on the actual situation of your goods.

2. We have a professional transportation team to solve all problems during transportation for you. All you have to do is wait at home to receive your shipment.

100% turnkey solution

full set

A complete set of crystallization kettle includes:

Kettle body; screening; mother liquor receiving tank and collection tank.

Grouped equipment:

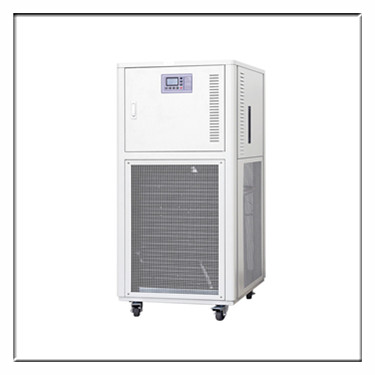

1. Circulation heater & chiller

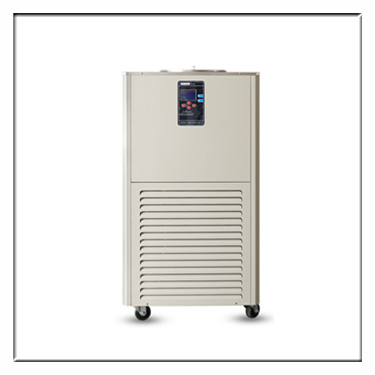

2. Circulating chiller

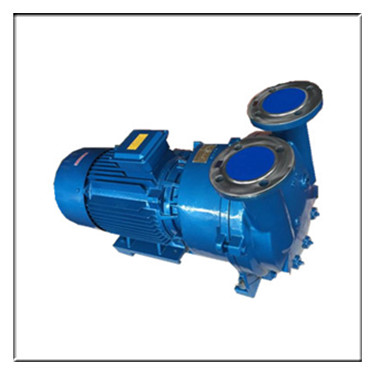

3. Vacuum pump

Once you receive them, you can use the system immediately, which is very convenient.

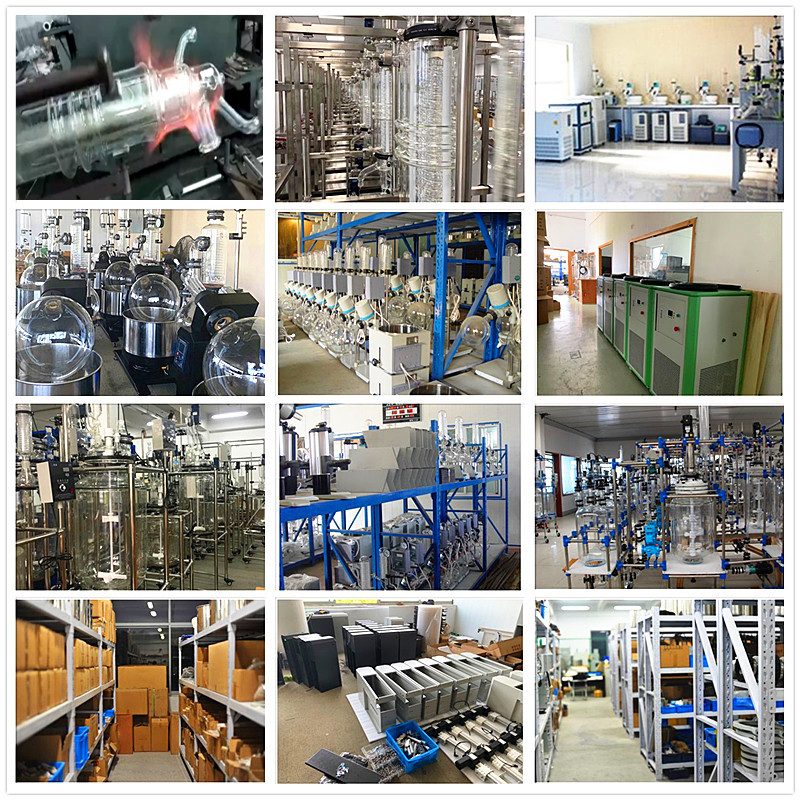

our company

Our advantage

1. Professional

We are a professional manufacturer specializing in design, production and sales. At the same time, we have obtained a number of patents and all of our products are constantly innovating.

2. Excellent quality, moderate price
With advanced technology and high-end equipment, all our products are manufactured with the highest quality. In order to ensure zero defect rate, we conduct quality control before shipping to customers. Based on our strong manufacturing and supply chain structure, we can provide customers with competitive prices.

3.OEM and ODM

We have a strong development team to support OEM and ODM services. Products can be made according to each customer's requirements.

4. Efficient and safe transportation

We have good cooperation with leading international shipping companies such as DHL/UPS/FedEx/TNT, providing various sea and air shipping options. After receiving the payment, we can ship the goods within 3 days, and it will take 4 to 6 days from Shanghai to your location via DHL Express.

Strict packaging process ensures the safety and integrity of the goods.

5. Excellent customer service
With over 30 years of expertise, our customers can expect a high level of satisfaction. We provide every customer with professional pre-sales, sales and after-sales services.

FAQ

Q1: Can you provide OEM or ODM service?

A1: Yes, we have a strong development team to support OEM and ODM services.We can provide all relativesds for customized servicesaccording to your requirements.

Q2: What is your MOQ?

A2: Any quantity can be accepted for your order. And the price is negotiable for large quantities.

Q3: What are your delivery terms?

A3: FOB/CIF/EXW, door to door, as you wish.

Q4: Warranty period, scope and conditions?

A4: 1.1 We provide one year warranty from the date of shipment from China. During the warranty period, we provide replacement and repair services due to quality problems.

1.2 Damage caused by transportation problems shall be borne by the seller.

Q5: How to solve your equipment problems?

A5: Please send us an email with questions, pictures or small videos would be better. We'll find the problem and tell you how to fix it. If there is damage, we will send you new parts free of charge during the warranty period.

Q6: How to ship replacement parts?

A6: We will choose the appropriate transportation method according to the actual situation. For small parts, we ship by express.

Question 7:Are you a manufacturer?

A7: Yes, our factory has been around for 30 years. Sincerely welcome to visit our factory at any time.
