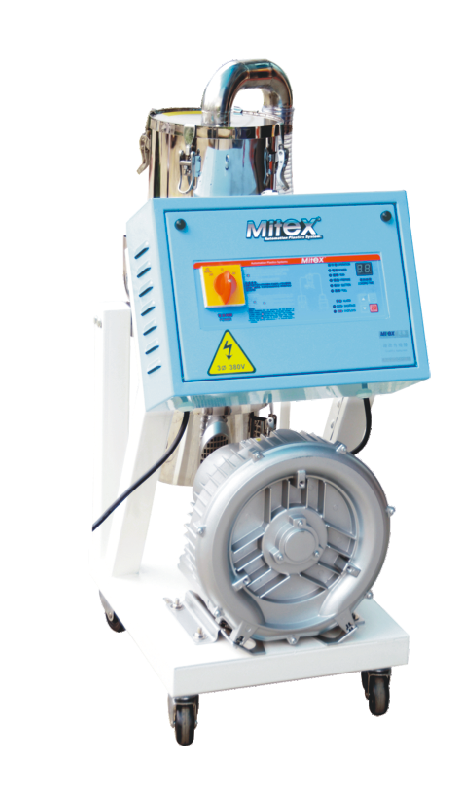

automatic hopper vacuum loader for plastic cartridges

Click here to contact
Product details
Connect the hose:8m 38mmVoltage:380V/50Hz/3phase
port:ShenzhenMotor Power:1.5HP
brand:MitexMarketing Type:Hot Products of 2019
Supply capacity:300 sets per monthplace of origin; place of origin:Guangdong, China
Function:automatic loadingMotor Type:induction motor
Health status:newDimensions (L*W*H):375x455x570mm
Delivery capacity:400 kg/hShowroom location:Indonesia
Core Components Warranty:1 yearAfter Warranty Service:Video technical support, online support, spare parts, on-site maintenance and repair services
Local service location:IndonesiaPackaging Preview:
Certification:Chief Executiveapplication:plastic material loading
Video external inspection:ifPackaging Details:Wooden case packing vacuum loader
payment terms:letter of credit, wire transferWarranty:1 year
Applicable industries:manufacturing plantCapacity (kg/hour):400 kg/h
Mechanical test report:ifCore components:motor
Loading Height:4mWeight (kg):45kg
Hopper receiver:7.5L
Product Description
Fully automatic programmed operation
Automatic alarm for overload or lack of material.
Stainless steel hopper structure
The main controller and the hopper are separated to ensure safety and convenience.
Separate filter installation for easy removal of accumulated powder
Automatic reverse cleaning filter
Up to 6 feeding stations are available.

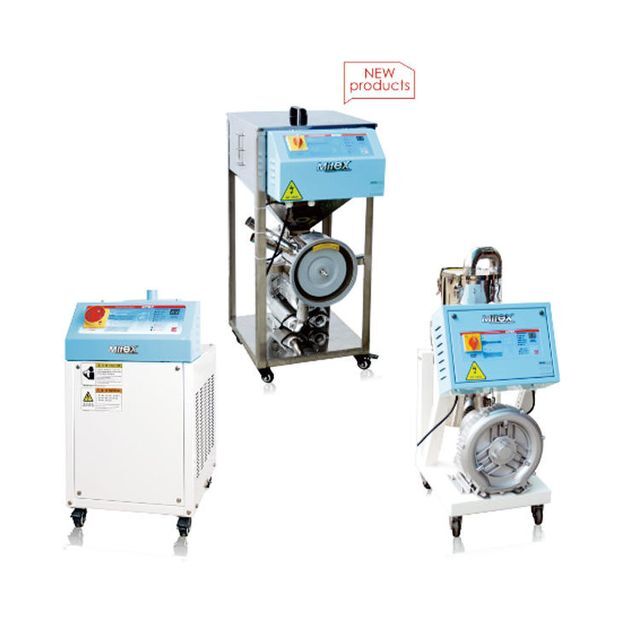

New product

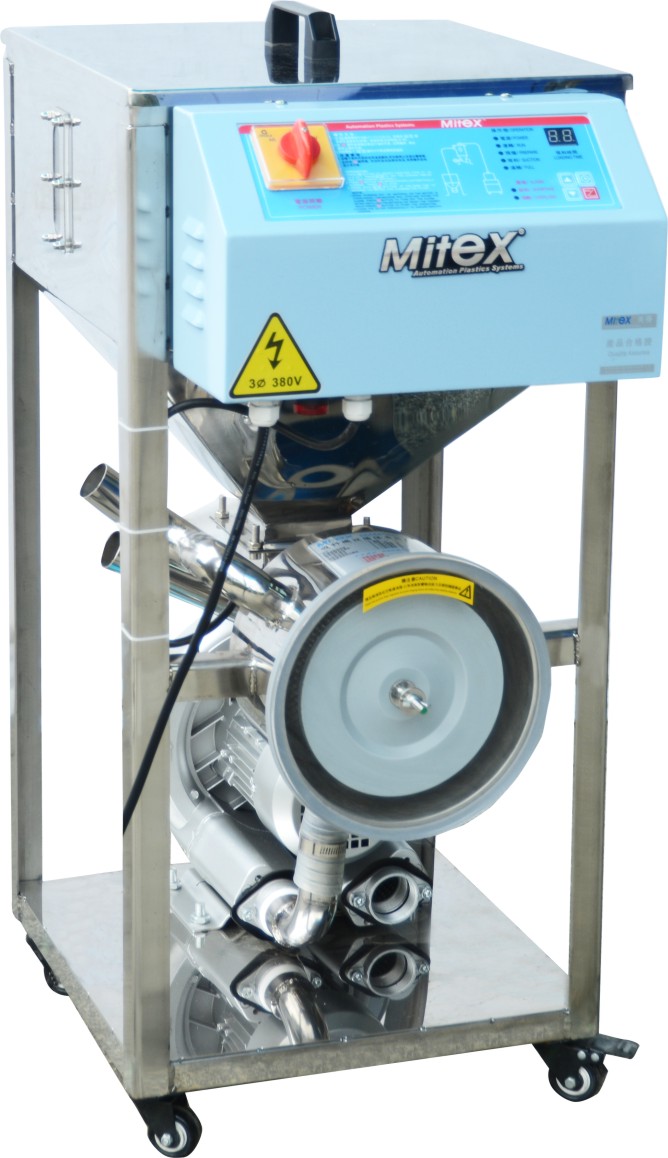

2 in 1: loader + storage tank
Tank volume: 25-50KG

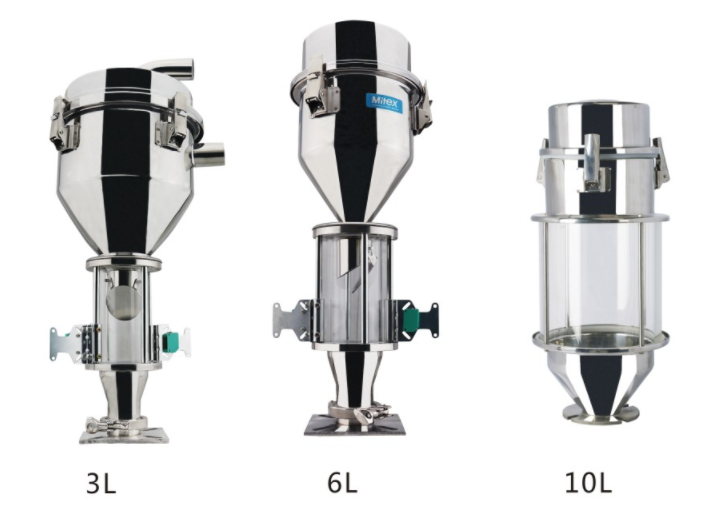

Induction Switch Hopper - SV
Equipped with photoelectric sensor

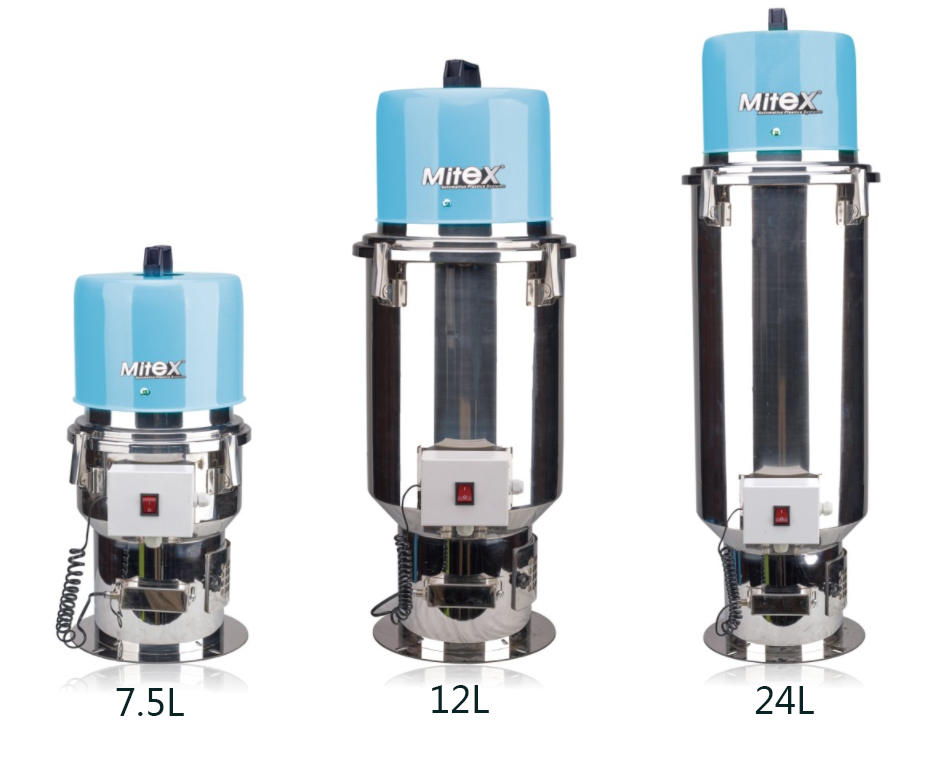

Hopper Receiver - MS-E
Magnetic sensor
detailed image
Product parameters
Model
MVL
T310
T515
800G
2HP
3HP
5HP
7.5HP
10HP
Power Specifications
AC380V three-phase 50HZ
Blower Type
Induction blower
Motor power (KW)
0.75
1.1
0.75
1.5
2.2
3.75
5.5
7.5
Conveying capacity (kg/h)
300
400
300
400
600
1200
1500
2000
Loading height (m)
4
4
4
5
5
6
6
8
Dimensions (cm)
45*60*102
48*64*112
37*45*70
37*45*70
48*60*121
48*60*150
48*60*150
48*60*150
Hopper receiving volume (L)








Model
SV-3L
SV-6L
SV-10L
SV-12L
MS-7.5E
MS-12E
MS-25E
MS-50E
recipient
3L
6L
10L
12L
7.5L
12L
25L
50L
Material diameter
1.5 inches
2 inches
2.5 inches
Suction pipe diameter
1.5 inches
2 inches
2.5 inches
Dimensions (cm)
35*20*75
33*23*50
30*30*53
43*35*72
40*40*50
40*40*93
40*40*105
54*54*105
Net weight (kg)
4.5
5
8
8
10
12
15
20
