Nut And Bolt Making Machine

Supplier: Hangzhou Candid I/E Co., Ltd.
Region: Zhejiang, China
Contact: Mr JiangWei Zheng
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Engineers available to service machinery overseas;	Warranty:	12months;
Port:	Shanghai port;	Supply Ability:	20 Set/Sets per Month Nut And Bolt Making Machine;
Condition:	New;	Nut And Bolt Making Machine Operation:	Semi or Full Automatic;
Nut And Bolt Making Machine Color:	Blue or Custmerized;	Model Number:	Nut And Bolt Making Machine;
Type:	Nut And Bolt Making Machine;	Payment Terms:	L/C,T/T,Western Union;
Nut And Bolt Making Machine Speed:	30-130 pcs/min;	Packaging Detail:	Nut And Bolt Making Machine covered by plastic film or in wooden case.;
Brand Name:	CANDID;	Place of Origin:	Zhejiang China;

Product Description

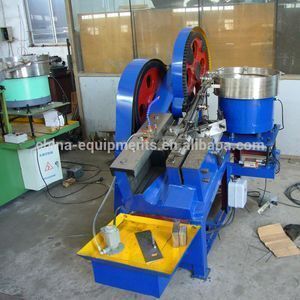

Nut And Bolt Making Machine

To produce bolt, two machines are necessary--Cold-heading Machine and Thread Rolling Machine

1. Cold-heading Machine

To cut raw material wire according to length of finished bolt and form bolt head.

Main Technical Parameter:

Model No	Dia. of Nail(mm)	Length of Nail(mm)
Z12-3	1.2-3	2-16
Z12-4	2-4	6-48
Z12-5	2-5	6-60
Z12-8	4-8	10-100
Z12-10	6-10	20-120
Z12-16	10-16	25-150

2. Thread Rolling Machine

To roll thread on blank shank of bolt after being cold-headed.

Main Technical Parameter:

Model	Dia. of Threading(mm)	Length of Threading(mm)	Length of Screw(mm)
Z25-4	2-4	6-25	6-25
Z25-5	2-5	6-50	6-50
Z25-6	2-6	6-60	6-80
Z25-6L	2-6	6-60	6-100

Besides the above two machines, another machine is optional---Edge Trimming Machine

3. Edge Trimming Machine

To make Hex. head after being cold headed.

Product Show

Packaging & Shipping

We choose the best domestic delivery and handle goods carefully, using necessary protections to keep the machines away from unexpected damages. We ensure that clients will get their satisfying machines.
