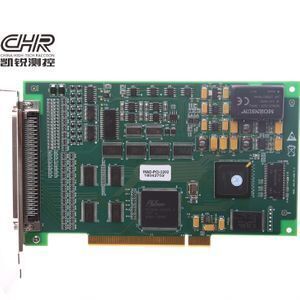

CHR 32 channels 250K Analog input/output & Digital I/O & Counter Multi-function DAQ card CHR43203/43303

CHR offer customized multi-function data acquisition cards with analog input function, analog output function, digital I/O function and counter function configurable according to projects’ requirements. CHR’s multi-function data acquisition cards are widely used in automatic test system construction, data acquisition and recording system and control simulation system development.. CHR43203/43303 is are multi-function data acquisition card including analog input, analog output, TTL digital input and output, timing counter. Their powerful function can meet different requirements of industrial measurement and automation control, and their good compatibility is applicable to various system configurations.

Analog Input:

* Channels:32 channels Single-Ended/16 channels Differential/Mixed

* Resolution:16 bit

* FIFO: 32M×32bit

* Sampling rate: 250Ksps

* Gain programmable: 1,2,4,8

Analog Output:

* 4 channels

* Resolution:16 bit

* Voltage output range:±10V

* FIFO :8K×32bit

* Slew rate:20V/uS

* Output Driving Capability:single channel 5mA

Digital I/O:

*48 channels TTL input/output

Counter:

*2 channels 32 bit

Others:

* Size(L×W×H):

CPCI 3U,160mm×100mm× 4HP,

  PCI  175mm×106mm.

* Connector: SCSI-100

* Temperature: -40℃~+85℃

* Relative humidity: Working 5~85%, No condensation

               Storage 5~95%, No condensation

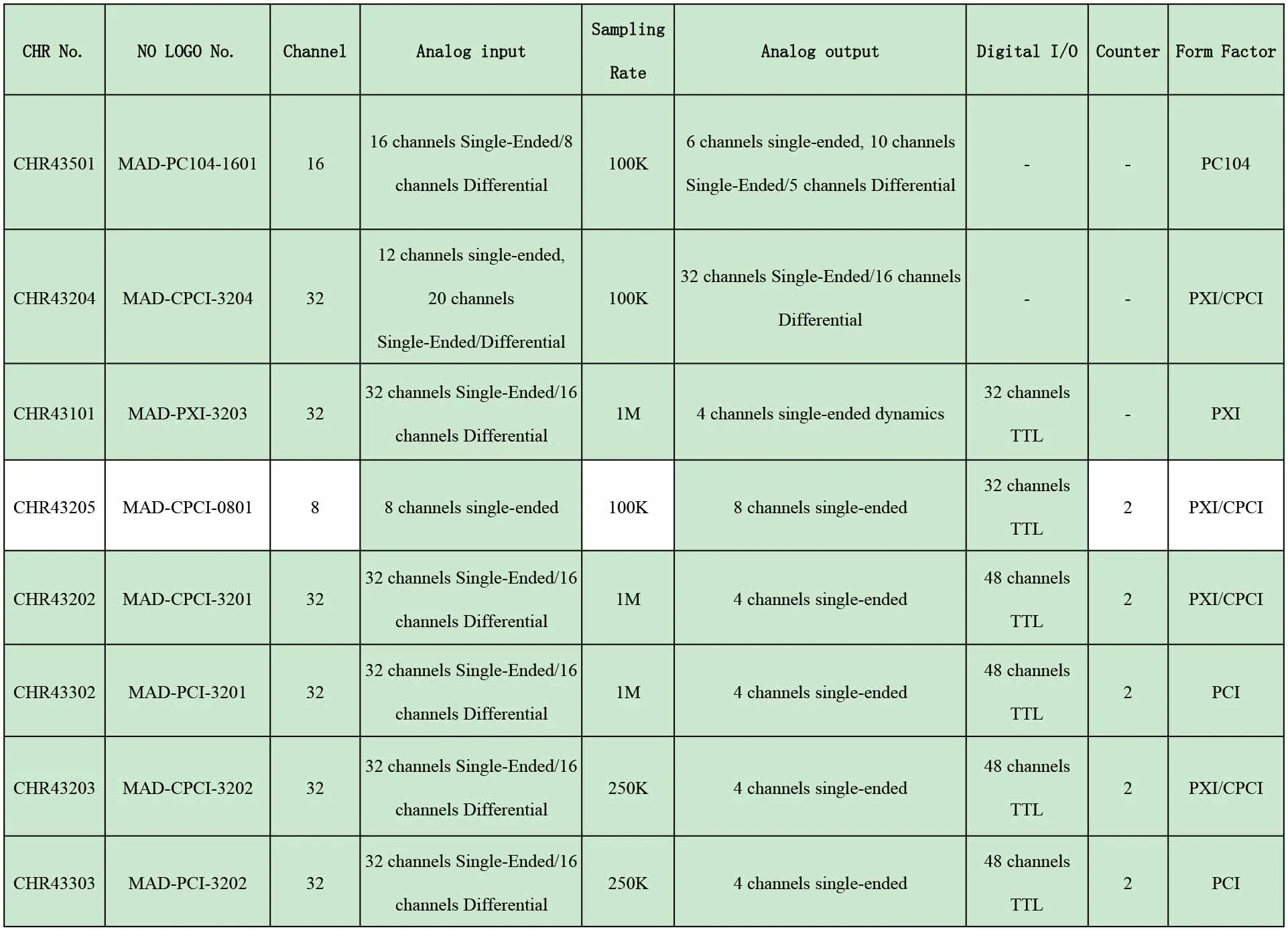

CHR Multi-function Date Acquisition Card part number:
