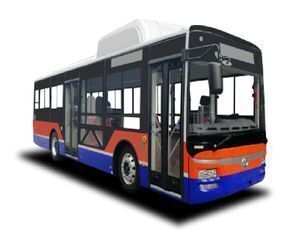

High Quality Sunda New Energy 10.5m Lithium Car Battery Pure Electric City Tourist Passenger Bus for Public Transportation

Supplier: Changsha Sunda New Energy Technology Co., Ltd.
Region: Hunan, China
Contact: Ms. Rita Liu
Price: $150000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	China;	Dimensions (L x W x H) (mm):	1050025503320mm;
Driving range:	475km;	Seats:	21 - 40;
Payment Terms:	L/C,T/T;	Nominal voltage:	576V;
Nominal capacity:	440Ah;	Fuel Type:	Electric;
Max Speed:	51 - 70 km/h;	Brand Name:	Sunda;
Battery:	Lithium iron phosphate battery;

High Quality Sunda New Energy 10.5m Lithium Car Battery Pure Electric City Tourist Passenger Bus for Public Transportation

Basic parameters	Body size length * width * height (mm)		1050025503320
	Curing quality (kg)	1,130,010,800		Approach / departure angle(.)		7.5/7.5
	Maximum total mass (kg)	18000		Minimum turning diameter (m)		22
	Front overhang / rear overhang (mm)	1920/1915		Wheelbase (mm)		5000
	Track front/back (mm)	2300/3200		Number of guests		92
	Maximum speed (km/h)	69		Step type		First step
Three-electric system	Electric drive system	Permanent magnet synchronous motor TZ2712XSB, rated power 75kw, peak power 100 kw
	Energy storage system	Lithium iron phosphate battery, total storage capacity of 253.44kwh, energy density: 141.25wh/kg
	Voltage platform	576V			Nominal capacity		440Ah
	Cruising range (equal speed method)	475km			Charging rate		1C
	Charging time	1.5h/657V			Charging mode		Slow charge

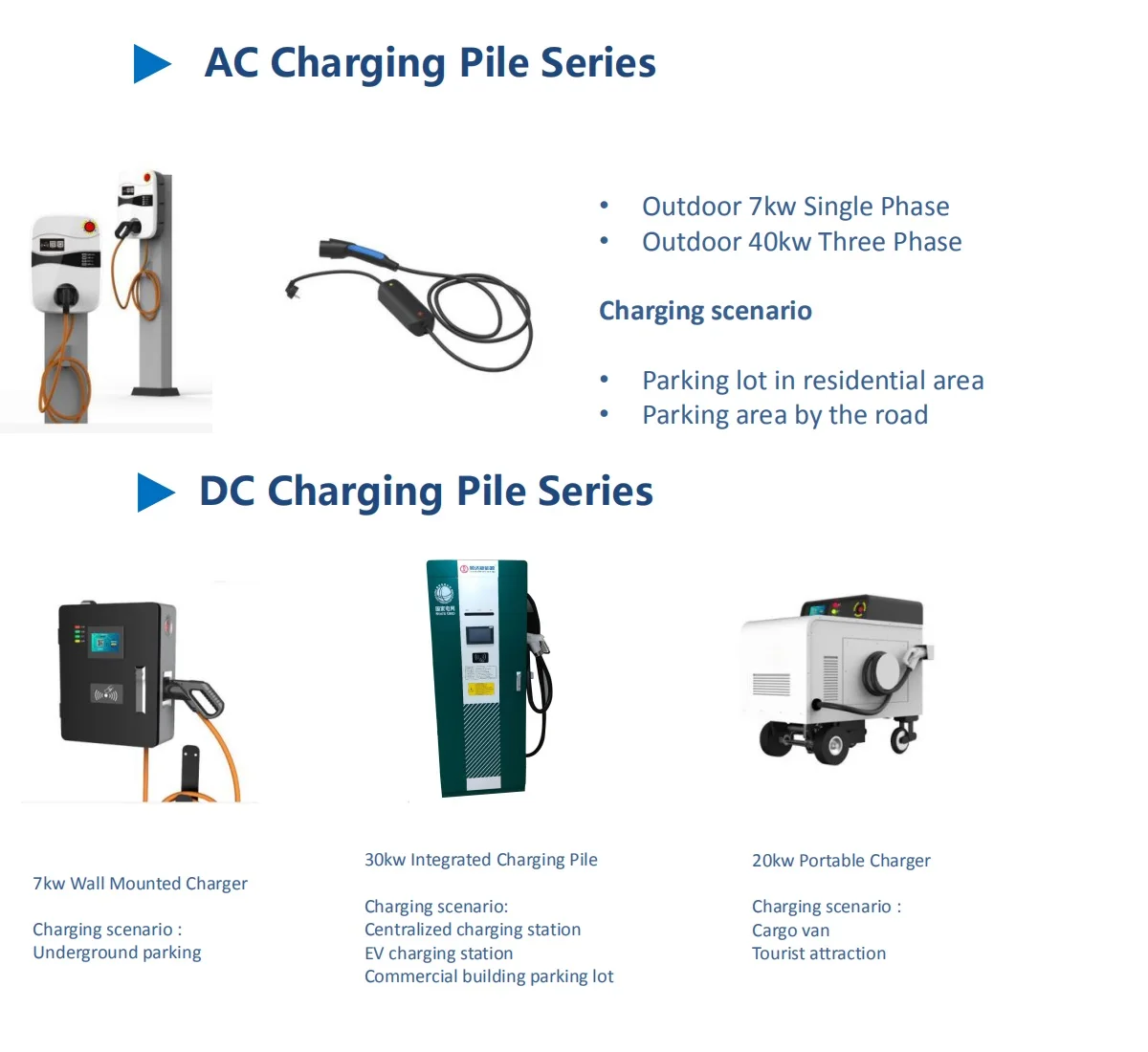

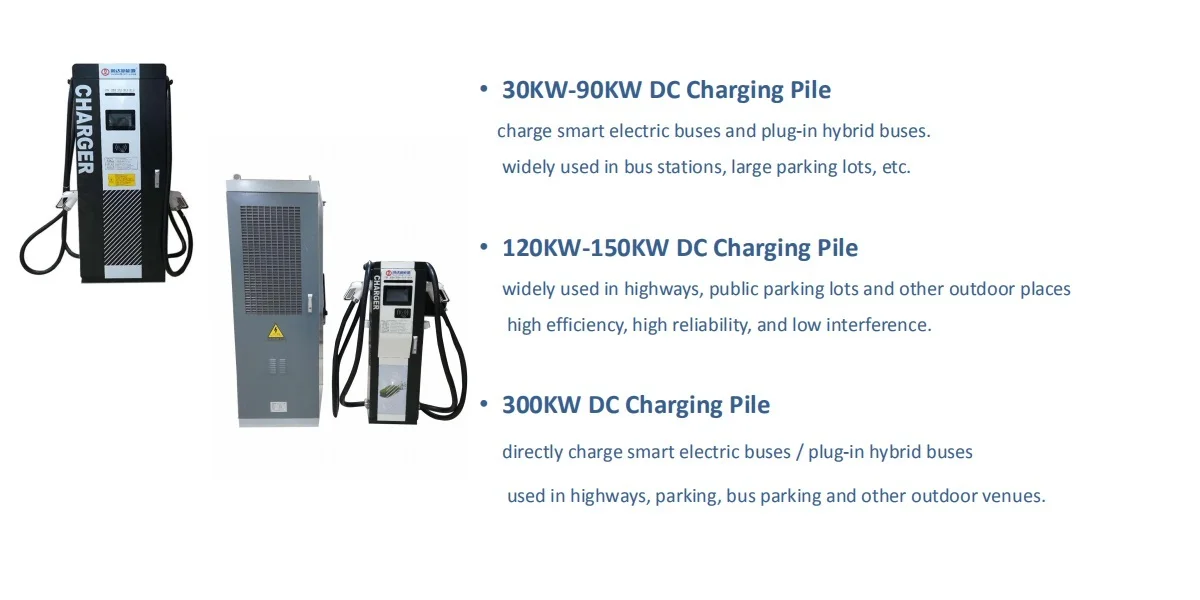

Sunda New Energy Technology Co., Ltd was established in September 2014 with a registered capital of RMB148.18 million, focuses on R&D and manufacture of EV power battery PACK, EV charging piles (AC&DC), construction and operation of charging station, energy storage and distribution of new energy vehicles.

Sunda New Energy is committed to research and develop the power battery Pack of electric vehicle , electric vehicle charging piles and distribution of new energy vehicles. We are the general agent of SHUDU Bus Company in both Hunan Province and South -East Asia. Sunda New Energy Huaihua Factory has an annual output of 20,000 sets of charging piles and 1GWH battery PACK, which is also a state-level high technology enterprise and a provincial green factory. We has successfully passed ISO14001, ISO9001, IATF16949 quality management system certifications. Meanwhile,we possess the independent intellectual property rights and the ability of sustainable research and development.And we built a long-term strategic cooperation with Central South University.
