China Supplier Sunda New Energy CCS1, CCS2, CHAdeMO Charge Connector AC DC Charging Pile

Supplier: Changsha Sunda New Energy Technology Co., Ltd.
Region: Hunan, China
Contact: Ms. Rita Liu
Price: $900.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Input voltage:	AC 380V±15%;	Supply Ability:	1000000 Piece/Pieces per Month;
Working Frequency:	45-55Hz;	Brand Name:	Sunda;
output current range:	0~32A;	output voltage range:	AC 220±10%;
Place of Origin:	China;	Port:	Shenzhen;
Rated Power:	22kw;	Size:	450350160mm;
Product name:	22kw charging pile;	Input Model:	Single phase three lines;
Working temperature:	-30°C~55°C;	Weight:	12kg;
Payment Terms:	L/C,T/T;

China Supplier Sunda New Energy CCS1, CCS2, CHAdeMO charge connector AC DC Charging Pile

Product Description

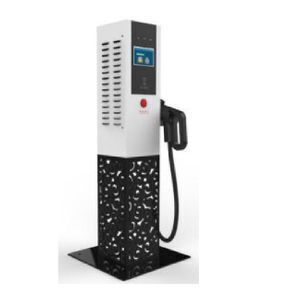

22KW intelligent AC charging pile (with LCD)

Introduction

1. Smart internet AC charging pile :The intelligent controller is used to detect, control and protect the charging pile, and has the functions of operation status monitoring, error monitoring, charging metering and charging, and remote control of the charging process.

2. Humanized operation: The mobile phone APP performs charging, settlement, and supports multiple mobile payment methods;

3. Reliable material: Made of SMC FRP material to withstand complex climates, waterproof and dustproof to IP55

4. Safe and stable :With lightning protection, overload, short circuit, leakage protection ;

5. Strong applicability: It has been successfully charged for most models.

Application

1. Suitable for private users, fast charging.

2. Underground parking lot, external operation.

3. Where it is often necessary to adjust piles.

Type	SDCA022_AE04
Power	22KW
Size	450350160mm/470190650mm
Weight	12kg/37.2kg
Installation	Column type, wall mounted
Technical indicators	Rated Power	22KW/40KW
	Input voltage	AC 380V±15%
	Input Model	Single phase three lines
	Working frequency	45-55Hz
	Output voltage range	AC 220+10%
	Output current range	0~32A
	Working temperature	-30 °C ~ 55 °C
	Protection Grade	IP55 / IP54
	Material	Cold rolled sheet
Main standard	GB/T 18487.1-2015 NB/T 33002-2010 NB/T 33008.2-2013 Q/GDW 1592-2014 Q/GDW1485-2014

Product picture

Packaging & Shipping

1. We support logistics such as DHL/EMS/UPS/FEDEX/TNT. If you have a designated freight forwarder, please let us know in advance.

2. For OEM orders, we support printing logo on products and packaging. If you need, we can also redesign and produce in batchesafter customer approval.

Company Information

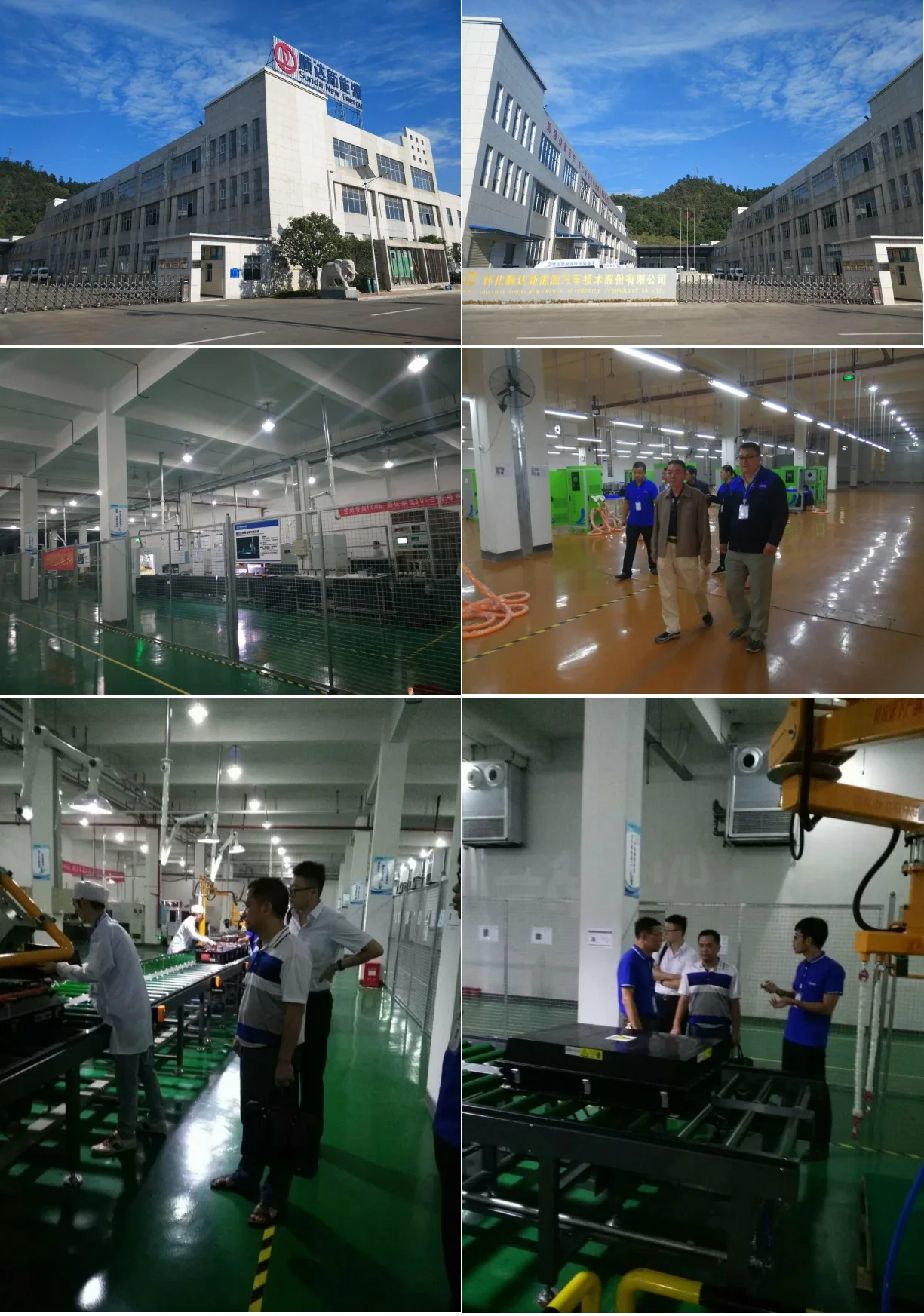

Sunda New Energy is committed to research and develop the power battery Pack of electric vehicle , electric vehicle charging piles and distribution of new energy vehicles. We are the general agent of SHUDU Bus Company in both Hunan Province and South -East Asia. Sunda New Energy Huaihua Factory has an annual output of 20,000 sets of charging piles and 1GWH battery PACK, which is also a state-level high technology enterprise and a provincial green factory. We has successfully passed ISO14001, ISO9001, IATF16949 quality management system certifications. Meanwhile,we possess the independent intellectual property rights and the ability of sustainable research and development.And we built a long-term strategic cooperation with Central South University.

FAQ

1. Can this Lithium-Ion Car Battery be mounted in any position?

Sure. There is no limit on the installation positions of the vehicles for the Lithium Iron Phosphate Car Battery.

Thanks to its Excellent Stability at High Temperature and Non-Spillable design, this Lithium Iron Battery can be installed in the engine compartment, under the seat and in the trunk.

2. I heard these lithium batteries were unsafe and a fire hazard. Will they blow up?

No, Lithium-ion Battery is absolutely safe.

The daily-said "Lithium Battery" usually includes 2 different types: Lithium Metal Battery and Lithium Ion Battery.

Because of the hyperactivity of lithium metal, the lithium metal battery maybe not very stable and could cause explosion hazard in specific condition.

But the Lithium Ion batteries do not contain hyperactive metallic lithium, and the chemical properties of lithium-ion is much more stable than that of lithium-metal, especially the Lithium Iron Phosphate Battery, also as well known as Li-Ion Battery, LiFePO4 Battery or LFP Battery for short.

Thanks to the thermal and chemical stability, our LiFePO4 car battery comes with improved battery safety. The Puncture Test shows our LiFePO4 battery will not explode or flame, just reposefully smoke.

3. Can I use the lead acid battery charger for this Lithoum Ion battery?

No. Because the 3-stages charging process with float charging for lead acid battery is not properly for Lithoum Ion battery with a 2-stages charge profile.

The lead acid charger will NOT automatically cut off the Float charge even when the Li-ion battery is fully charged. And the float charging will constantly provides pulse current to the battery.

In the long run, this pulse current will damage the PCB/BMS of the li-ion battery. So the PCB/BMS won't be able to protect the li-ion battery when it should be.

4. What is the difference between Lead acid battery charger and Lithium ion battery charger?

The charger for lead acid battery provides CC/CV/FC 3-stages Charging, including constant current, constant voltage, and Float charge (Trickle charge).

The charger for Lithium ion battery only requires CC/CV 2-stages charging and the float charge is not necessary to the PCB of lithium ion battery.

5. How long can I store this lithium ion battery before charge it?

The attenuation rate (self-discharge rate) of lithium ion battery is as low as 1%~5% per year. You can store the battery for 5 years without extra charging.
