Automatic Liquid Blister Packing Machine Jam Blister Packaging Machine

Product details
Payment Terms:L/C,T/T,Western Union,MoneyGram,VISA;Name:automatic liquid blister packing machine;
After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;Max.forming area ,Depth:70 *100 *15mm(Depth can be designed);
Place of Origin:Guangdong China;Dimension(L*W*H):1600*560*1450mm;
Driven Type:Electric;Certification:CE Certification;
Applicable Industries:Hotels,Manufacturing Plant,Food & Beverage Factory,Farms,Food Shop,Food & Beverage Shops;After-sales Service Provided:Engineers available to service machinery overseas;

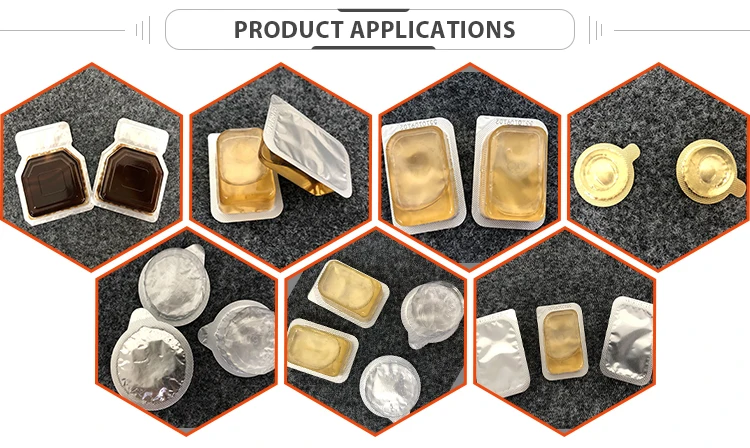

Supply Ability:100 Set/Sets per Month;Application:Food,Beverage,Commodity,Medical,Chemical,Tablet/Capsule/Pill/Candy;
Brand Name:MINGYUE;Key Selling Points:High-accuracy;
Warranty:1 Year;Port:Guangzhou,Shenzhen;
Packaging Detail:one machine with one plywood case;Type:Blister Packaging Machine;
Automatic Grade:Automatic;Voltage:380V/220V;
Material:304 Stainless Steel;Weight:500Kg;
Condition:New;Cutting Frequency:10-33Times/min;
PVC:0.15-0.5*80mm;Capacity:2400-3000 plate/h;

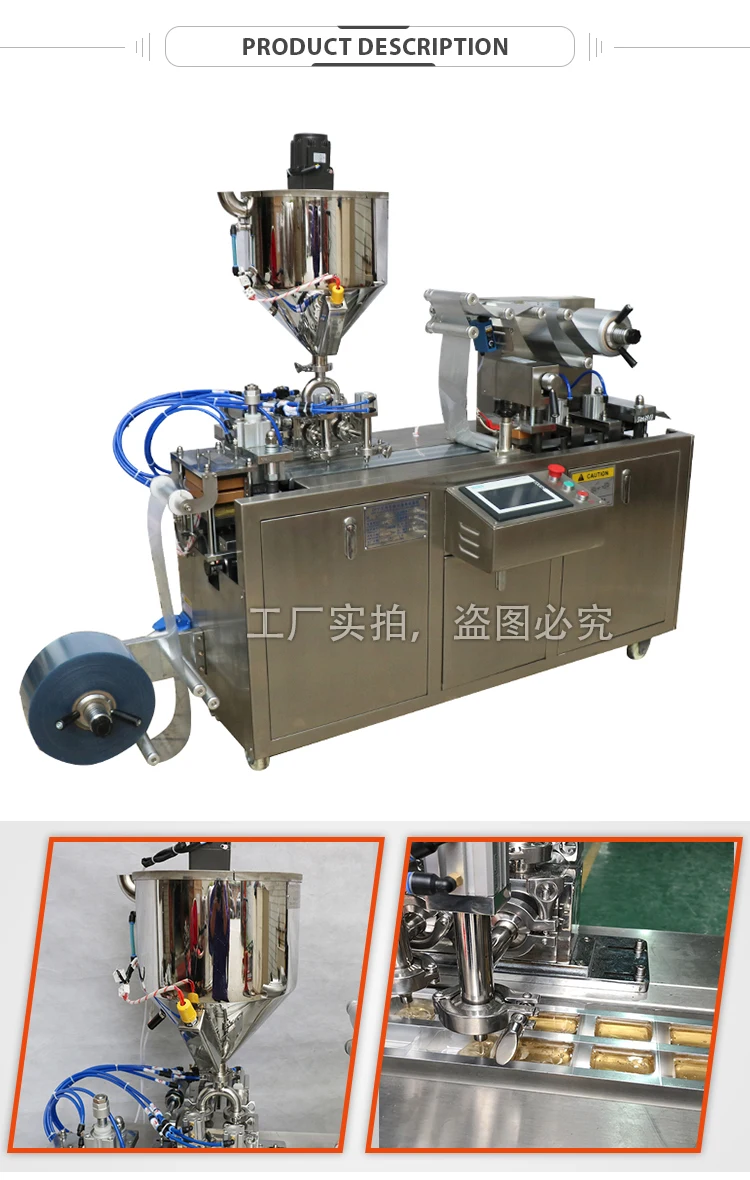

Product Description

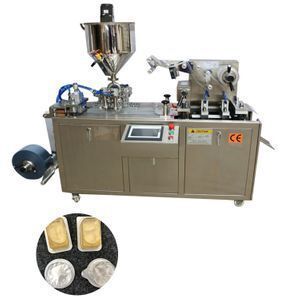

Automatic Liquid Blister Packing Machine Jam Blister Packaging Machine

Product Specification
Cutting Frequency (Times/min)10-33
Capacity ( thousand pcs/h)

2400 plate/h

Stroke (mm)

30-80mm

Max. Forming Area and Depth(mm)

70 × 100 × 15mm(Depth can be designed

according to customer requirements)

Air Compressor(m³/min)≥0.3 (provided by user) oilless air compressor better
Air Pressure (Mpa)

0.6-0.8

Standard Plate(mm)80×57 can be manufactured as user's requirements
Total Power380V/220V 50Hz 2.8kw
PVC Hard Pieces(mm)0.25-0.35×90
PTP Aluminum Foil(mm)0.02-0.035×80
Mould Coolingtap water or recycling water
Overall Dimensions(mm)

1600×560×1450mm(L×W×H)

Weight(kg)

500Kg
