Drilling Mud Pump
-
Supplier: Zhong Yun Intelligent Machinery (Yantai) Corp., Ltd. -
Region: Shandong, China -
Contact: Mr Andy Ma -
Price: $299.00 /set -
Min. Order: 1 set
| Supply Ability: | 1000 Set/Sets per Month; | Model Number: | BW150; |
| Packaging Detail: | Exporting package; | Port: | QingDao; |
| Payment Terms: | T/T,Western Union; |

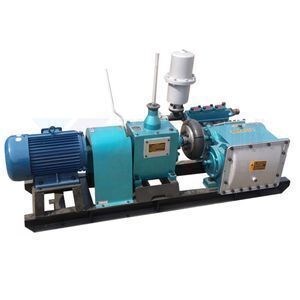

Introduction of BW150 Horizontal Triplex Piston Drilling Mud Pump
BW150 Horizontal Triplex Piston Drilling Mud Pump is a reciprocating single-acting pump with eight different pressures and flows.
BW150 Horizontal Triplex Piston Drilling Mud Pump could be served as a matching facility to 1500m small caliber diamond drilling machine, and also be used for grouting cement slurry.
Application of BW150 Horizontal Triplex Piston Drilling Mud Pump
1.Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Exploration: Coal mining exploration, Ore exploration;
3. Water well : Small hole diameter water well drilling;
4. Pipe-installing : Geothermal pipe-installing for heat pump;
5. Foundation piling: Small-diameter hole foundation piling drilling.
Parameter of BW150 Horizontal Triplex Piston Drilling Mud Pump
Type | Horizontal, triplex, reciprocating, single acting piston pump |
Stroke | 70 mm |
Cylinder dia. | 70 mm |
Pump speed (r/min) | 1500 |
Output volume (l.p.m) | 150; 90; 58; 38; 125; 72; 47; 32 |
Discharge pressure (Mpa) | 1.8; 3.2; 4.8; 7.0; 2.3; 4.0; 6.0; 7.0 |
Volumetric efficiency | 85% |
Input power (Kw) | 7.5 |
Suction Pipe dia. (mm) | 50 |
Discharge pipe dia. (mm) | 32 |
Drilling hole depth (m) | Diamond core drilling <1500 |
Dimensions (mm) | 1840* 795*995 |
Weight (kg) | 630kg |
-
