10A 16A Type 1 Schuko Plug Portable Charging Box ev car charger c cables

 Packing Details: Item No: BS-PCD030D-T1

                                       Packages: 1 carton inner box

                                       Size: 50*40*10(cm) /19.7*15.7*3.9(in)

                                       Weight: 3kg

Delivery Time:     2-5 days

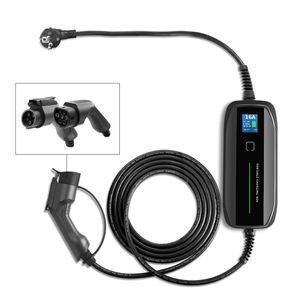

16A to Schuko Plug Portable EV Charging Box Car Charger c Cables

SAE J1772 2009 (Type 1) North American standard

IEC 62196-2 (Mennekes, Type 2) EU European standard

IEC 61851-1:2017 Electric Vehicle Conductive Charging System (2017)

IEC 62752:2016 IC-CPD EVSE Charging Standard

 car charger c cables

Apply to vehicle

Chevrolet Volt, Citroen C-Zero, Fisker Karma, Ford Focus Electric, Ford C-Max Energi , Mia, Mia Electric Van, Mitsubishi-I Miev, Mitsubishi Outlander Phev, Nissan NV200 SE Van, Nissan Leaf, Peugeot Ion, Renault Fluence, Renault Kangoo, Smiths Edison Van, Smiths Newton, Tata Indica Vista EV, Toyota Prius, Vauxhall Ampera...

 car charger c cables

Product specification

Mode2 (level 2) EV Charging Cable

Model: BS-PCD020D-T1

Connector: Type1 to schuko

Certificate: TUV, CE

Input/Output: 230V AC

Frequency: 50Hz

Current: 16A

Power: 3.6KW

Length: 5m (16.4ft)

Color: black

Operating temperature: -25℃ to +55℃

IP Class: IP67

Cable: Straight

 car charger c cables

Key features

-High Compatibility

Fitting all EVs with Type 1/2 inlet, 100% correctly and effectively

-Quick & Easy Operation

Simply connect the plug with the EV’s inlet, and then the charger will automatically detect the connection status and handshaking protocol automatically, and starts charging

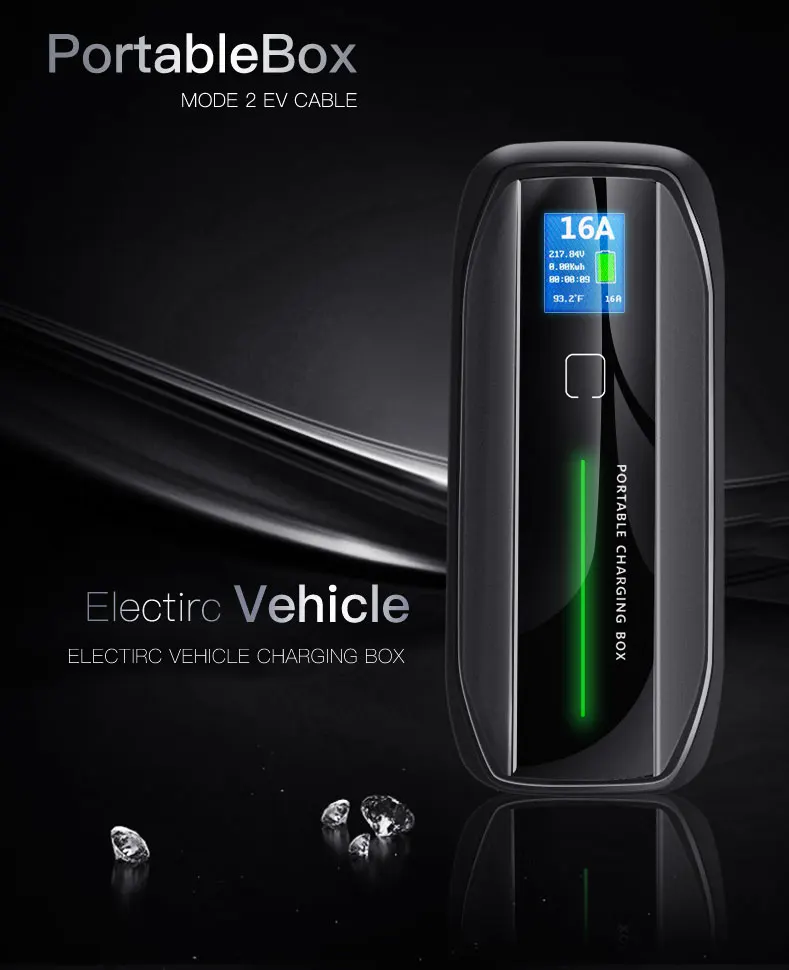

-LED Display

shows charging status via screen

-Safety Assurance

Already passed all tests of TUV. There are all kinds of protective measures to ensure the safety of every user

-Intelligent Chip

Automatically repairing minor charging problems while charging. The lights would blink in different ways to indicate different problems which will help you to know the charging situation right now

-Rugged Enclosure

With brand-new design and solidly built high-strength ABS plastic, unsurpassed quality will be presented, even to bear the weight of a car, which was already been tested

-IP66

Its unique waterproof design ensures you can use it anytime with confidence

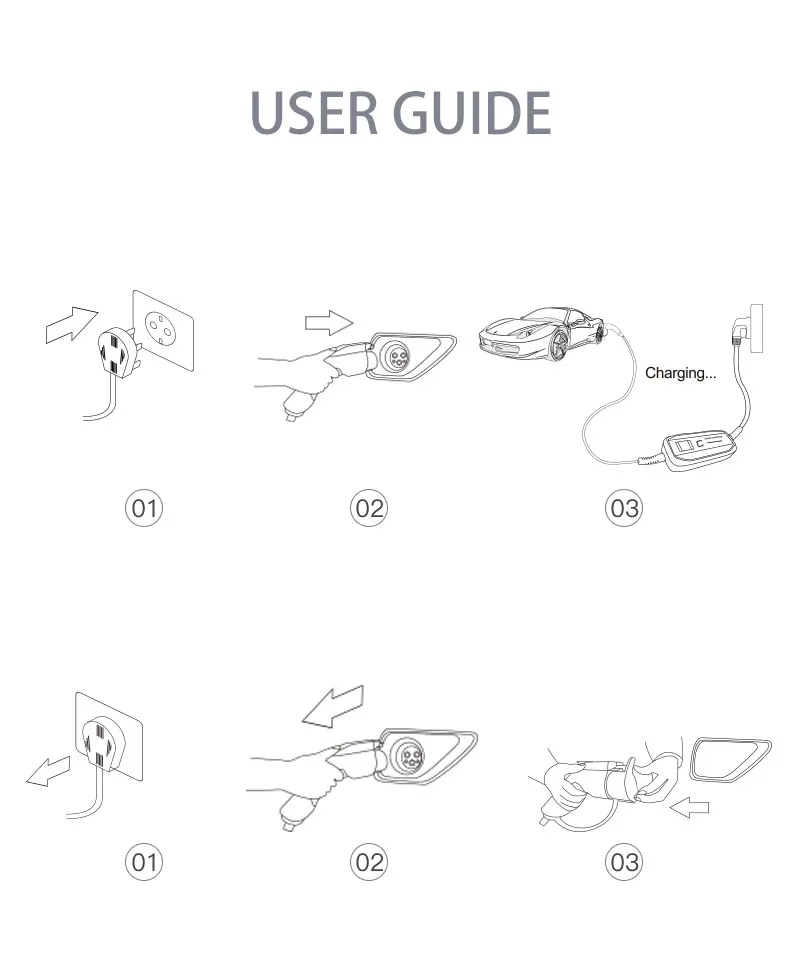

How to use

A. How to start charging

1. Firmly insert the power plug into the outlet on the wall. Ensure the outlet with a rated current of 16A

2. Insert the Type 1 plug into the inlet on the vehicle

3.The device starts charging automatically after the green charging LED begins to keep blinking

B. How to stop charging

1. Disconnect the power plug from the outlet

2. Disconnect the Type 1 plug from the vehicle inlet

3. Put the charger away

C. How to switch the current

1.Press the button to switch the current between 10A and 16A before inserting the charging plug (car side)

D. How to know the charging status

 car charger c cables

Good to know

-This is a Mode 2 EV charging cable special for EVs with Type 1 inlets. Don’t use it for EVs with other types of inlets

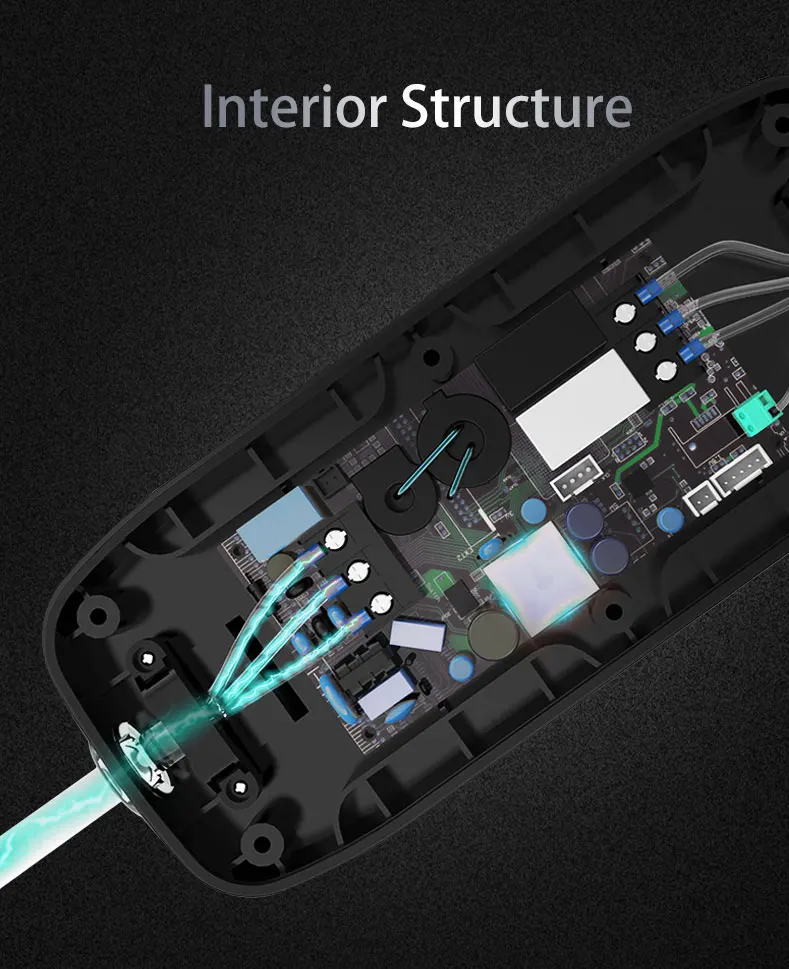

-This cable has precise internal structure. Any questions, please contact our Customer Service Manager at the first time. Please do not take it apart without any professional technical support

-Don’t use it in water

-The product is only for EV charging. Please don’t use it in any other occasions, including hauling, binding and so on

 car charger c cables

Package measurement and weight

Item No: BS-PCD020D-T2-S

Package: 1 carton inner box

Packing size: 50*40*10(cm) /19.7*15.7*3.9(in)

Weight: 2.5kg

 car charger c cables

Product professional data:

 car charger c cables

Parts can be customized

Box: can print logos on it

Plug: can print logos and choose colors

Cable: can print words or logos and choose colors

 car charger c cables

Instructions & Documents

Please contact us for detailed instructions

 car charger c cables

We have abundant experience of EV charging products. Our products have been successfully applied in most of countries all over the world. From cold Norway to hot Saudi Arabia, you can see form of our products. We provide the most professional products and the best quality service to each of our customers.

We pay more attention to handle the detailed part of our products, hope to provide with our customers safety, difficult to damage and convenient operation in use.

Here are some detailed pics about our BS-PCD020D-T1-S MODE 2 EV CHARGING CABLES :

More information about our products, please contact us or visit our homepage:  https://besen-group.en.alibaba.com/

Here are some customer’s common questions about our products :

1. What is your terms of payment?

We will recommend our customer to use different terms of payment based on difference in quantity of order.

Less than 1000 USD, generally choose the PayPal

More than 1000 USD, generally choose telegraphic transfer or Alibaba

If you need the detailed terms of payment, pls contact us.

2. I want to know more infos about your reputation.

d. We are Amazon Vendor.

b We are the Good Supplier recommended by Alibaba.

c. We have 3 stars in Transaction Level, which is already the highest level in this industry.

d. In the past year we have exported the most ev cables in China, which you can find some data on Alibaba.

3. I think T/T payment is not very safe for me, and L/C is a little trouble. Any advices?

You can have a try with Alibaba Trade Assurance. This is a new service released by the Alibaba.com, that means the account of payment is guaranteed by Alibaba !

It is very easy and safe:

a. You just need to confirm the order on Alibaba, and arrange the payment to Alibaba (not to us).

b. Alibaba notice us to send the goods to you after received your payment.

c. If you received the right goods in agreed time, Alibaba will send the money to us

d. If you didn't receive the right goods, Alibaba will return the money to you.

More and more customers on Alibaba are using this payment method to ensure the safty of their fund. What do you think?

More information about Trade Assurance, pls contact us or look up

http://tradeassurance.alibaba.com/bao/buyer_advertise.htm?tracelog=from_home_service : )

4. Do your products have quality certification? How long is the warranty time?

All of our EV charging products posses with CE, TUV certifications. Generally speaking, the warranty time is 1 year.

5. How do you deliver your goods to me? How long will it take?

We have various ways of shipment for customers to choose, DHL, TNT, UPS, Air freight, Ocean freight. If not have the special requirements, the weight of products less than 50kg will be arranged by DHL (3 days), the weight of products more than 50 kg will be arranged by Ocean freight (30 days). But pls note that this is just the time of transportation, the producing time of products will be varied from 3days to 10 days due to the quantity of order, the level of busyness in production line.

6. Can we require you to print our trademark into your products? Do the color of plug and cable can be customized made according to our requirements?

We support OEM production, but the order quantity must be more than 100pcs.

The color of plug and cable can be customized made any colors on the basis of your requirements, the order quantity must be more than 200pcs.

7.  We need to connect the industry plug to J1772 plug with 7m length of cable, however, we don’t find the similar products in your website.

The products displayed in our website are mainstream products, we can connect any two kinds of plug, but some of which need certain quantity to be customized connection. If more detailed requirements, pls contact us.

8. How is your product quality? In case of problem occurs, what should I do?

Firstly, we sell our products for many years, we have the professional engineer team in this field. Moreover, our products have to pass strict inspections and repeated tests before they go out, rate of fine variety is 99.98%. If it is the quality which lead to the failure in use, we will take place the new one for free.

If any problems not in the above-mentioned answers, you can contact us directly, we will help you to solve the problem with carefulness and patience.
