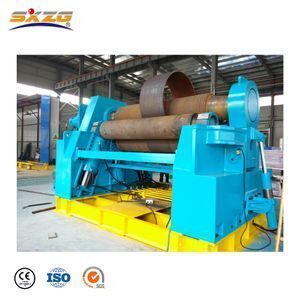

hydraulic 4 roller heavy duty sheet metal plate rolling machine price of rolls

Supplier: Anhui Sanxin Heavy Industry Machinery Manufacturing Co., Ltd.
Region: Anhui, China
Contact: Ms. Ann Shen
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Key Selling Points:	High-accuracy;	Condition:	New;
Weight (KG):	6000;	Type:	4 roller rolling machine;
Rolling Speed (m/min):	5;	Color:	Blue;
Machine Type:	Roll Forming Machine;	Material / Metal Processed:	Aluminum,Carbon Steel,Brass / Copper,ALLOY,Stainless Steel,stainless steel, carbon steel, copper plate, and aluminum palte;
Voltage:	220V/380V/400V;	Certification:	ISO 9001:2000;
Material:	Q235;	Weight:	8000kgs;
Port:	Shanghai;	Place of Origin:	Anhui China;
Warranty:	1 Year;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Motor Power (kw):	11;	Extra Services:	End Forming;
No. of Roller:	4;	Year:	2019;
Keyword:	Hydraulic Steel Plate Rolling Machine;	Packaging Detail:	rolling machine price is fixed by steel rope;
Brand Name:	SXZG;	Supply Ability:	50 Set/Sets per Month;
Max. Plate Thickness (mm):	8;	Usage:	Metal Sheet Rolling;
Application:	Construction Projects;	After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Control system:	PLC;	Max. Working Length (mm):	2000;
Warranty:	12 Months;	Automation:	Automatic;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;

hydraulic 4 roller heavy duty sheet metal plate rolling machine price of rolls

Product Description

Specification

4 roller plate bending machine

1, CE, ISO9001:2000

2, High quality with lower price

3, High performance

4, Easy control

Technical parameters

Model	W12NC 40*2000mm
Maximum crimp thickness	40mm
Maximum crimp width	2000mm
Max pre-bending thcikness	36mm
Max crimp width	245 MPa
Rolling speed	5m/min
Loaded with mininum diameter	1200mm
The upper roller diameter	480mm
Roll diameter	450mm
Side of the shaft diameter	400mm
Power	37kw
Dimension(mm)	8200x3000x2500

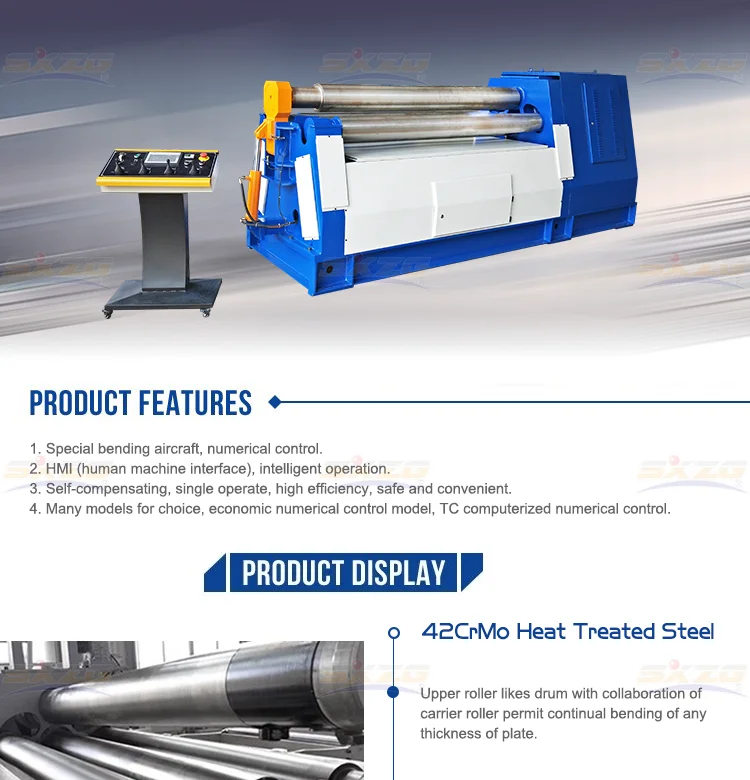

Features of four roller plate rolling machine

1. High precision pre-bending, freely setup the width of plate.

Upper roller presses the plate end for pre-bending.

2. Upper roller likes drum with collaboration of carrier roller permit continual bending

of any thickness of plate.

3. Safe work, fixed two down roller, upper roller does horizontal and vertical movement,

and the plate don’t move during upper roller moving.

4. Unitary structure, convenient to move the whole machine as machine has a hardy under pan.

No need to anchor bolt.

5. Different use has different control way, like top numerical control and below numerical control.

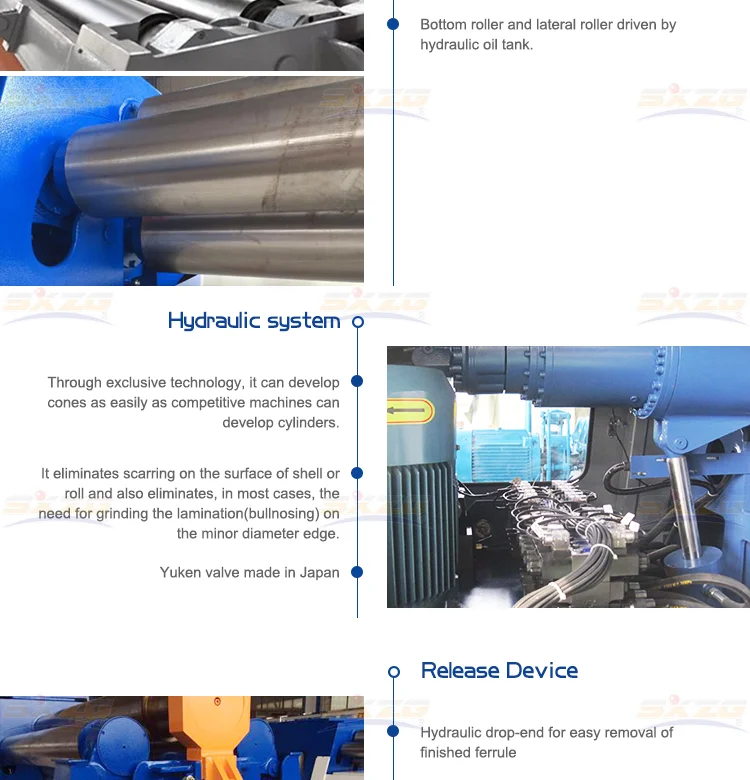

6.Through exclusive technology, Krrass can develop cones as easily as competitive machines can

develop cylinders. And it eliminates scarring on the surface of shell or roll and also eliminates,

in most cases, the need for grinding the lamination (bullnosing) on the minor diameter edge.

Drawing of four roller plate rolling machine

Photos of four roller plate rolling machine

Video link of 4 roller plate bending machine: https://www.youtube.com/watch?v=kq2lRIiyqRM

Our Services

1. One year guarantee for whole machine

2. 24 hours technical support by email.

3. Calling or door-to-door service

FAQ

1. Q: Are you a manufacturer or trading company?

A: We are professional manufacturer of press brake machine.

2. Q: How to choose the model of the rolling machine?

A: Pls inform us following details:

- The thickness of your sheet?

- The width of your sheet?

- The material of your sheet?

3. Q: How about your manufactory in China?

A: SXZG located in Ma'anShan City,AnHui province who is the leading area in China and also in the worldwide as the center of the metal plate solution machines,We have worked about 12 years in this area and totally have about 250 staffs.Rich experience in this field with professional technical supporting and oriented service.

4. Q: How about your machine quality?

A: SXZG is a mature brand in China. Through our over ten years research in technology, our design including structure and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or more strict standard. Our machines distribute worldwide to about 50 countries where there are metal plate industry. And where there are our machines, there are good reputation and terminal user satisfaction.

1. Company name: Anhui Sanxin Heavy Industry Mechinery manufacturing Co.,ltd

2. Brand: SXZG

3. Address: Bowang Industril Park, Ma’anShan Anhui China

4. Phone: +86-555-8358750 Tel: 0086-15655560053(whatsapp)

5. Email: Ann(at)ahsanxin.cn

6.Skype: annyshen5 QQ: 2860861986 Wechat: ann712528

7. Website: www.ahsanxin.com
