Measuring Voltage Range: | 0~600V AC DC; | Auto Range: | YES; |
NCV: | YES; | Measuring Capacitance Range: | 0 ~ 6mF; |
True RMS: | YES; | Continuity Test: | YES; |
Brand Name: | PEAKMETER; | Measuring Current Range: | 0~600mA AC DC; |
Selling Units: | Single item; | Place of Origin: | Guangdong China; |
Live Test: | YES; | Back Light: | YES; |
Package Type: | 30pcs/carton, carton size: 42.8 * 32* 41cm; GW: 16 kgs.; | Single gross weight: | 0.7 KG; |
Model Number: | PM8248S; | Work Light: | YES; |
Frequency Test: | 30~1000 kHz; | Package Preview: | https://sc02.alicdn.com/kf/HTB1lmHtaPzuK1Rjy0Fpq6yEpFXaZ.jpg_640x640.jpg; |
Measuring Inductance Range: | N/A; | Single package size: | 23X17X10 cm; |
Dimensions: | 169*83*53 mm; | Measuring Resistance Range: | 0~10MΩ; |
Certificate: | CE RoHS; | Operating Temperature: | 0 ~40 ℃; |

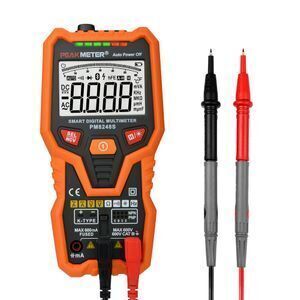

PEAKMETER PM8248S 6000 Counts LCR True RMS Smart Digital Multimeter

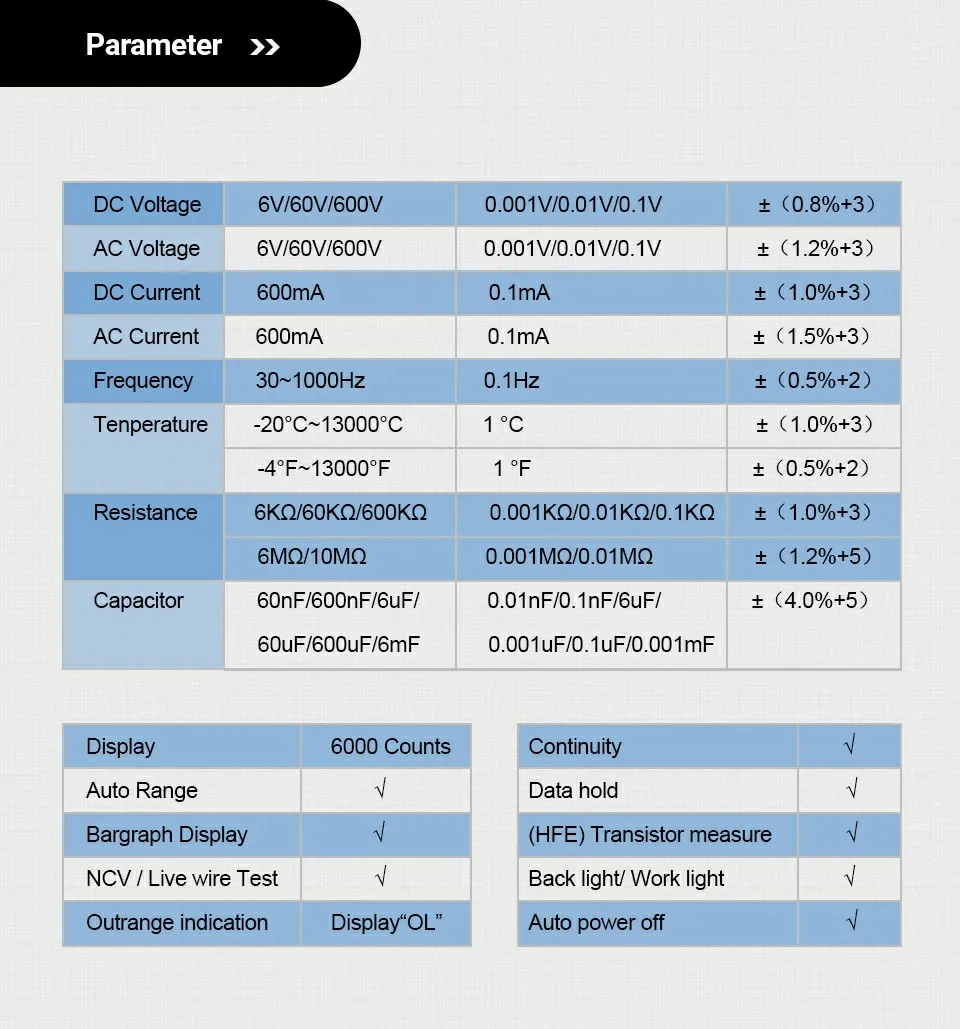

Specifications | |||
| Range | Accuracy | |
DC Voltage | 6V/60V/600V | ±(0.8%+3) | |
AC Voltage | 6V/60V/600V | ±(1.2% +3) | |
DC Current | 600mA | ±(1.0% +3) | |
AC Current | 600mA | ±(1.5% +3) | |
Resistance | 6KΩ/60KΩ/600KΩ/6MΩ/10MΩ | ±(1.0% +3) | |
Capacitance | 60nF/600nF/6uF/60uF/600uF/6mF | ±(4.0% +3) | |
Frequency | 30~1000Hz | ±(0.5% +2) | |
Temperature | -20℃~1300℃ | ±(1.0% +3) | |
-4℉~2372℉ | ±(1.0% +3) | ||
Features | |||

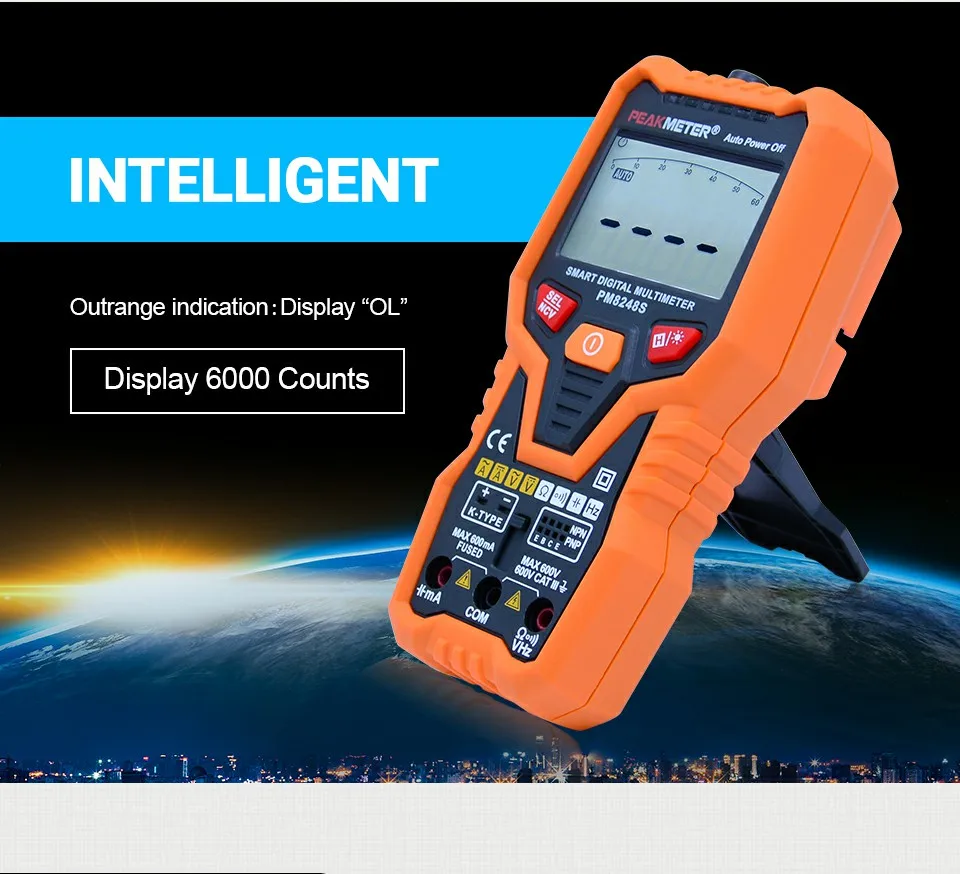

Display | 6000 counts | ||
Auto Range | √ | ||
Bargraph Display | √ | ||
True RMS | √ | ||
Transistor | √ | ||
Continuity | √ | ||
Non Contact Voltage Detector (NCV) | √ | ||
Live Test | √ | ||
Data Hold | √ | ||

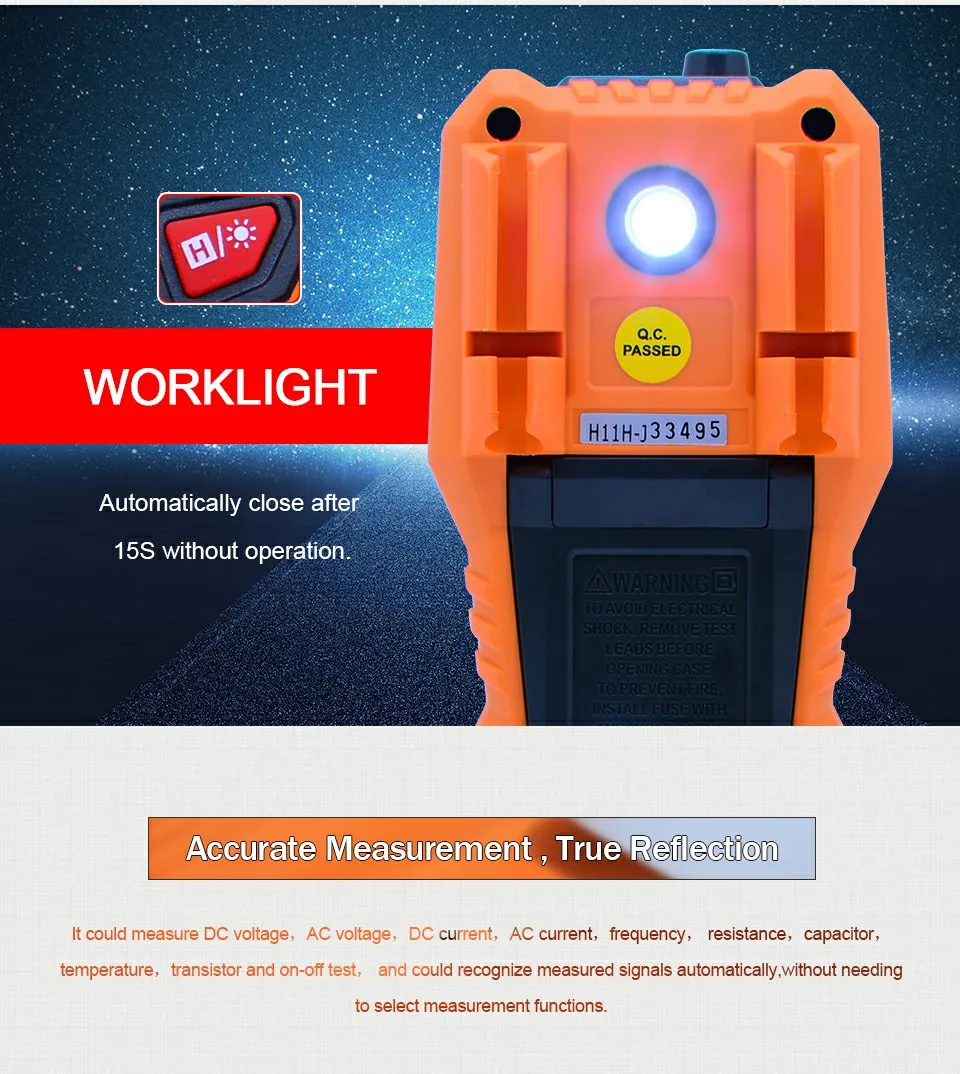

Work Light | √ | ||
Auto Power Off | √ | ||
Back Light | √ | ||
General Specifications | |||
Power supply | 3x1.5V AAA Batteries | ||
Weight | Approx. 250g (without batteries) | ||

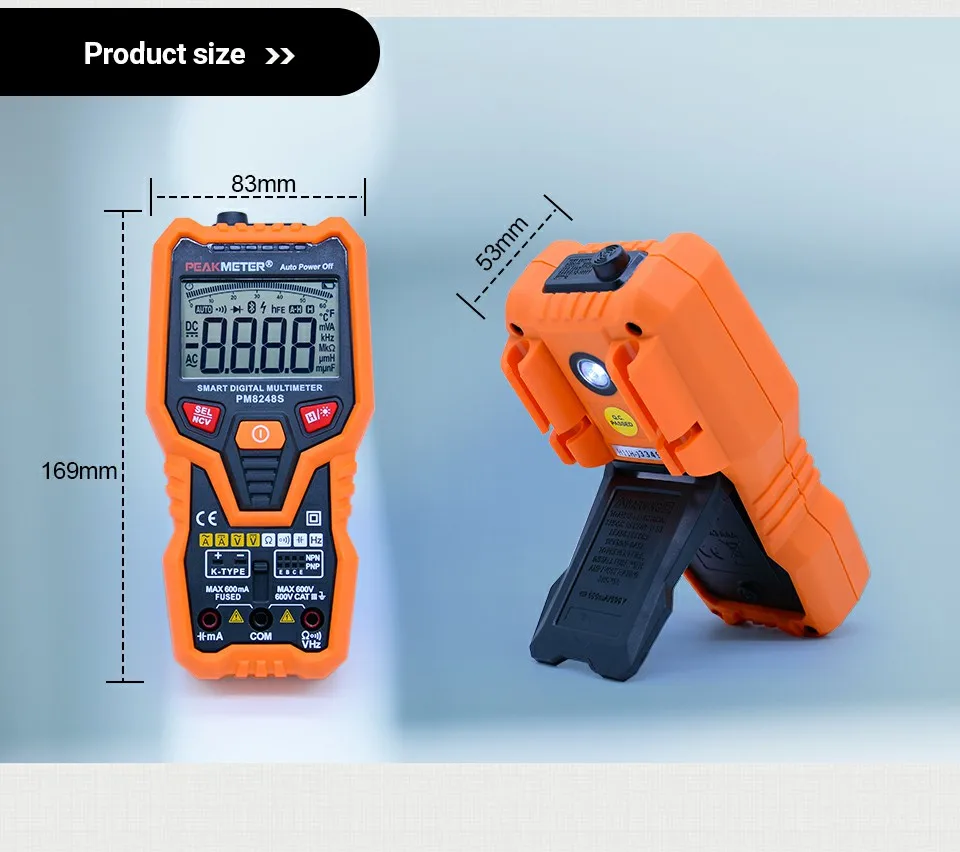

Size | 169*83*53 mm | ||
Safety Rating | EN61010-1, -2-030, EN61010-2-033 EN61326-1, CAT III 600V |
