Dual Display 4000 Counts DMM and Loop calibrator in One Tool 4-20mA Volt Hz Output Process Calibrator Multimeter

Click here to contact

Product details

Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;	Supply Ability:	50000 Piece/Pieces per Month;
Place of Origin:	Guangdong China;	Port:	Shenzhen;
Brand Name:	PEAKMETER;	Model Number:	MS7282;
Packaging Detail:	10pcs/carton, 11KGS/Carton;;

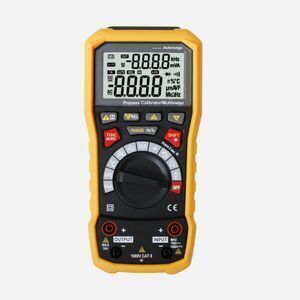

MS7282 Dual Display 4000 Counts DMM and Loop calibrator in One Tool 4-20mA Volt Hz Output Process Calibrator Multimeter

Product Description

Features

DMM and loop calibrator in one tool
Max displayed value: 3999 counts
Generation output and measurement data displayed simultaneously
Auto range
Generation of output current signal up to 24mA DC
Generation of output voltage signal up to 10V DC & 100mV DC
Generation of frequency signal up to 10.00Hz to 10.00KHz
24V DC source loop power supply
Multimeter measurement: DC voltage, AC voltage, DC current, AC current, resistance, capacitance, frequency, temperature and break-and-make, diode and triode test.
Data hold
Relative measurement
Adjustment knob used for measurement and power functions selection
Power supply with rechargeable battery

Specifications
Range	Resolution	Accuracy
Current DC Generating Output
0.01 to 24.00mA	0.01 mA	±(0.1% + 5)
Voltage DC Generating Output
0.01 to 10.00V	0.01V	±(0.1% + 5)
0.1 to 100.0 mV	0.1mV	±(0.1% + 5)
Frequency Generating Output
1 to 100Hz	0.01Hz	±0.1Hz
100Hz to 1K Hz	0.1Hz	±0.5Hz
1K to 10K Hz	1Hz	±5Hz
Loop Power Supply
Range	Accuracy,	Load Capacity
24V	2%	30mA
Current DC Measurement
40 / 400mA		±(0.1% + 5)
Current AC Measurement
40 / 400mA		±(0.1% + 5)
Voltage DC Measurement
400mV	0.1mV	±(0.1% + 3)
4V/40V/400V/1000V		±(0.1% + 3)
Voltage AC Measurement
400mV/4V/40V/400V	0.1mV	±(0.8% + 3)
700V		±(1.0% + 10)
Frequency Measurement
0 to 200kHz		± 10
>200kHz		Only for reference
Resistance Measurement
400/4K/40K/400K/4MW		±(0.3% +5)
40MΩ	0.1MΩ	± (2.0% + 5)
Capacitance Measurement
40n/400n/4u/40u/100uF		± (2.0% + 10)
Diode Measurement	1 mV	Indicate the approximate value of forward voltage of diode
Triode test hFE Measurement	0 to 4000
Temperature Measurement	K-type thermoelectric couple (optional).

Environmental Specifications
Operating Temperature	-10 ºC to 40 ºC
Storage Temperature	-20 ºC to 50 ºC
Temperature Coefficient	<0.1 x (specified accuracy) per ºC
Safety Specifications
Electrical Safety	Designed in accordance with IEC/EN61010-1
Overvoltage category	IEC 1010-1 CAT II 1000V
Maximum voltage	1000V
Mechanical & General Specifications
Size	195 x 92 x 55 mm
Weight	600g (including battery)
Batteries	1.2V x 4 rechargeable batteries
Warranty	1 year

Accessories

Thermoelectric couple	One piece
Multi-purpose socket	One piece
Test lead	One set
Test clip	One set
24V output wire	One piece
Charger	One piece
Capacity 2000mAH rechargeable batteries(inside)	Three pieces
User’s manual	One piece
Carry case	One piece
Gift box	One piece
