Measuring Inductance Range: | N/A; | Place of Origin: | Guangdong China; |
Brand Name: | N/A; | Package size per batch: | 36X29X13 cm; |
Measuring Voltage Range: | 1000V DC 750V AC; | Model Number: | DT9205A; |
Measuring Resistance Range: | 0Ω-20MΩ; | Package Preview: | https://sc01.alicdn.com/kf/Hc0495486726d42828d1ab9479e15b8ebe.jpg_640x640.jpg,https://sc01.alicdn.com/kf/Ha3390f90d9f74629b2d547aedd83cde9H.jpg_640x640.jpg; |
Selling Units: | Multiple of 10; | Gross weight per batch: | 3.5 KG; |
Dimensions: | 191L * 89W*35H (mm); | Operating Temperature: | 0 ~40 ℃; |
Measuring Capacitance Range: | 0-50uF; | Package Type: | 21kgs/carton, 60 pcs/carton, carton size: 49.5*41*42CM; |
Measuring Current Range: | 0~20A; |

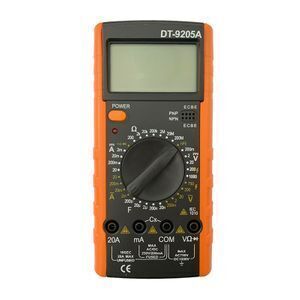

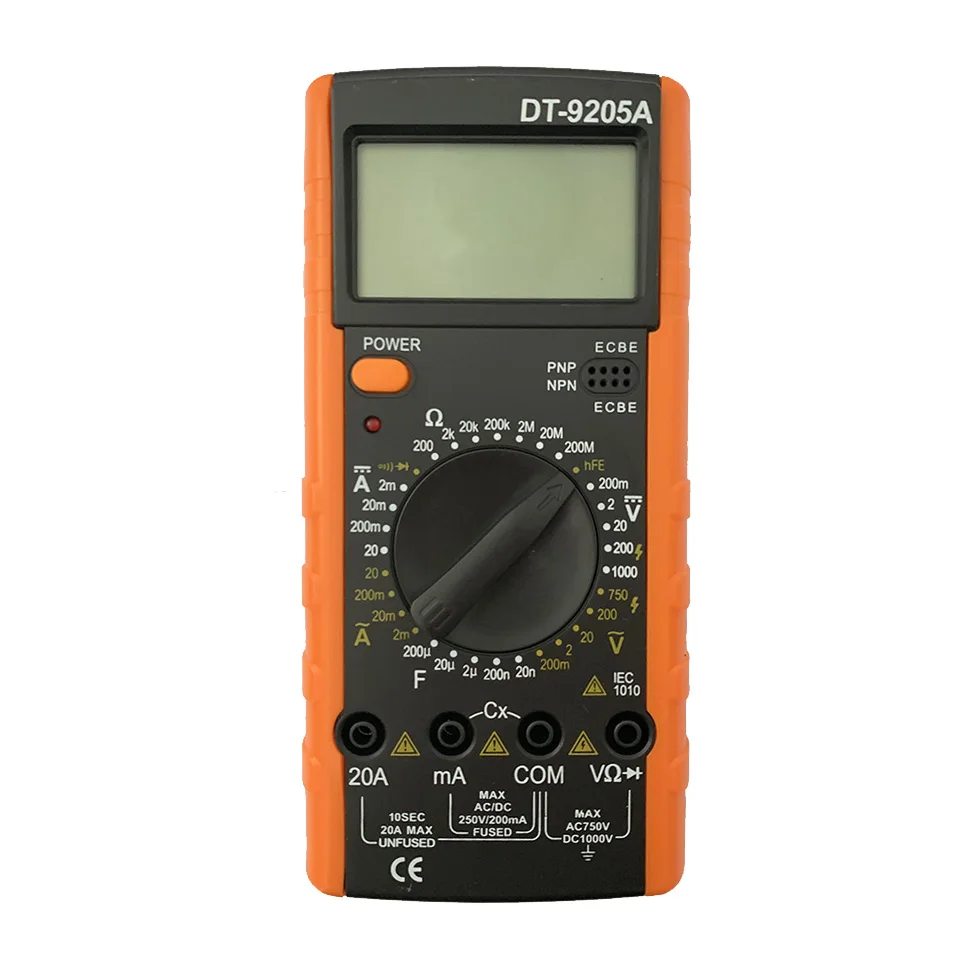

Low price Good quality Popular Digital Multimeter Model DT9205A DCV/ACV DCA/ACA Ohm Capacitance
Features | ||
Display | 2000 counts | |
Auto Power Off | ||
Full range over load protection | ||
Capacitance measurement Auto-zeroing | ||
Automatic negative polarity indication | ||
Power supply | Single 9V Battery IEC 6F22 | |
Weight | Approx 310g (including battery) | |
Dimension | 191L * 89W*35H (mm) | |
Safety Rating | IEC61010-1, 2000 CAT I 1000V overvoltage standards. | |
Specifications | ||
DC Voltage | 200mV | ±(0.5%+3) |
2V/20V/200V | ±(0.8%+2) | |
1000V | ±(1.0% +2) | |
AC Voltage | 200mV | ±(1.2%+5) |
2V/20V/200V | ±(1.0%+5) | |
750V | ±(1.2%+5) | |
DC Current | 2mA | ±(1.0%+3) |
20mA /200mA | ±(2.0%+2) | |
20A | ±(2.0%+10) | |
AC Current | 2mA | ±(1.2%+10) |
20mA | ±(2.0%+3) | |
200mA | ±(2.0%+5) | |
10A | ±(2.5%+10) | |
Resistance | 200Ω | ±(1.0%+10) |
2KΩ/20KΩ/200KΩ/2MΩ | ±(1.0%+4) | |
20MΩ | ±(1.0%+10) | |
Capacitance | 20Nf/200nF/2uF/20uF | ±(4.0%+5) |
50uF | ±(4.5%+5) |
