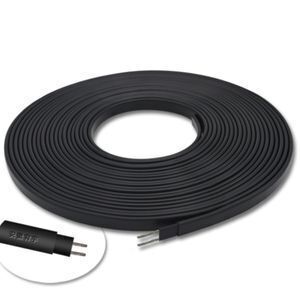

20w/m Roof Snow Melting Heating Cable

Product details
Application:Snow Melting;Conductor Material:Copper;
Application:Snow Melting Agent;Outer Insulation:FEP,PVC,XLPE;
Model Number:Customize;Insulation Material:FEP,PVC,XLPE;
Number of Conductors:Customers' Demand;Number of Conductor:2;
Package Type:1. If you want to save the freight, suggest you use the regular package that is just put heating cables in a carton without inner box. 2. If you want to protect the hating cables better, suggest you to use inner box first, and then put them in the carton. 3. If you sell goods in your own brand, suggest you use the color box, which has your own design, such as logo and so on, then put these color box in cartons.;Conductor Material:Copper;
Brand Name:YouYu;Bending radius:38mm;
Output:5.3w/ft(17w/m)+-10%;Package Preview:https://sc02.alicdn.com/kf/Hf80798bf68ea4e4f888ebd490f2b73a4u.jpg_640x640.jpg,https://sc02.alicdn.com/kf/Hb269c52545a04a1aa352cc248c6e67e0f.jpg_640x640.jpg;
Place of Origin:Anhui China;Single package size:20X20X20 cm;
Selling Units:Single item;Single gross weight:2 KG;
Jacket:XLPE,FEP,PVC;Min. Installation Temp.:-20℃;
Conductor insulation:XLPE,FEP,PVC;Rated Voltage:220V;
Cold lead:8.5ft (2.5m) length;

Factory Supply Snow Melting Heating Mat

Product Description

Heating cable using alloy resistance wire for electric heating to achieve heating effect. The heating cable is divided into single conductor heating cable and twin conductor heating cable.

Working Principle

The inner core of the heating cable is composed of cold wire and hot wire. The outer core is composed of an insulating layer, a grounding layer, a shielding layer and an outer jacket. After the heating cable is energized, the hot wire heats up and runs between 40 and 60 degrees Celsius. The heating cable embedded in the filling layer transmits the heat energy through the way of heat conduction (convection) and emits the far infrared radiation of 8-13um.

Product Advantage

1. Comfortable, healthy, clean, long life and no maintenance.
2. Spacious, simple, warm, damp proof and mildew proof.
3. Safety, efficiency, environmental protection, energy saving and low cost.

    There is no leakage and short circuit in heating by heating cable, and there is no danger;

    The temperature of each room can be shut down and adjusted Sseparately.

Scope Of Application

1. Road snow melting
2. Pipe insulation
3. Soil heating system
4. Roofing melting snow and melting ice





Installation Steps



Technical Parameter

Catalog Number
Rated Voltage
W/M
Length(M)
Output Power(W)
Resistance
(Ohms)
FTC-200-20-2
230V
20
10
200
264.5
FTC-300-20-2
230V
20
15
300
176.3
FTC-400-20-2
230V
20
20
400
132.3
FTC-500-20-2
230V
20
25
500
105.8
FTC-600-20-2
230V
20
30
600
88.2
FTC-700-20-2
230V
20
35
700
75.6
FTC-800-20-2
230V
20
40
800
66.1
FTC-1000-20-2
230V
20
50
1000
52.9
FTC-1200-20-2
230V
20
60
1200
44.1
FTC-1400-20-2
230V
20
70
1400
37.8
FTC-1600-20-2
230V
20
80
1600
33.1
FTC-1800-20-2
230V
20
90
1800
29.4
FTC-2000-20-2
230V
20
100
2000
26.5
FTC-2300-20-2
230V
20
115
2300
23.0
FTC-2600-20-2
230V
20
130
2600
20.3
FTC-2900-20-2
230V
20
145
2900
18.2
FTC-3200-20-2
230V
20
160
3200
16.5
