Home Use Water Frost Protection Self Regulating Pipe Tracing Cable raychem heat tracing cable

Product details
Maintenance temperature:65-120℃;Jacket:PE,FEP;
Conductor Material:Copper;Place of Origin:Anhui China;
Single package size:20X20X20 cm;Material:PTC;
Bus-wire gauge:15-60W/m;Type:Flame Retardant,Corrosion Protection;
Max. exposure temperature:105-155°C;Insulation Material:PE,FEP;
Package Preview:https://sc01.alicdn.com/kf/Hfe02a37b66934481b2a9a679757aa70bW.jpg_640x640.jpg,https://sc01.alicdn.com/kf/Ha4c35003517a4f1e8d22168aac83836ba.jpg_640x640.jpg;Application:Frost protection, Snow Melting and De-icing, Pipe heating trace / roof;
Application:Pipe Heating;Model Number:customize;
Brand Name:Youyu;Selling Units:Single item;
Number of Conductors:2;Color:Customize;
Number of Conductors:Customers' Demand;Service voltage:24-240V;
Single gross weight:2 KG;Package Type:Home Use Water Frost Protection Self Regulating Pipe Tracing Cable 1. 200m, 400m or 500m in a carton; 2. We can provide customized packing as request if the order quantity is big enough.;

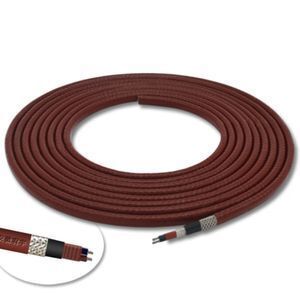

Home Use Water Frost Protection Self Regulating Pipe Tracing Cable

Product Description

Product Introduction

Electric self-regulating temperature heating cable is the only one of electric thermostatic product of new generation, constructed of a semiconductor heater and two parallel bus wires with the addition of insulation layer. The heating elements are parallel to each other and its resistivity has a high Positive Temperature Coefficient” PTC”.

In each heating tracing band, circuits between the bus wires change with the ambient temperature. As temperature decreases, the heater’s resistance decreases which produces more output wattage; conversely, as temperature increases, resistance increases which lower the output wattage, loop back and forth.

The advantage of electric self-regulating temperature heating cable with other heating tracing products is that the temperature can be regulated automatically in a proper range.

Product Dispaly

1.Tinned copper wires

2.Self-regulating conductive core

3.Thermoplastic insulation

4.Metal braid

5.Thermoplastic jacket

Product Feature

1. Energy efficient automatically varies its power output in response to pipe temperature changes.
2. Easy to install, can be cut to any length (up to max circuit length) required on site with no wasted cable.
3. No overheat or burnout. Suitable for use in non-hazardous, hazardous and corrosive environments.

Product Application

self-regulating heating cable

self-regulating heating cable widely used in petroleum, chemical, steel, electricity and other fields.For industrial

pipelines, storage tanks and equipment with temperature control, heating, antifreezing.It’s applies to common areas,

dangerous areas, corrosive areas, explosion-proof areas and other complex environment.

Technical Parameter

Type

Power

(W/M 10℃)

Max maintain temp(℃)

Max.

exposure temp(℃)

Min. installation temp(℃)

Max. length of single power supply



Low temperature series

10,15,25,35

70℃±5℃

105℃

-60℃

7*0.5  100meters;

19*0.32 120meters.

Medium temperature series

35,45,50,60

105 ℃ ± 5 ℃

135℃

-40℃

7*0.5  100meters;

19*0.32 120meters

High temperature series

35,50,60

135 ℃ ± 5 ℃

155℃

-30℃

7*0.5  100meters;

19*0.32 120meters

Company Information



Client & Certificate



FAQ

Are you manufacturer or trading company?

We are professional heating cable manufacturer founded in 2012, located in Wuhu city, Anhui Province, China. Welcome to visit our factory!

What's the Minimum Order Quantity?

MOQ for heating mat is 500sq. m.
MOQ for self regulating heating cable is 1000m.
MOQ for constant wattage heating cable is 1000m.
MOQ for thermostats is 50 pieces.

Can I place a sample order first?

Yes, you can place sample order to check the quality and testing it. Parts of samples are free of charge. Delivery cost is on buyer's account.

What is your delivery time?

Normally within 7~15 days, big order should be negotiated.

What's the payment term?

T/T, L/C, Western Union, Paypal, Alibaba secure payment, D/P.

What is warranty of your product?

25 years for heating cable & heating mat.
2 years for for constant wattage/self-regulating heating cable and thermostats.

Can you do OEM and ODM for us?

Yes, we are professional in providing OEM and ODM service. We support both standard and customized products, we can put your logo on the products. Our experienced R&D team will support technical questions.

How to control quality?

1. All the raw materials by ICQ(Incoming quality control).
2. IPQC(In Processing Quality control).
3. QC fully inspection before packing.
4. Before shipment, do fully inspection again.

Main Products

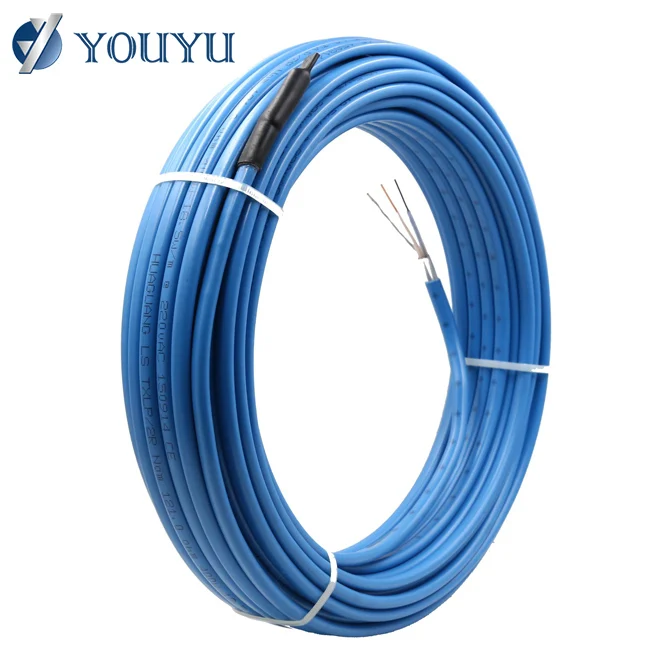

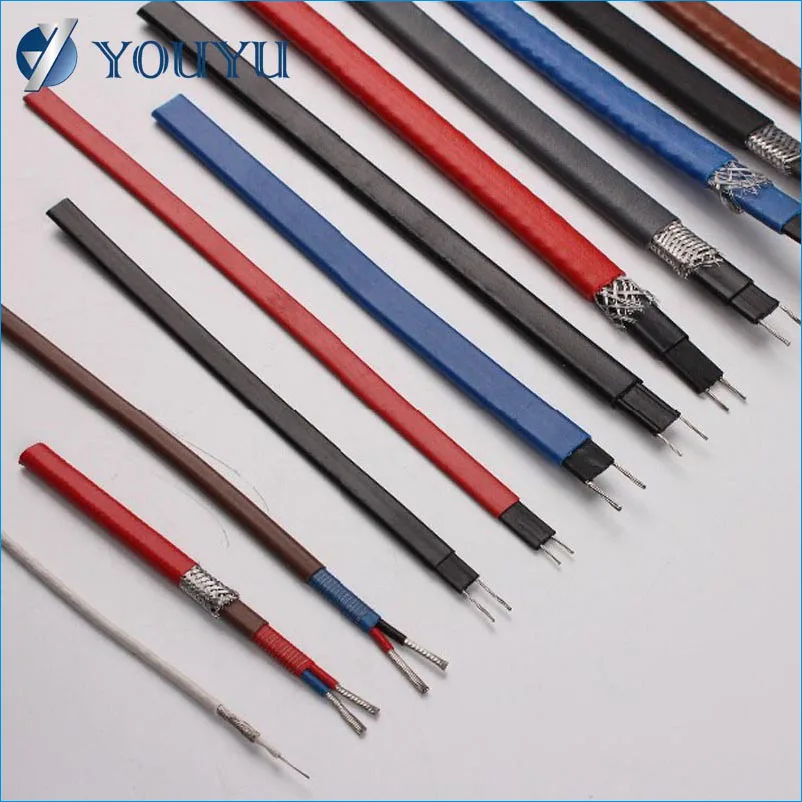

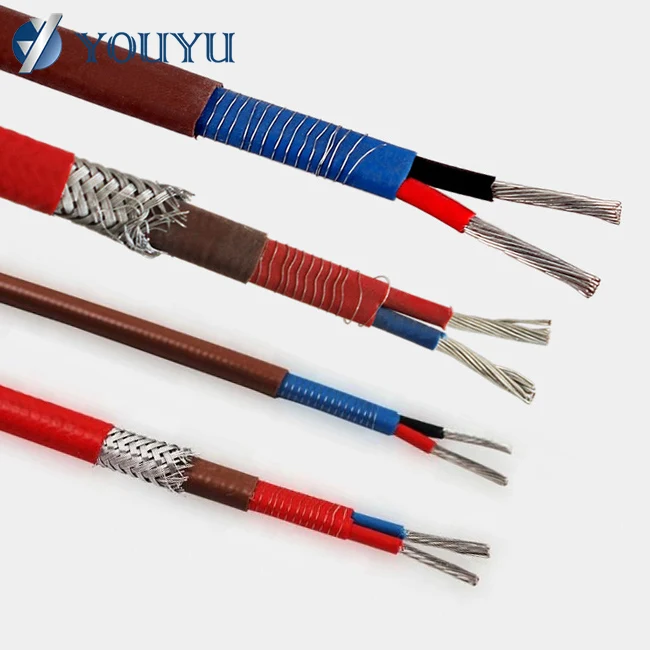

    Self Regulating Heating Cable          Constant Wattage Heating Cable                       Heating Cable

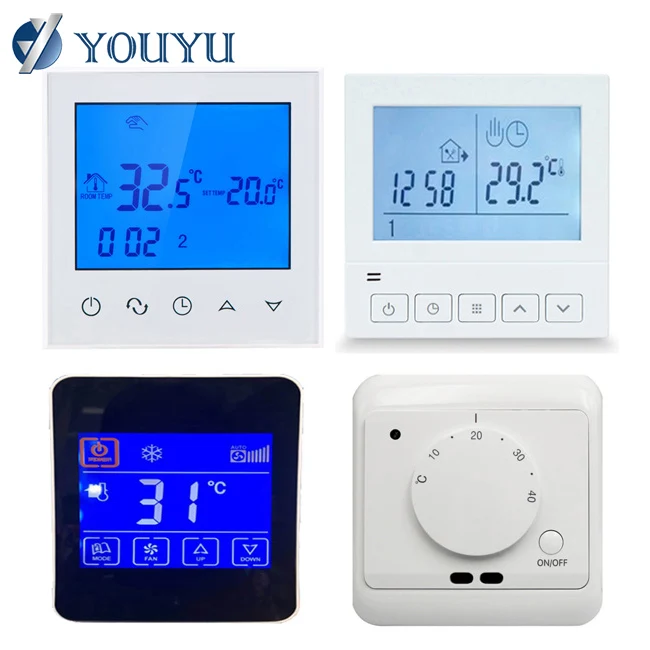

                     Thermostat                                 Underfloor Heating Mat                        Snow Melting Mat
