Self regulating heating cable low temperature 10 m/pc include 1.8 cold lead and plug bus wire 7*0.42

Product Introduction

Electric self-regulating temperature heating cable is the only one of electric thermostatic product of new generation, constructed of a semiconductor heater and two parallel bus wires with the addition of insulation layer. The heating elements are parallel to each other and its resistivity has a high Positive Temperature Coefficient” PTC”.

In each heating tracing band, circuits between the bus wires change with the ambient temperature. As temperature decreases, the heater’s resistance decreases which produces more output wattage; conversely, as temperature increases, resistance increases which lower the output wattage, loop back and forth.

The advantage of electric self-regulating temperature heating cable with other heating tracing products is that the temperature can be regulated automatically in a proper range.

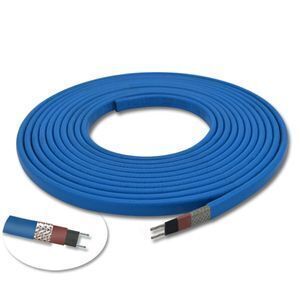

Product Dispaly

1.Tinned copper wires

2.Self-regulating conductive core

3.Thermoplastic insulation

4.Metal braid

5.Thermoplastic jacket

Product Application

self-regulating heating cable

self-regulating heating cable widely used in petroleum, chemical, steel, electricity and other fields.For industrial

pipelines, storage tanks and equipment with temperature control, heating, antifreezing.It’s applies to common areas,

dangerous areas, corrosive areas, explosion-proof areas and other complex environment.

Technical Parameter
