Driveway Ice Freeze Protection Floor Heating Cable Wire Kit With Digital Thermostat

Product details
Cold lead:33ft (10m) length;Outer Insulation:FEP,PVC,XLPE;
Number of Conductor:1~2;Output:8.5w/ft(28w/m)+-10%;
Package Preview:;Selling Units:Single item;
Jacket:XLPE,FEP,PVC;Single package size:30X30X30 cm;
Conductor insulation:XLPE,FEP,PVC;Bending radius:38mm;
Insulation Material:FEP,PVC,XLPE;Application:Pipe heating trace / roof & gutter de-icing,Pipe Heating;
Rated Voltage:230V;Single gross weight:2.000 KG;
Place of Origin:Anhui, China;Packaging Detail:Driveway Ice Freeze Protection Floor Heating Cable Wire Kit With Digital Thermostat: 1. 200m, 400m or 500m in a carton; 2. We can provide customized packing as request if the order quantity is big enough.;
Number of Conductors:Customers' Demand;Min. Installation Temp.:-20℃;
Model Number:Customized;Brand Name:YouYu;
Conductor Material:Copper,Copper;

Driveway Ice Freeze Protection Floor Heating Cable Wire Kit With Digital Thermostat

Product Description

Product Dispaly of 2018 Best Price Custom Watery Resistant 18w Single Core Heating Cable

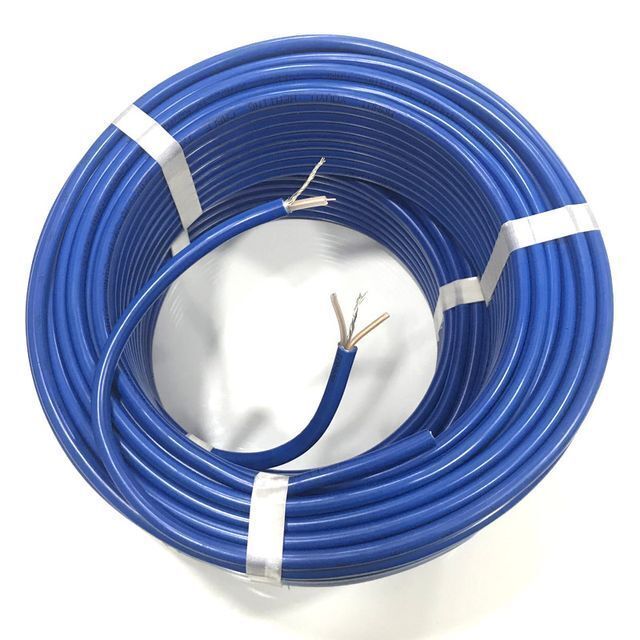

Single conductor heating cable
Twin conductor heating cable
1.Nickel alloy wire1.Nickel alloy wire
2.8 tinned copper wire2.8 tinned copper wire
3.Cross-linked PE insulation3.Cross-linked PE insulation
4.Armored shield4.Armored shield

5.PVC jacket

5.PVC jacket



Product Application

The single-conductor industrial heating system assembly use an implicit connector, the core of the industrial heating system is composed of a hot-cold wire, and the outside is made up of an insulating layer, a earth wire, a shielding layer and a sheath layer.After the industrial heating system is energized, the heating wire generates heat, running between the temperature 40-60 ℃, buried in the filler layer of industrial heating system, through the way of heat conduction and far-infrared radiation to the heated body.Twin conductor industrial heating system with implicit connector, industrial heating system core by the cold and hot cable, the outside by the insulation layer, earth wire, shielding and outer sheath composition. After the industrial heating system is energized, the heating wire generates heat and runs at a temperature between 40 and 60 degrees. The industrial heating system embedded in the filling layer will be transmitted to the heating body through heat conduction and far-infrared radiation. Twin conductor industrial heating system is mainly used for floor heating, soil heating, snow melting , livestock breeding.

Installation Steps

Technical Parameter

+







TXLP/1single conductor industrial heating system 220V 18.5W/M



Power(W)

Type

Voltage(V)

Standard Length(m)

Power /Per Meter(W/M)

Resistance(Ω)

3150

TXLP/1/18.5

220

170.3

18.5

15.4

3000

TXLP/1/18.5

220

162

18.5

16.1

2800

TXLP/1/18.5

220

151.4

18.5

17.3

2600

TXLP/1/18.5

220

140.5

18.5

18.6

2400

TXLP/1/18.5

220

129.7

18.5

20.2

2200

TXLP/1/18.5

220

118.9

18.5

22.0

2000

TXLP/1/18.5

220

108.1

18.5

24.2

1760

TXLP/1/18.5

220

95.1

18.5

27.5

1600

TXLP/1/18.5

220

86.5

18.5

30.3

1400

TXLP/1/18.5

220

75.7

18.5

34.6

1200

TXLP/1/18.5

220

64.9

18.5

40.3

1000

TXLP/1/18.5

220

54.1

18.5

48.4

850

TXLP/1/18.5

220

45.9

18.5

56.9

700

TXLP/1/18.5

220

37.8

18.5

69.1

600

TXLP/1/18.5

220

32.4

18.5

80.7

500

TXLP/1/18.5

220

27.0

18.5

96.8

400

TXLP/1/18.5

220

21.8

18.5

121.0

300

TXLP/1/18.5

220

16.2

18.5

161.3



Technical Parameter
+







TXLP/2twin conductor industrial heating system 220V 17W/M

Power(W)

    Type

Voltage(V)

Standard Length(M)

Power /Per Meter(W/M)

Resistance(Ω)

3300

TXLP/2/17

220

194.1

17

14.7

2800

TXLP/2/17

220

164.7

17

17.3

2600

TXLP/2/17

220

152.9

17

18.6

2400

TXLP/2/17

220

141

17

20.2

2100

TXLP/2/17

220

123.5

17

23.0

1700

TXLP/2/17

220

100.0

17

28.6

1370

TXLP/2/17

220

80.6

17

35.3

1250

TXLP/2/17

220

73.5

17

38.7

1000

TXLP/2/17

220

58.8

17

48.4

840

TXLP/2/17

220

49.4

17

57.6

700

TXLP/2/17

220

41.2

17

68.1

600

TXLP/2/17

220

35.3

17

80.7

500

TXLP/2/17

220

29.4

17

96.8

400

TXLP/2/17

220

23.5

17

121.0

300

TXLP/2/17

220

17.6

17

161.3



+

Product Structure

Technical Data

Product Structure

Technical Data

Out Jacket

PVC

Outside Diameter

7.5*6.5mm

Earth Wire

Tinned Copper Wire

Rated Voltage

220V(customize)

Shield

Copper Foil + Copper Wire

Power Output

17w/m (customize)

Conductor

Alloy Resistance Wire

Cold Length

2.25m

Conductor Insulation

XLPE

Max Surface Temperature

65℃

Connector

Injection Connector

Min Bending Coefficient

5D

Company Information



Client & Certificate



FAQ

Are you manufacturer or trading company?

We are professional heating cable manufacturer founded in 2012, located in Wuhu city, Anhui Province, China. Welcome to visit our factory!

What's the Minimum Order Quantity?

MOQ for heating mat is 500sq. m.
MOQ for self regulating heating cable is 1000m.
MOQ for constant wattage heating cable is 1000m.
MOQ for thermostats is 50 pieces.

Can I place a sample order first?

Yes, you can place sample order to check the quality and testing it. Parts of samples are free of charge. Delivery cost is on buyer's account.

What is your delivery time?

Normally within 7~15 days, big order should be negotiated.

What's the payment term?

T/T, L/C, Western Union, Paypal, Alibaba secure payment, D/P.

What is warranty of your product?

25 years for heating cable & heating mat.
2 years for for constant wattage/self-regulating heating cable and thermostats.

Can you do OEM and ODM for us?

Yes, we are professional in providing OEM and ODM service. We support both standard and customized products, we can put your logo on the products. Our experienced R&D team will support technical questions.

How to control quality?

1. All the raw materials by ICQ(Incoming quality control).
2. IPQC(In Processing Quality control).
3. QC fully inspection before packing.
4. Before shipment, do fully inspection again.

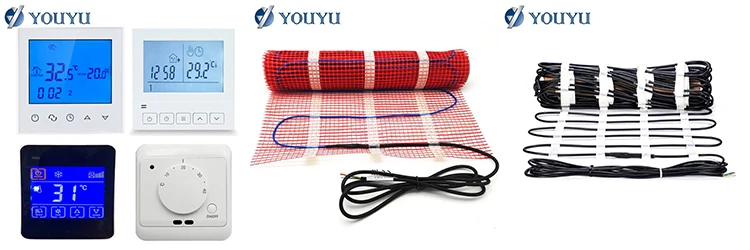

Main Products
