Multi function plastic acrylic ABS PC PS vacuum forming machine thermoforming machine

Supplier: Shandong Yuantong Century Intelligent Technology Co., Ltd.
Region: Shandong, China
Contact: Ms Daisy Zhang
Price: $5630.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	193015002250mm;	Packaging Detail:	Standard export package which can protect acrylic sign vacuum forming machine well Express = Sea shipping;
Certification:	CE, TUV, SGS;	Brand Name:	BaoYuanTong;
max press forming height:	130mm;	Type:	Vacuum Forming Machine;
Power(W):	17;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Working pressure:	3-6T;	Forming area:	1200*1300mm;
Condition:	New;	Max suction forming height:	80mm;
max blow forming height:	220mm;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Alipay;
Weight:	1200kg;	Key Selling Points:	Multifunctional;
vacuum pump output:	30m3/h;	Voltage:	380V/50HZ3P;
After-sales Service Provided:	Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support;	Functions:	pressing ,suction, blow;
Hydraulic pressure:	1-20T;	Port:	Qingdao Port ,Ningbo Port ,Shanghai Port ,Tianjin Port ,Guangzhou Port .......;
Plastic Type:	ABS,PVC,PET,PP,acrylic...;	Product Type:	ABS, PVC, PS, HIPS, PE, PC, PMMA;
Machine weight:	1200kg;	Voltage:	380V/50HZ/3P;
Place of Origin:	Shandong China;	Automatic:	Yes;
Supply Ability:	200 Set/Sets per Month;	Warranty:	1 Year;

Multi function plastic acrylic ABS PC PS vacuum forming machine thermoforming machine

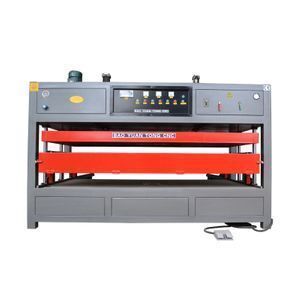

Product Appearance

Product Technical Data

Model	BXY-1500	BXY-2700	BXY-3000	BXY-3200
Working area(mm)	1300*1400	1400*2500	1900*2800	2100*3100
Power(kw)	8	14	22	24
Max. forming height	150mm	150mm	150mm	150mm
Hydraulic pressure	1-20T	1-20T	1-20T	1-20T
Working pressure	3-6T	3-6T	3-6T	3-6T
Voltage(V)	380V/220V	380V	380V	380V
Frequency	50-60HZ	50-60HZ	50-60HZ	50-60HZ
Machine weight	1200KG	1900KG	2300KG	2500KG

Product Features

1.) Adopt advanced technology,combine advantage of BX Series(suction) and BY Series(press and blow), with low invest, take up small area and more competitive.
2.) Suitable to make light box and angular letters, it is professional multi-function acrylic forming press machine.
3.) This machine finish the heating and pressing or suction on the sample place , save the time and labor cost.
4.) When use suction function use single mould, no waste and save material and cost.
5. Heating box sealed by thicken moisturize cotton ,uniform heating and heat preservation effect is good.

Press sample
Press function finish

products side and angle

is very standard

Absorbing sample
Absorbing finish sample

side and angle have radians

Blowing sample
Blowing can finish this

kind hemisphere

Application

1.) Advertising sign company
2.) and building industrial
3.) Plastic moulding & mask making
4.) Different packaging box making
5.) Thermoplastic material forming
6.) Suitable material : PMMA(Acrylic ), PVC,ABS,PE,PET ,Poly styrene ,poly propylene ect.

Samples

Customized service

Our Company

Shandong Yuantong Century Intelligent Technology Co.,Ltd build in 1996 and owns

registered trademark BYT ,mainly produce signage and woodworking equipment, There is CNC router, vacuum forming machine, channel letter bending machine,laser machine and Metal etching machine ect.
My factory through SGS certification and the the product get the CE and FDA , export to more than 152 countries.Adhering to " quality first ,customer first" business philosophy" ,looking forward to your message , begin our cooperation .
