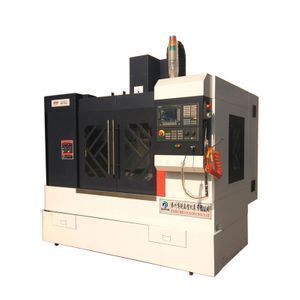

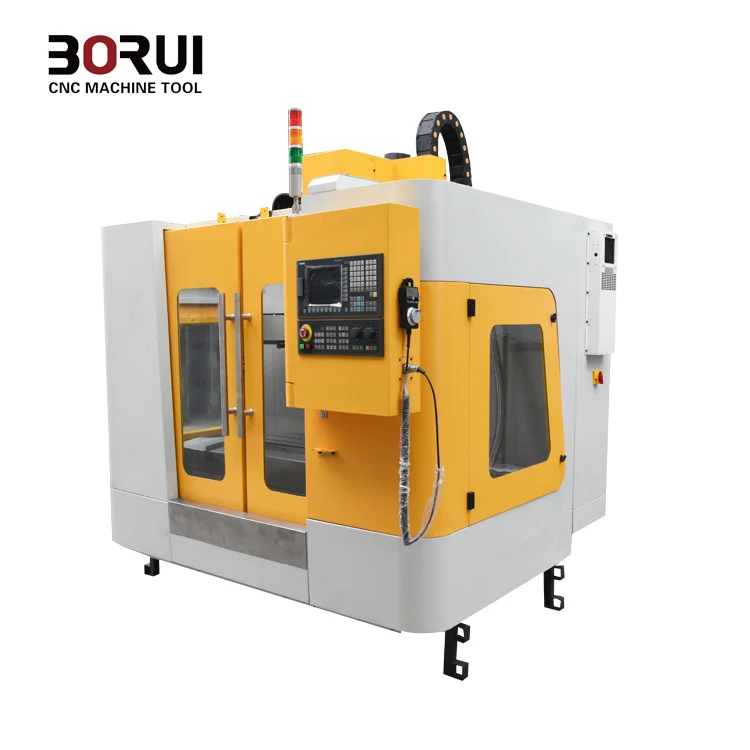

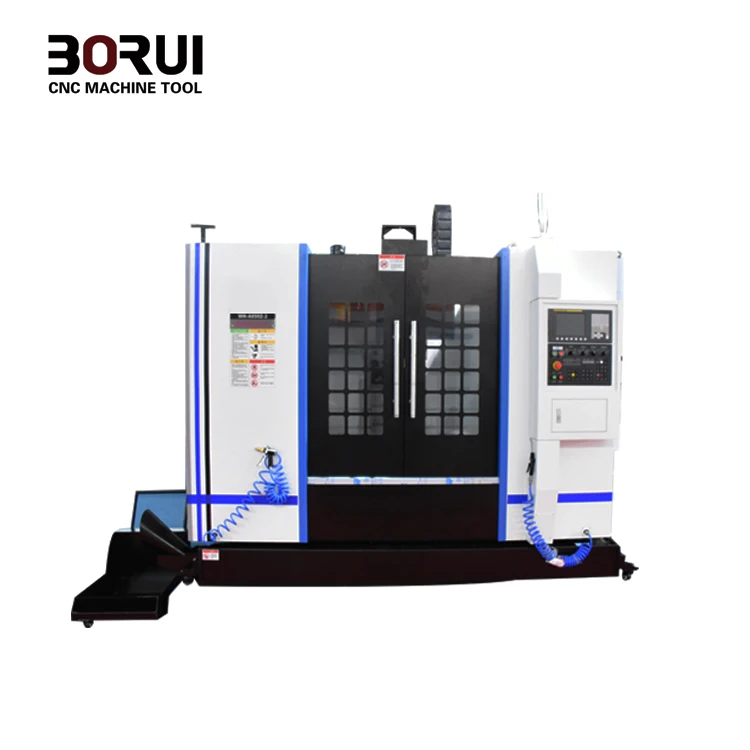

XH7124 Widely Used 3-Axis CNC Milling Machine

Supplier: Tengzhou Borui CNC Machine Tool Co., Ltd.
Region: Shandong, China
Contact: Mr hemingway hu
Price: $8440.00 /set
Min. Order: 1 set

Click here to contact

Product details

Machine Type:	Cnc Vertical Milling Machine;	Table Travel (Y) (mm):	380;
Max. Table Load(kg):	200 kg;	Product name:	Milling Machine Center Frame;
Spindle Motor Power(kW):	3.7kw;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Name:	CNC Milling Machine XK7124;	Range of Spindle Speed(r.p.m):	60 - 8000;
Table Travel (mm):	450*380;	CNC or Not:	CNC;
Work Table Size:	1270X254mm;	Spindle Speed:	8000rpm;
CNC Control System:	Siemens;	Application:	Metal Machining;
Type:	Vertical;	Year:	new;
Voltage:	380V;	Packaging Detail:	2 Axis Milling Machine Plywood case One miller per case 1516x1550x2080 Two miller per case 1680x1790x2170 Three miller per case 1650x2285x2235;
Table size:	1000*240;	Model Number:	xh7124;
Weight (KG):	2400;	No. of Spindles:	Single;
Place of Origin:	Shandong China;	Condition:	New;
Certification:	CE Certificate;	After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Dimension(LWH):	1500 * 1600 * 2000mm;	Repeatability (X/Y/Z) (mm):	0.001;
Power(W):	3KW;	Precision:	High Precision;
Key Selling Points:	Competitive Price;	Number of Axes:	4;
Table Travel (X) (mm):	450;	Brand Name:	BORUI;
Machining Capacity:	Medium Duty;	Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Home Use,Construction works ,Energy & Mining;
Supply Ability:	20 Set/Sets per Month;	T-slot No. and size:	3x16;
Positioning Accuracy (mm):	0.005;	Warranty:	One Year;
Spindle Taper:	BT40;	Port:	QingDao Port OR Shang Hai Port;
Table Travel (Z) (mm):	400;

XH7124 Widely Used 3-Axis CNC Milling Machine

Product Description

The machine feature and specification .

1.The machine has good rigidity, convenient and flexible operation, the machine could Vertical milling and drilling expansion can be boring and tapping ,have wide using range, especially suitable for processing all kinds of complicated shape of two 3d concave and convex mould and complex of the surface of the cavity and more suitable for batch processing ,Suitable for high precision mould car ,locomotive, aerospace instrumentation Light industrial textile electronic apparatus, and machinery manufacturing industries such as processing of small and medium-sized box cover plate shell plate parts

2.Machine base, column, spindle box, table and other basic parts, all adopt high-intensity Lost Foam molding technology, the internal microstructure stability, to ensure that the basic pieces has high stability. Casting structure through the machine dynamics analysis and finite element analysis, geometric structure to make it more reasonable, and the appropriate combination of ribs to ensure the high stiffness of the basic parts. Wide machine bed base, full load support design, to ensure that the heavy load when processing capacity.

3. high-speed high-rigidity spindle unit combined with the servo spindle motor; X / Y / Z using high-torque servo motor.

4.X / Y / Z adopt Taiwan's high-precision and high-strength ball screw with a pair of special ball screw bearings and high precision imported locking.

Main technical specifications of cnc milling machine:

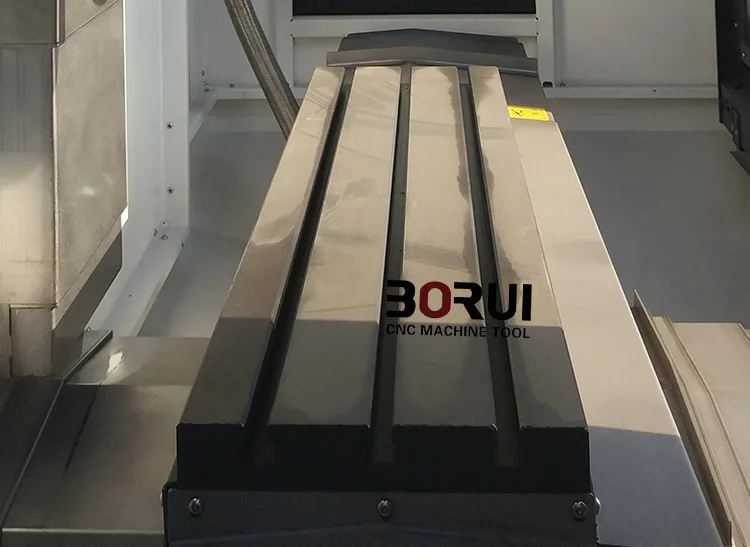

Table size	1000X240mm
Max. table load	300kg
T slot qty-width*distance	3-14x75
spindle speed	8000r p m
spindle nose to table surface	90-470mm
Spindle center to Column surface	360mm
Spindle taper	BT40
Main motor power	2.2/3.7kw (servo)
X axis travel	450mm
Y axis travel	380mm
Z axis travel	400mm
X/Y/Z axis rapid feed	15/15/15m/min
Positioning accuracy	±0.01mm
Repeatabeility accuracy	±0.005mm
Net Weight	2400 kg
Overall Dimension	1900X1620X2000

The main machine tool parts

Serial number	Name	model	Origin	Quantity

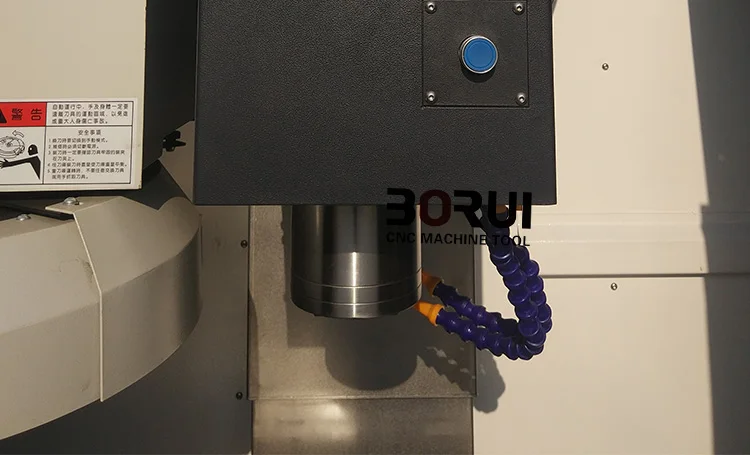

1	Spindle unit	BT40	Taiwan posn	1
2	Pressed cylinder		Taiwan Haocheng	1

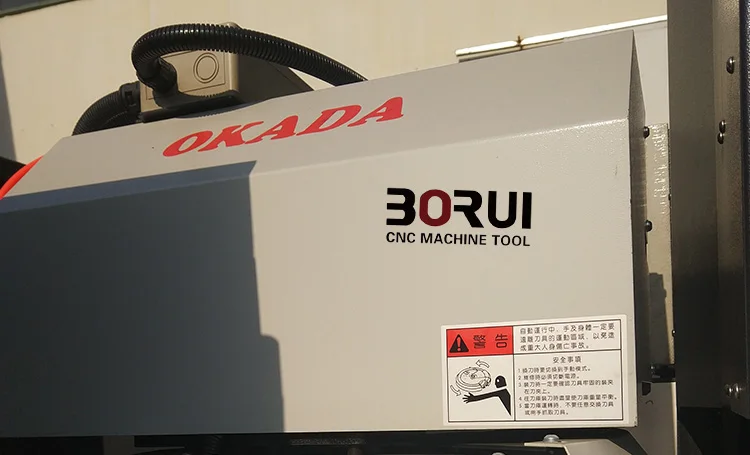

3	ATC	12	Taiwan okada	1
4	X Ball Screws		Taiwan Hiwin	1
5	y Ball Screws		Taiwan Hiwin	1
6	Z Ball Screws		Taiwan Hiwin	1
7	guide	X, Y,Z all is linear way	Taiwan Hiwin	3
8	Cooling the pump	PMY-25-5	china	1
9	Lubrication system	Single wire damping	Taiwan Hurun	1
10	Pneumatic system		Taiwan Airtac	1

Standard configuration:

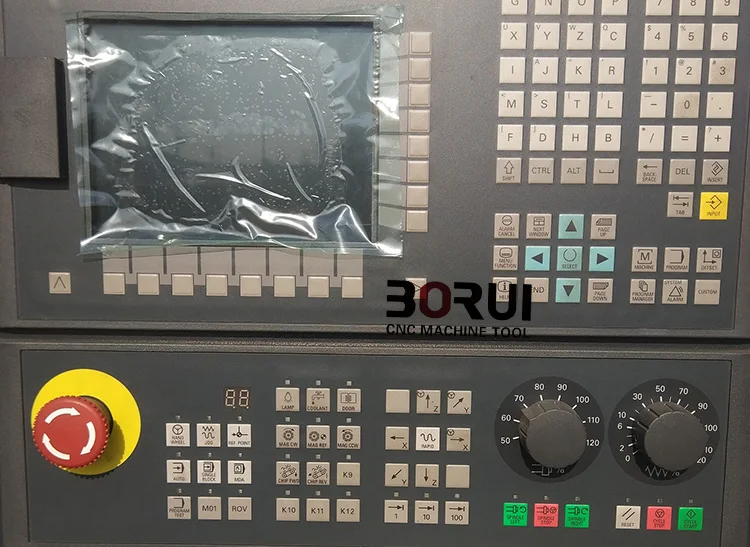

1.The CNC system: KND2000M

2.The knife: The famous Taiwan bamboo hat knife.

3.The unclamping cylinder: Taiwan Shangpin

4.The weight: Wuxi Xieqing nitrogen balance

5.The high quality castings: Resin sand casting

6.The spindle: Taiwan famous high speed spindle

7.The screw: HIWIN

8.The bearing: Japan NTN

9.The Internal protection: Total protection

Select the configuration:

1.M70B/M70A Mitsubishi FANUC 0i mate MD

2.The CNC dividing head

3.The taiwan famous brand manipulator knife storehouse

4.NC rotary table

5.The chip cleaner

6.The fourth axis

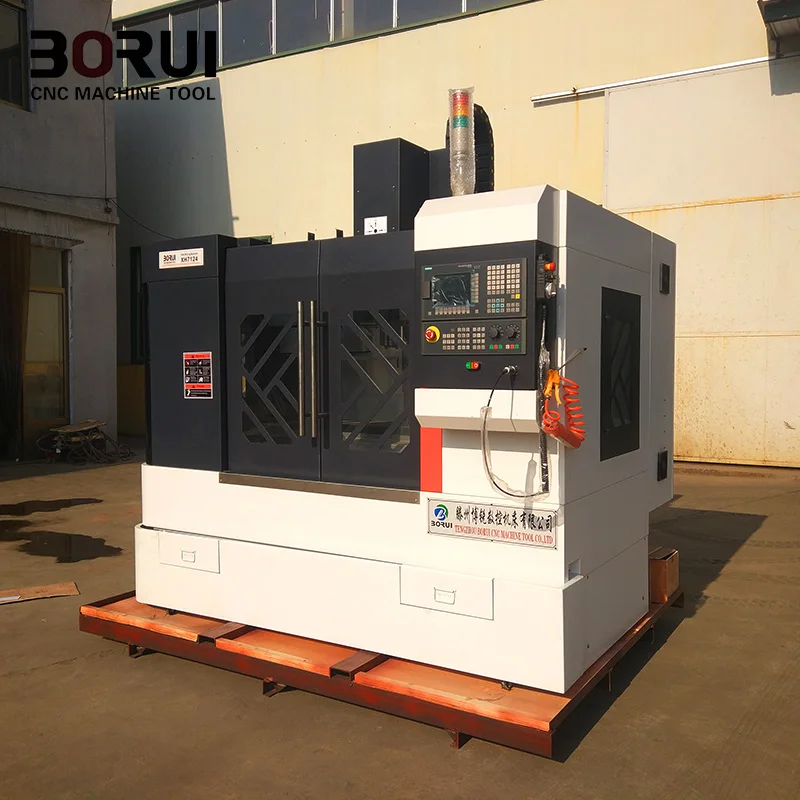

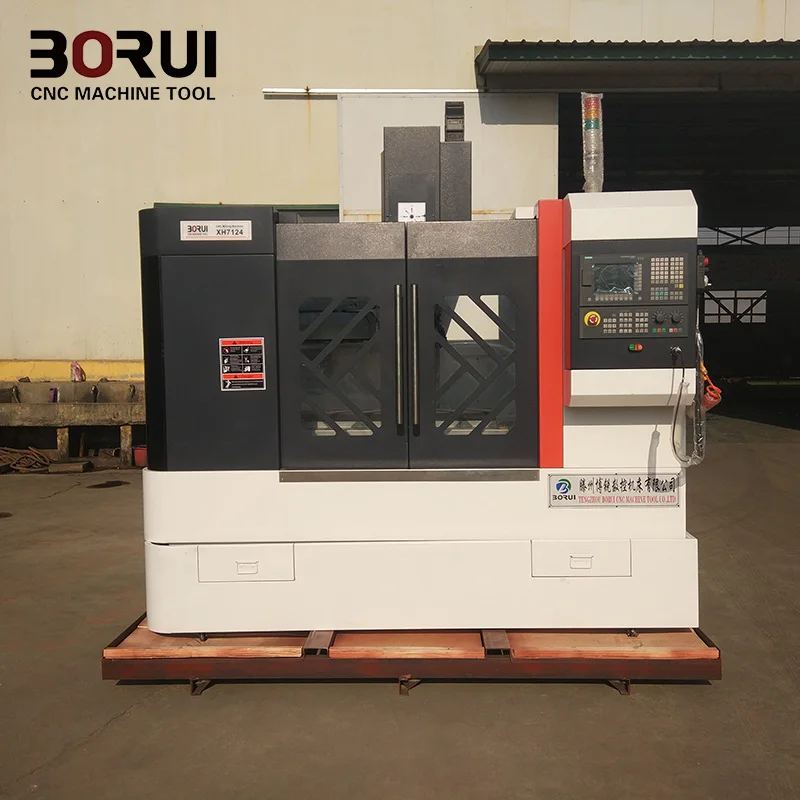

Detailed Images

hot sale


XH7124 vertical machining center	VMC600 vertical machining center	VMC650 vertical machining center

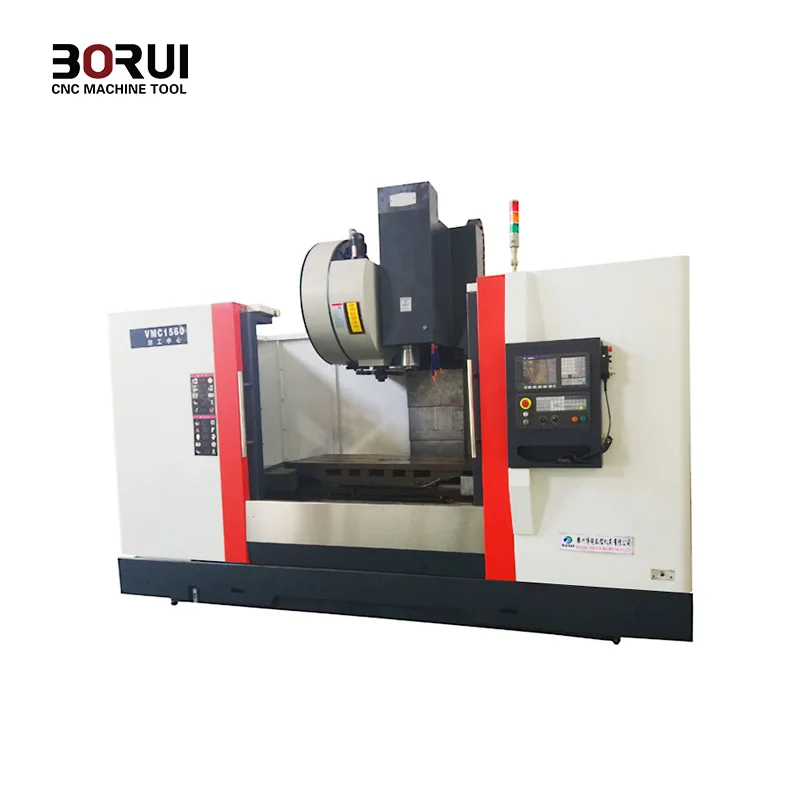

VMC850 vertical machining center	VMC1270 vertical machining center	VMC1580 vertical machining center
