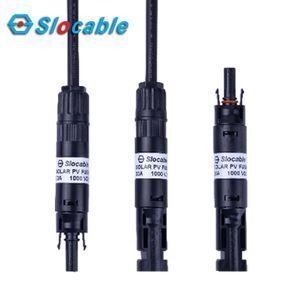

1A 10A 12A 15A 20A 30A solar DC fuse connector fusible mc4
-
Supplier: Dongguan Slocable Photovoltaic Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Abby Peng -
Price: $4.80 / >=5 pieces -
Min. Order: 5 pieces
| Package Type: | Standard carton (500pcs /ctn) size:40*26*31cm N.W.: 19kg , G.W.: 20kg; | Contact material: | Copper,Tin plated; |
| Connection system: | Crimp connection; | Single gross weight: | 0.038 KG; |
| Brand Name: | Slocable; | Flame class: | V0; |
| Package Preview: | https://sc02.alicdn.com/kf/H600540dafcea4a33ae24044707a76156H.jpg_640x640.jpg; | Model Number: | CN40-FH solar fuse holder; |
| Rated voltage: | 1000V DC; | Single package size: | 14X4X1 cm; |
| Degree of protection: | IP67; | Temperature range: | -40~+125 degree; |
| Certification: | CE; | Place of Origin: | Guangdong China; |
| Rated current: | 1~30A(according to fuse); | Insulation material: | PPO; |
| Selling Units: | Single item; |
1A 10A 12A 15A 20A 30A solar DC fuse connector fusible mc4
Description:
·Simple on-site processing
·Accomodates different specifications of the fuse
·High current carrying capacity
·Circuit protection
·Protection class IP67 guarantees the highest connection safety
·Patent product
·CE approved
Attention:The Amp of PV Fuse Holder can be replaced by
1A ,2A, 4A, 6A, 8A, 10A, 12A,15A,20A,30A.
Technicale Data:
| Insulation Material: | PPO | Contact material: | Copper,Tin plated |
Rated current: | 1A~30A (According to the fuse) | Insertion force: | Max. 50N |
| Rated Voltage: | 1000V/1500V DC | Withdrawal force: | Min. 50N |
| Test voltage: | 8kV(50Hz,1min) | Ambient temperature range: | -40℃~+90℃ |
| Contact resistance: | <5mΩ | Flame class: | UL94-V0 |
| Waterproof protection: | IP68 | Connecting system: | Crimping connection |
| Overvoltage degree: | CATIII/2 | Suitable cable cross section: | 2.5/4/6/10mm2, 14/12/10/8AWG |
Pictures:
Cooperation Projects :
Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?
Solar Cables, Solar Connectors (MC4,MC3,TYCO), PV Fuse Holder,Circuit breakers and other solar relative products.We're the Manufacturer with more than 9years experience.
Q2: How can I get the Quotation of the products ?
1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.
Q4: Do you provide OEM Project Service?
OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.
What's more, our R&D team will give you the professional suggestions.
Q5: How Could I get the Sample?
We are honored to offer you samples,Samples is free provided,but need pay the courier freight.
If you have a courier account, you can send your courier to collect samples.
Q6: How long is the delivery time?
1) For Sample: 1-3 Days ;
2) For small Orders: 3-10 Days;
3) For mass Orders: 10-18 Days.
If any inquiry, feel free to let me know !
