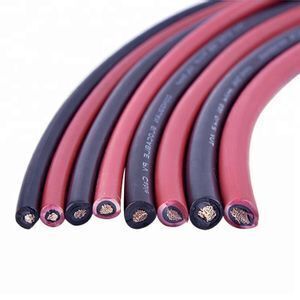

Slocable 25 working years TUV approved solar wire 10AWG 6mm PV cable

Product details
Application:power station;Certificate of 10AWG 6mm pv cable:TUV;
Conductor resistance of 6mm pv cable:3.39 /km;Single gross weight:0.1 KG;
Number of Conductors:1;Rated voltage of 10AWG 6mm pv cable:DC 1000V/1500V;
Place of Origin:Guangdong China;Insulation Material:Xlpe;
Outer diameter of 10AWG 6mm pv cable:7.2mm;Strand design of 10AWG 6mm pv cable:81x0.3mm;
Packaging Detail:50m/roll, 5.2kg/carton, 30x30x18cm 100m/roll,10.2kg/carton, 30x30x18cm 200m/roll,20.5kg/carton, 36x36x16cm;Conductor Material:Copper;
Single package size:30X30X18 cm;Model Number:1x6.0mm2 CA106-PE;
Jacket:PE;Brand Name:Slocable;
Package Preview:;Color of 10AWG 6mm pv cable:Black & Red;
Conductor diameter of 10AWG 6mm pv cable:3.3mm;Rated current of 10AWG 6mm pv cable:70 A;
Insulation material of 6mm pv cable:XLPE;Cross section of 10AWG 6mm pv cable:6.0square;
Selling Units:Single item;

Slocable 25 working years TUV approved solar wire 10AWG 6mm PV cable

Advantage:

·Dual wall insulation.Electron beam cross-linked

·Excellent resistance to U.V,oil,greases,oxygen and ozone

·Excellent resistance to abrasion

·Halogen free, flame retardant,low toxicity

·Excellent flexibility and stripping performance

·High Voltage and Current carring capacity

·TUV approved





Description:

 Copper wire  :  99.7% copper, tinned  UV resistance
 Insulation material  :  XLPE(XLPO)  High voltage and High current
 Double walls insulated  Temperature range  :  -40℃~90℃
 Halogen-free material  Color  :  Black / Red / Blue

 Flame test according to   :

 DIN EN 50265-2-1 / UL1571(VW-1)

 Smallest permisssible bending radius  :

 5xD







































Our Projects :

\

FAQ
FAQ

Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?

PV Solar Cables, PV Solar Connectors, PV Fuse Holder,Circuit breakers and other solar relative products.We're the Manufacturer with more than 12 years experience.

Q2: How can I get the Quotation of the products ?

Send your Message to us by E-mail / TradeManager,We'll reply you within 2 hour in the Working Time.
Q3: How does your company do regarding Quality Control?

1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.

Q4: Do you provide OEM Project Service?
OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.

What's more, our R&D team will give you the professional suggestions.

Q5: How Could I get the Sample?

We are honored to offer you samples,Samples is free provided,but need pay the courier freight.

If you have a courier account, you can send your courier to collect samples.

Q6: How long is the delivery time?
1) For Sample: 1-3 Days ;
2) For small Orders: 3-10 Days;
3) For mass Orders: 10-18 Days.

If any inquiry, feel free to let me know !
