Slocable High Quality Customized XLPE Insulated TUV Single Core PV Cable Solar Cable 6mm

Supplier: Dongguan Slocable Photovoltaic Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Abby Peng
Price: $0.62 / >=20 meters
Min. Order: 20 meters

Click here to contact

Product details

Package Preview:	https://sc01.alicdn.com/kf/Ha5bb622f362d407687d69c5f7540484c4.jpg_640x640.jpg,https://sc02.alicdn.com/kf/H14610d02ab3c44578b9761b48ba0796dL.jpg_640x640.jpg;	Approved:	TUV , CE;
Brand Name:	Slocable;	Selling Units:	Single item;
Conductor Material:	Copper;	Temperature Range:	-40℃ ~ +90℃;
Jacket:	XLPE(XLPO);	Type:	High Voltage;
Package Type:	200meters one roll, 1 rolls in a carton. Size:36cm36cm18cm, 0.024cbm GW:20kg;	Single gross weight:	0.11 KG;
Model Number:	CA106B-PE Solar cable;	Colours of 6mm PV Cable:	Black & Red;
Rated current:	70A;	Conductor Material:	Copper, tin plated;
Conductor Structure:	81*0.3;	Flame Test According to:	DIN EN 50265-2-1;
Application:	Solar PV system;	Insulation Material:	XLPE(XLPO);
Single package size:	100X100X0.75 cm;	Place of Origin:	Guangdong China;
Smallest Permissible Bending Radius:	5*D;	Rated voltage of 6mm PV Cable:	DC1000V 1500V;
Insulation Material:	XLPE;

Slocable High Quality Customized XLPE Insulated TUV Single Core PV Cable Solar Cable 6mm

Product Description

Description:

Conductor: 99.7% copper, tinned	UV resistance
Insulation material: XLPE(XLPO)	High voltage and High current
Double walls insulation	Temperature range: -40℃~90℃
Halogen-free material	Color: Black / Red / Blue
Flame test according to: DIN EN 50265-2-1 / UL 1571(VW-1)	Smallest permisssible bending radius: 5xD

Advantages:

Dual wall insulation.Electron beam cross-linked
Excellent resistance to U.V,oil,greases,oxygen and ozone
Excellent resistance to abrasion
Halogen free, flame retardant,low toxicity
Excellent flexibility and stripping performance
High Voltage and Current carring capacity
TUV,CE approved

Technical Data

Technical Data of single core:

Size	Cross Section	Conductor Structure	Outer Diameter	Max. DC Resistance at 20℃	Rated Voltage	Rated Current
Size	mm2	mm	mm	Ω/km	V	A
1x2.5mm2	2.5mm2	49xΦ0.25	5.1	8.06	1000/1500	30
1x4.0mm2	4.0mm2	56xΦ0.285	6.1	4.97	1000/1500	50
1x6.0mm2	6.0mm2	78xΦ0.3	6.4	3.52	1000/1500	70
1x10mm2	10mm2	74xΦ0.4	7.3	2.12	1000/1500	95

Technical Data of double core:

Size	Cross Section	Conductor Structure	Outer Diameter	Max. DC Resistance at 20℃	Rated Voltage	Rated Current
Size	mm2	mm	mm	Ω/km	V	A
2x2.5mm2	2.5mm2	49xΦ0.25	5.1x10.9	8.06	1000/1500	30
2x4.0mm2	4.0mm2	56xΦ0.285	6.1x12.3	4.97	1000/1500	50
2x6.0mm2	6.0mm2	78xΦ0.3	6.4x12.9	3.52	1000/1500	70

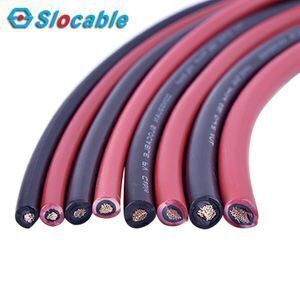

Product Photos

Pictures:

Our Factory

Packaging & Shipping

Cooperation Case

Our Projects :

FAQ

Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?

Solar Cables, Solar Connectors (MC4,MC3,TYCO), PV Fuse Holder,Circuit breakers and other solar relative products.We're the Manufacturer with more than 11 years experience.

Q2: How can I get the Quotation of the products ?

Send your Message to us by E-mail / TradeManager,We'll reply you within 2 hours in the Working Time.

Q3: How does your company do regarding Quality Control?

1) All raw material we selected the high quality one.
2) Professional & Skilful workers care every details in handling the producing.
3) Quality Control Department specially responsible for quality checking in each process.

Q4: Do you provide OEM Project Service?
OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.

What's more, our R&D team will give you the professional suggestions.

Q5: How Could I get the Sample?

We are honored to offer you samples,Samples is free provided,but need pay the courier freight.

If you have a courier account, you can send your courier to collect samples.

Q6: How long is the Delivery Time?
1) For Sample: 1-3 Days ;
2) For small Orders: 3-10 Days;
3) For mass Orders: 10-18 Days.

If any inquiry, feel free to let me know !
