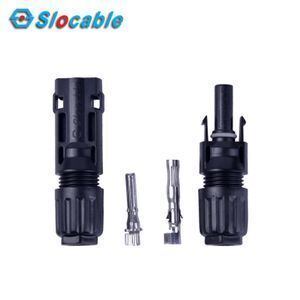

TUV waterproof DC connector MC4 solar connector for solar PV system

Product details
Rated current of MC4 solar connector:30A 50A;Gender:male and female;
Pins:1P;Brand Name:Slocable;
Package Preview:https://sc01.alicdn.com/kf/HTB1ONclJrGYBuNjy0Foq6AiBFXa2.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1QAZHJxSYBuNjSspjq6x73VXaw.jpg_640x640.jpg;Degree protection MC4 solar connector:IP68;
Quality assurance MC4 solar connector:5 years;Brand:Slocable;
Approval of MC4 solar connector:TUV;Contact material of MC4 solar connector:Copper, Tin plated;
Rated voltage of MC4 solar connector:1000V 1500V;Temperaturer range:-40~+85℃;
Application:Solar energy system;Test voltage of MC4 solar connector:6000V;
Model Number:CN40-CM solar connector;Single package size:12X4X4 cm;
Selling Units:Single item;Insulation material MC4 solar connector:PPO;
Single gross weight:0.022 KG;Package Type:50pcs/bag, 50pairs/carton, 1.3kg/carton(50pairs);
Place of Origin:Guangdong China;Type:MCX;



TUV waterproof DC connector MC4 solar connector for solar PV system



Product Description



Description:

·Simple on-site processing

·Mating safety provided by keyed housings

·Mutiple plugging and unplugging cycles

·Accomodates PV cable with deferent insulation diamaters

·High Voltage and Current carrying capacity

·TUV and CE approved

·Competitive price





Technical Data



Technicale Data:

 Insulation Material: PPO Contact material: Copper,Tin plated

 Rated current:

 30A(2.5mm2),

 50A(4mm2,6mm2)

 Insertion force: Max. 50N
 Rated Voltage: 1000V/1500V DC Withdrawal force: Min. 50N
 Test voltage:   8kV(50Hz,1min)  Ambient temperature  range: -40℃~+85℃
 Contact resistance: <5mΩ Flame class: UL94-V0
 Waterproof protection:  IP68 Connecting system: Crimping connection
 Overvoltage degree:

 CATIII/2

 Suitable cable cross  section:

 2.5/4/6mm2,  14/12/10AWG



Detailed Images

















Quality Comparison





Company Information















Packaging & Shipping





Our Projects :


FAQ



Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?

Solar Cables, Solar Connectors (MC4,MC3,TYCO), PV Fuse Holder,Circuit breakers and other solar relative products.We're the Manufacturer with more than 9years experience.

Q2: How can I get the Quotation of the products ?

Send your Message to us by E-mail / TradeManager,We'll reply you within 1 hour in the Working Time.
Q3: How does your company do regarding Quality Control?

1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.

Q4: Do you provide OEM Project Service?
OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.

What's more, our R&D team will give you the professional suggestions.

Q5: How Could I get the Sample?

We are honored to offer you samples,Samples is free provided,but need pay the courier freight.

If you have a courier account, you can send your courier to collect samples.

Q6: How long is the delivery time?
1) For Sample: 1-3 Days ;
2) For small Orders: 3-10 Days;
3) For mass Orders: 10-18 Days.
