Brazing material copper solder paste

Product details
Appearance:paste;Payment Terms:T/T,Western Union,MoneyGram,Credit Card;
Port:Zhengzhou by air or express, Qingdao ,Tianjin, Shanghai;Delivery:within 7 days;
Quality:Super;Color:deep brown;
Place of Origin:Henan China;Application:for welding between non-ferrous metals and ferroue metals;
Brand Name:YJ;Brand name:Yuanjie;
Product name:Brazing material copper solder paste;Supply Ability:1500 Kilogram/Kilograms per Day;
Material:flux, binder, alloy powder;Packaging Detail:250g, 500g per can, 1kg/can, 1.5kg per can, other packing according to customer's requirement;

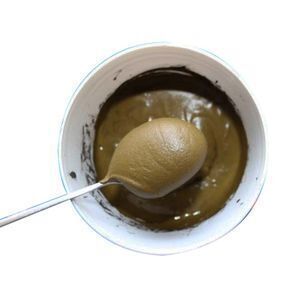

Brazing material copper solder paste

Description of the copper brazing paste.

Cemented carbide tools used solder variety, dosage is one of the largest copper metallurgical and silver based solder. Pure copper brazing alloy and copper base filler metals is the most commonly used solder when brazing carbide. Pure copper solder joint high plasticity, but in working temperature higher than 320 ℃, the joint strength rapidly reduced, therefore, not suitable for working under high temperature. Melting temperature is lower than the purity of copper base filler metals are mostly base copper zinc alloy, adding manganese nickel elements such as improve the weld strength, at 320 ℃, has higher strength.

Silver based solder, comprehensive performance is better than that of copper base filler metals are also often join manganese nickel improve the wettability of solder, improve the weld strength and joint working temperature. Silver based solder brazing temperature is usually lower than copper base filler metals.

In operating temperature above 500, carbide brazing joint strength to demand higher, can use cobalt nickel metallurgical and metallurgical.





 Solder compositionThe melting range(℃)Recommend the brazing temperature(℃)
 EBN110 Cu>99.7 1083 1093-1149
 CDA110
 BCu-1a
 CuZn40 Cu60 Zn40 888-899 910-954
 Cu48ZnNi Cu48 Zn42 Ni10 921-935 938-982
 CuMn10Co3 Cu87 Mn10 Co3 960-1030 1010-1093
 CuMn12Ni2 Cu86 Mn12 Ni2 970-990 1000-1093
 CuZnMn4Co Cu60 Zn34.8 Mn4 Co1.2 890-930 935-1040
 CuZnMn4Ni6 Cu55 Zn35 Mn4 Ni6 880-920 925-1040
 EBN495 Ag49 Cu16 Zn23 Mn7.5 Ni4.5 680-699 699-830
 BNi2 Ni82.9 Cr7 Fe3 Si4.1 B3.1 971-999 1010-1177
 BCo-1 Ni17 Cr19 Co51 Fe1 Si8 W4 1120-1149 1149-1232

What is the usage of the copper brazing paste?

Copper solder paste is mainly used for Cemented carbide tools brazing.

PACKING of our  copper brazing paste:

Normal packaging:

Other packing can be customized according to customer's requirement




Service of our copper brazing paste:

1.Customized products

2. Free sample

3. Brazing technology communication
