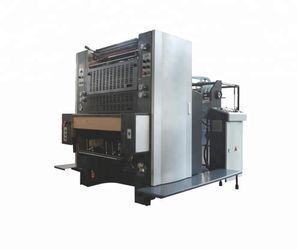

PRY-1660E Automatic 1 color paper offset printing machine

Product details
Blanket size:680*675*1.9mm;Color & Page:Single Color;
Certification:CE;Supply Ability:10 Set/Sets per Month;
Name:PRY-1660E Automatic 1 color paper offset printing machine;Brand Name:Printyoung;
After-sales Service Provided:Engineers available to service machinery overseas;Automatic Grade:Automatic;
Minimum sheet size:250*330mm;Sheet thickness:0.04-0.45mm;
Maximum image area:470*650mm;Condition:New;
Warranty:1 Year;Applicable Industries:Printing Shops;
Weight:3500kg;Place of Origin:Zhejiang China;
Maximum delivery pile height:420mm;Packaging Detail:wooden case each PRY-1660E Automatic 1 color paper offset printing machine;
Speed:12000s.p.h;Maximum sheet size:Maximum sheet size;
Payment Terms:L/C,T/T,Western Union;Type:Offset Printer;
Dimensions(L*W*H):2350*1960*1770mm;Port:Shanghai;
Voltage:220V/50Hz;After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Plate Type:Flatbed Printer;Usage:Bill Printer,Card Printer,Cloths Printer,Label Printer,Paper Printer,Tube Printer;
Plate size:625*675*0.3mm;



Product Description

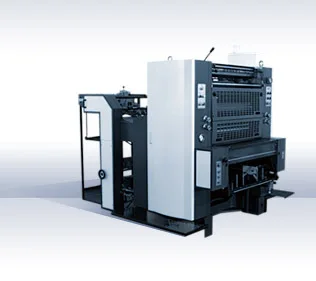

  PRY-1660E   Automatic 1 color paper offset printing machine





Features:

  1. The Driven system is equipped with Advanced Frequency Speed-regulating System. Thefunctions of forwards, backwards, low-speed run, constant velocity and braking are controlled by frequency converter. And the main motor is 4Kw Three-phase AC induction motor. ETR (Electronic Thermal Relay) protect motors from overload.
  2. Control circuit is controlled by PLC (Programmable Logical Controller) and Electronic sheet alignment control. When pressing the button FEED, the press is running automatically according to procedures, and inspect if there are double sheets, no sheets and distorted sheets or not automatically.
  3. Eccentric Swing-up gripper transfer system is equipped with the conjugate cam and the constant force device, which ensures to transfer sheets stably, accurately and reliably.
  4.  The pressure of Ink form rollers and water form rollers is adjusted by eccentric structure of worm and worm wheel, because of convenient operation.
  5.  The plate cylinder is equipped with a quick-action plate clamping system. It is easier and more convenient to install and remove plates.
  6. The cams are designed and optimized through computer and machined on the NC machine tools.
  7. The press is equipped with automatic centralized lubrication system of fixed point, fixed time and fixed quantity.
  8. The interferences (faults) display on the control console. It is easier for operator to detect the interferences (faults) sources.
  9. The feeder head is equipped with the patented rotary air distributing valve to clean the lint and dust out automatically.





Technical Parameter:



Model

PRY-1660E

Machine speed

12000s.p.h

Maximum sheet size

480×660mm

Minimum sheet size

250×330mm

Sheet thickness

0.04-0.45mm

Maximum image area

470×650mm

Plate size

625×675×0.3mm

Blanket size

680×675×1.9mm

Maximum feeder pile height

930mm

Maximum delivery pile height

420mm

Machine overall dimension

2350×1960×1770mm

Total power of motors

6.82kw

Weight

3500kg
