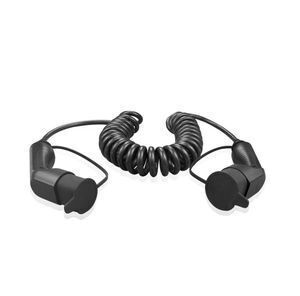

32A 5m EV Spring Cable / Spring Cord Type1 to Type2 For EV Charging
-
Supplier: Besen International Group (Nanjing) Trading Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Cathy Thron -
Price: $14.00 / >=100 pieces -
Min. Order: 100 pieces
| Certifications: | CE, TUV(Rheinland); | Selling Units: | Single item; |
| Key Words: | type1 32a spring 62196; | OEM Service: | Yes; |
| Place of Origin: | CHINA; | Single gross weight: | 4 KG; |
| Model Number: | BS-CHC008-S; | Cable: | 5m sprial cable; |
| Cable Standard: | Type 1 to Type 2 connector; | Package Type: | Exquisite carton; |
| Brand Name: | BESEN; | Plug Standard: | IEC 62196-2 / SAE J1772; |
| Charging Mode: | Mode 3 charging cable; | Insulation resistance: | 1000MΩ; |
| Protection Grade: | IP44; | Single package size: | 40X38X8 cm; |

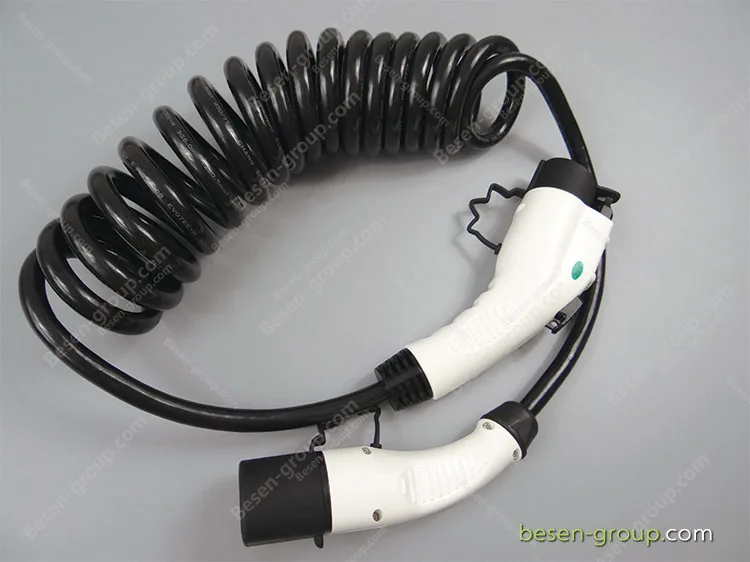

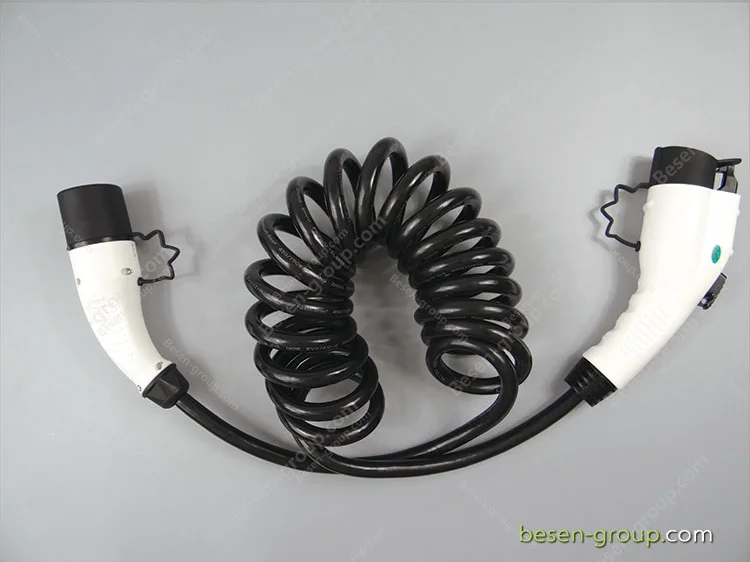

32A 5m EV SPRING CABLE Type1 to Type2 For EV Charging
Cord lenght: 3m, 5m or customized
Meet IEC 62196-2 (Mennekes, Type 2) EU European standard
Meet SAE J1772 2009 (Type 1) North American standard
Nice shape and easy to use, protection class IP54(in mated conditions)
.
Apply to Vehicle
for Chevrolet Volt, for Citroen C-Zero,for Fisker Karma, for Ford Focus Electric,for Ford C-Max Energi,for Mia,for Mia Electric Van,for Mitsubishi-I Miev,for Mitsubishi Outlander Phev,for Nissan NV200 SE Van,for Nissan Leaf, for Peugeot Ion,for Renault Fluence,for Renault Kangoo,for Smiths Edison Van,for Smiths Newton, for Tata Indica Vista EV, for Toyota Prius, for Vauxhall Ampera...
Parameters ( 32A type1 spiral cable )
Model: BS-CHC008-S
Reted current: 32A
Working voltage: 240V AC
Insulation resistance: > 1000M Ω
Terminal temperature rise: <50K
Withstand voltage: 2000V
Contact impedance: 0.5m Ω Max
Vibration resistance: Meet JDQ 53.3 requirements
Working temperature: -30°C ~+ 50°C
CE, TUV approved
Charging Cable Spec
TUV 3*6.0mm2+2*0.5mm2
Cord lenght: 3m, 5m or customized
Orange or Black
Materials
Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber.
.
Insert Arrangements & Functional Definition of type1 32a spring cable
Mark | Functional defination |
1-(L1) | AC power |
2-(L2) |
|
3-(L3) |
|
4-(N) | Netural |
5-(PE) | PE |
6-(CP) | Control confirmation |
7-(PP) | Connection confirmation |
.
Modle Selection & The Standard Wiring of type1 32a spring cable
Model | Number of inserts | Cable Spec. | Color | Remark |
BS-CHC007 16A Type1-Type2 | 7 | 3*2.5mm2+2*0.5mm2 |
Black orOrange | The length of the cable can be customized |
BS-CHC008 32A Type1- Type2 | 7 | 5*6.0mm2+2*0.5mm2 |
We have 6-years’ experience of producing EV charging products. Our products have been successfully applied in most of countries all over the world. From cold Norway to hot Saudi Arabia, you can see form of our products. We provide the most professional products and the best quality service to each customers.
--ABOUT BESEN GROUP--
.
We are one of the biggest EV parts manufacturers in China. The main products are Type 1/Type 2 connectors, sockets, cables and charging stations, and we have had pleasant business and long-term relationship with many Electric vehicle manufacturers, retailers, online stores, etc. OEM service is one advantage service we provide.
.
.

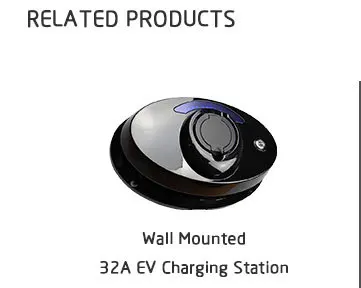

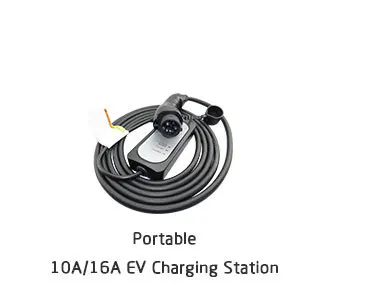

--OUR RELATED PRODUCTS--
.
Currently, we have abundant EV charging products, not only EV charging connector parts which can be used for EV charging stations and Electric Vehicles, but also wall-mounted EV charger and portable EV charging box for home use. Moreover, we are making research and development in our new products continuously.
.
.
-------------------------------------------------------
PLEASE CLICK THEM FOR DETAILED INFORMATIONS ! : )
--------------------------------------------------------------------------------------------
.
If you have any questions about our product: type1 32a spring cable , please contact us fell free.
.
Besides, in order to improve our service quality continuously, we sincerely hope you can offer us the valuable advice in the aspects of page layout and introduction of products.
For example:
1. We consider that you can make more introduction in the aspects of products’ details so as to make us have a clearer understanding
2. You can classify the European plugs and American plugs into one category, we regard that it can be convenient for clients to look up.
3. You can make the product description into form of table? So that it can be clear at a glance.
Any customers who provide advices and suggestions will be presented with a mystery gift together with your order.
If your advices can be adopted, we will give you extra 2%--5% discounts on your next order : )
.
.
BESEN, Leading The Charge To A Better Way To Drive !
.
.
.
.
