Communication Protocol: | MODBUS RTU; | brand: | YUMO; |
Single package size: | 20X15X10 cm; | Ambient Humidity: | 5%~95%RH; |
Input Type: | NPN/PNP; | code: | APB-22MRAL; |
Baud Rate: | 9600bps; | Rated Voltage: | DC12-24V; |
Ambient Temperature: | -10℃~+55℃; | Package Type: | carton; |
Model Number: | APB-22MRAL; | Memory Capacity: | 320 FBDs; |
Brand Name: | YUMO; | Single gross weight: | 0.6 KG; |
Selling Units: | Single item; | Programming Language: | FBD; |
Place of Origin: | Zhejiang China; |

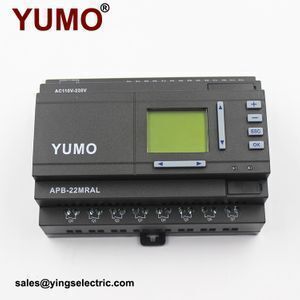

APB(Program m able Block) intelligent controller is a new type of program m able controller, being program m ed by the use of Function Block Diagram s. The program m ing of APB is sim pler and easier to learn than that of a conventional PLC, which uses ladder diagram s and associated instructions. The design concept for APB series is to program the APB series m ain m achine and APB-H M I with the provided free program software, free from connecting to another H M I. APB-H M I is able to display the input/output status of APB series, the set value and running value of tim er, counter, and analog function blocks, which facilitates the operator to m onitor and control of PLC running status at real tim e. Currently, APB is widely used in m any fields of industry, com m erce, m ining, agriculture, hom e autom ation etc.

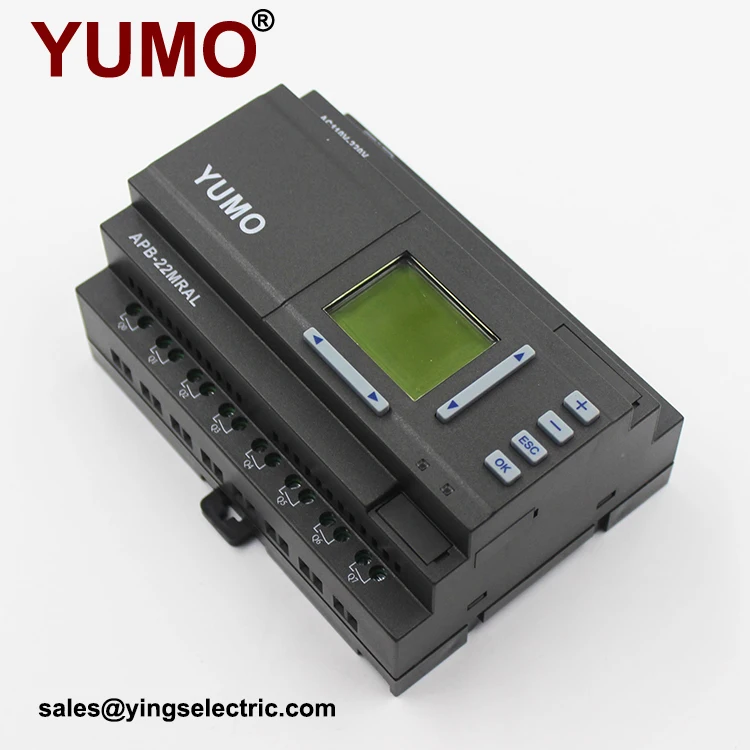

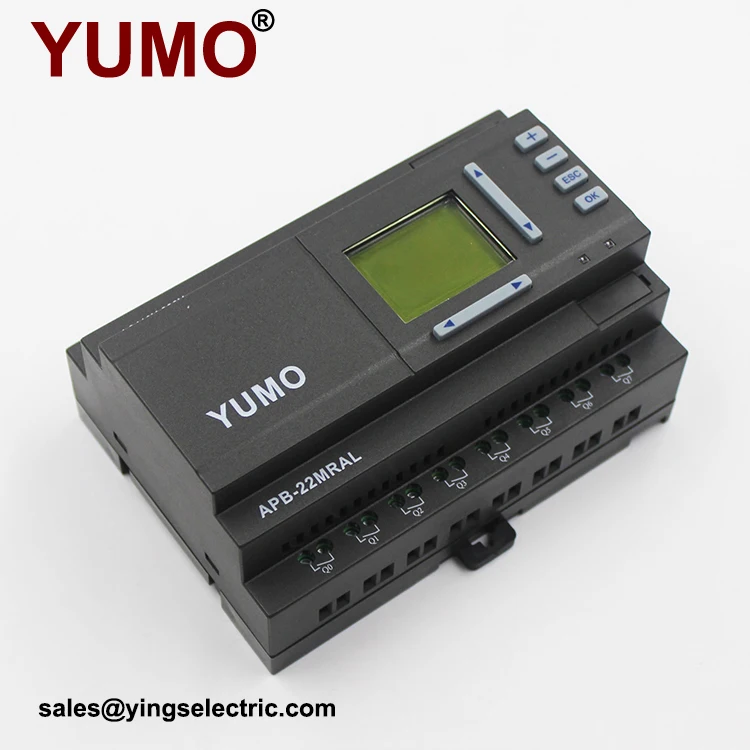

Structure of APB Series

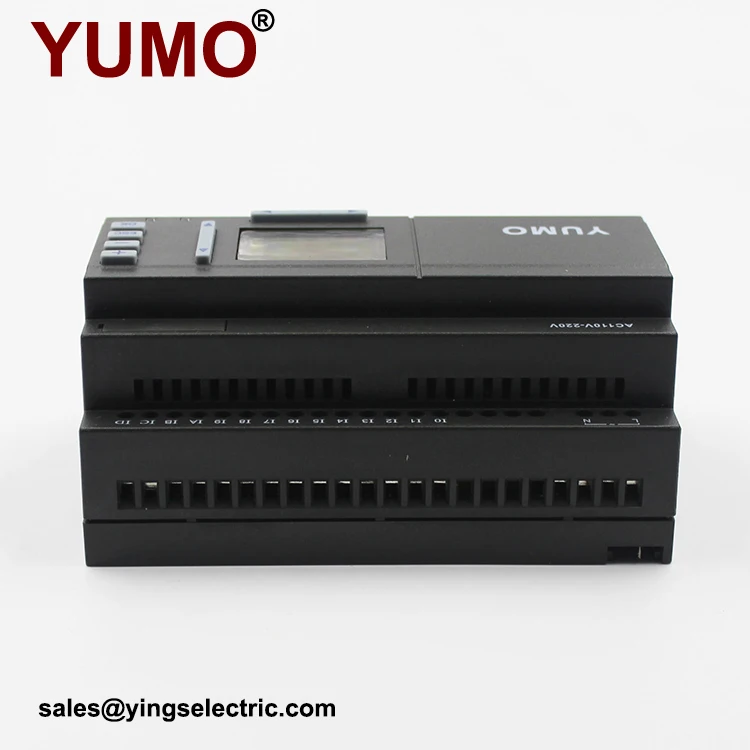

1.Input Power (AC or DC)(AC110-220V),(DC12-24V)
2.Input W iring Term inal
3.Real-tim e clock battery slot
4.M ini H M I (APB-H M I)
5.Power supply indicator in left \CPU run indicator in right
6.Extend m odule com m unication Interface
7.Software Com m unication Interface
8.Output W iring Term inal(Relay output type or transistor output type)
Model No. | APB-22MRAL | ||
APB-22MRAL | AC100V-240V | 14 points AC input | 8 points relay output |
Surge Immunity | 2kv(common mode), 1kv(differential mode), Level 3 (IEC61000-4-5) | ||
Electrostatic Discharge (outer casing) | ±8kv(air discharge)/±6kv(contact discharge), Level 3 (IEC61000-4-5) | ||
Ambient Temperature | -10℃~+55℃ | ||
Storage Temperature | -40℃~+70℃ | ||
Ambient Humidity | 5%~95%RH | ||
Degree of Protection | IP20(Non-waterproof) | ||
Installation | Fixing with M3 screws or Standard DIN rail mounting | ||
Dimensions (mm) | 71*99*58.5(12 points); 126*99*58.5(22 points); 126*99*58.5(24 points) | ||
Programming Language | FBD | ||
Points | 12 points/22 points/24 points/can support 7 I/O extension modules | ||
Memory Capacity | 320 FBDs | ||
Filtering Duration of Input Signal | It can be set to improve the stability of signal | ||
Real-time Clock | 160h,can place a Li-ion battery if it is necessary | ||
Password Protection | Multiple passwords protection | ||
High-speed Operation | At most 4 high-speed inputs 10KHz, and 2 high-speed outputs 10KHz | ||
Analog Operation | At most 12 voltage 0-10V and 2 current 4-20mA analog inputs, | ||
Power Failure Protection | Yes | ||
Simulate Monitoring | Yes | ||
Communication Interface | TTL interface; besides, communication module supports 2 RS485 and 1 RS232 interfaces | ||
Baud Rate | 9600bps | ||
Communication Protocol | MODBUS RTU | ||
Power Supply | |||
Rated Voltage | AC110-220V | ||
Permissible Range | AC85V-265V | ||
Power Consumption | -- | ||
Digital Input | |||
Input Type | NPN/PNP | ||
Input Signal 0 | AC0-70V | ||
Input Signal 1 | AC85-265V | ||
Isolation | Photoelectric isolation | ||
Isolated Group | 14 | ||
Isolated Voltage | 2500/5000Vr.m.s | ||
Digital Output | |||
Output Type | Relay | ||
Rated Voltage | 24VDC/220VAC | ||
Isolation Method | Relay isolation | ||
Analog Output | |||
Isolation | Non-isolation |
Related Products
APB-12MRD(L) | DC12V-24V | 8 points digital input (can be used as analog inputs); I4-I7 can be high-speed ports | 4 points relay output |
APB-12MTD(L) | DC12V-24V | 8 points digital input (can be used as analog inputs); I4-I7 can be high-speed ports | 4 points NPN transistor output Q2,Q3 can be high-speed output ports |
APB-12MGD(L) | DC12V-24V | 8 points digital input (can be used as analog inputs); I4-I7 can be high-speed ports | 4 points PNP transistor output Q2,Q3 can be high-speed output ports |
APB-22MRA(L) | AC100V-240V | 14 points input | 8 points relay output |
APB-22MRD(L) | DC12V-24V | 14 points digital input (the first 12 points can be analog inputs); I4-I7 can be high-speed ports | 8 points relay output
|
APB-22MTD(L) | DC12V-24V | 14 points digital input (the first 12 points can be analog inputs); I4-I7 can be high-speed ports | 8 points NPN transistor output Q2,Q3 can be high-speed output ports |
APB-22MGD(L) | DC12V-24V | 14 points digital input (the first 12 points can be analog inputs); I4-I7 can be high-speed ports | 8 points PNP transistor output Q2,Q3 can be high-speed output ports |
APB-24MRDL | DC12V-24V | 2points for current input, and 14points for digital input (the first 12 points can be 0~10V analog inputs); I4-I7 can be high-speed ports | 6 points relay output + 2 analog outputs |
APB-22ERA | AC100V-240V | 14 points digital input | 8 points relay output |
APB-22ERD | DC12V-24V | 14 points digital input | 8 points relay output |
APB-22ETD | DC12V-24V | 14 points digital input | 8 point NPN transistor output |
APB-22EGD | DC12V-24V | 14 points digital input | 8 point NPN transistor output |
