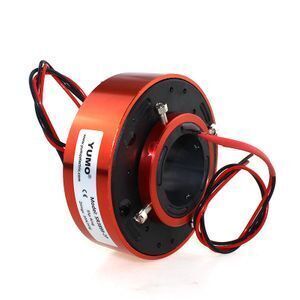

Yumo SR3899-2P hole 38mm 2wires rotating Through Bore Slip Ring

Supplier: Yueqing Ying's Import & Export Co., Ltd.
Region: Zhejiang, China
Contact: Mr Benjamin Ying
Price: $70.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Current:	10A;	Single gross weight:	0.4 KG;
Name:	through bore slip ring;	Outer diameter:	99mm;
Selling Units:	Single item;	Single package size:	10X10X10 cm;
Model Number:	SR3899-2P;	Website:	www.yingselectric.com;
Weight:	388g;	Packaging Detail:	Carton;
Hole Size(mm):	38mm;	Brand Name:	YUMO;
Usage:	Micro Motors;	Lead-out:	30mm;
Circuits:	2 Circuits;	Place of Origin:	Zhejiang China;
Certificate:	CE certification;

Yumo SR3899-2P hole 38mm 2wires rotating Through Bore Slip Ring

Features

SR3899-2P through bore slip ring 2 circuits

10A/wire

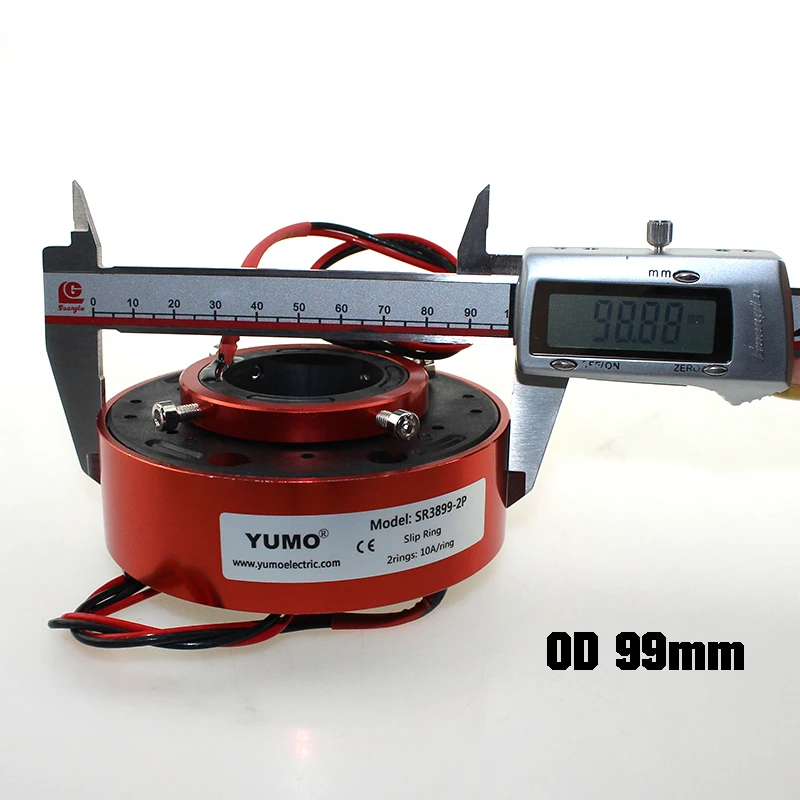

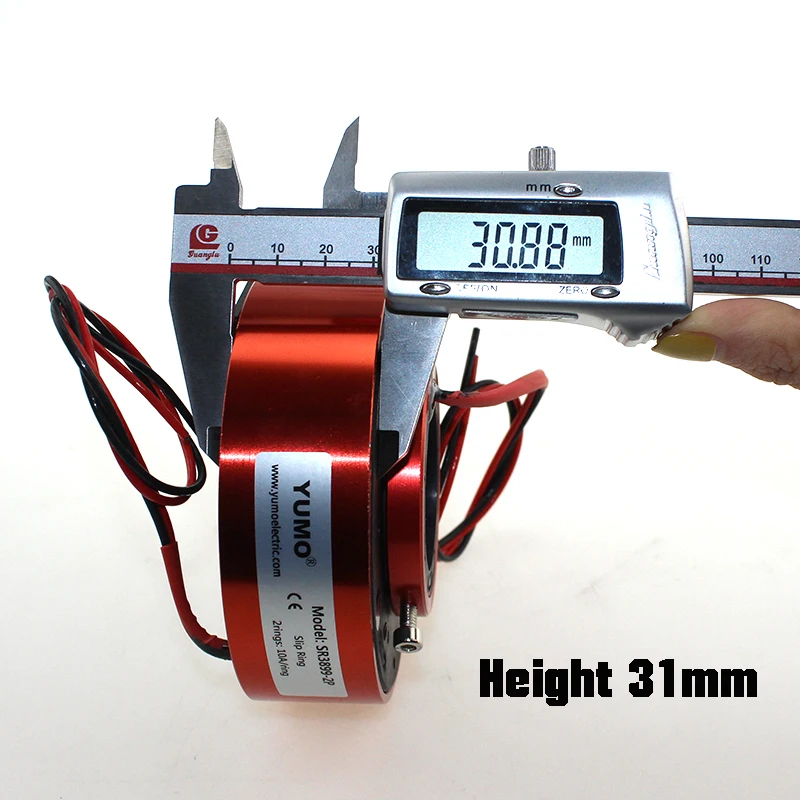

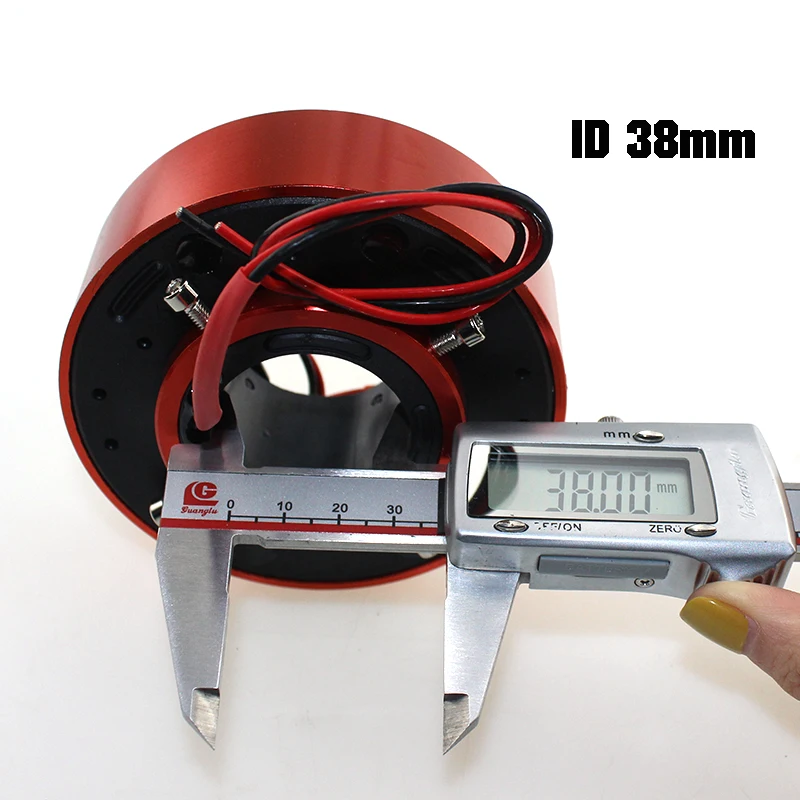

Hole size 38mm; Outer diameter 99mm; Height 31mm; Lead-out length 30mm
*Make use of advanced sheaf brush technology to design and manufacture
*Suffice 360° unrestrained continuous rotation in transmitting power and/or data
*Product modularize
*Long life and maintenance-free operation

Applications

*Industrial machine: processing center, revolving stage
*Heavy equipment, platform, cable coil, testing equipment
*Packing equipment, stacking machine, magnetic clutch, technology control equipment
*Revolving sensor, emergent illuminating equipment, robot
*Exhibition/display equipment, medical equipment

Model	L=mm	Current		rings
Model	L=mm	Power (10A)	Signal (2A)	rings
SR3899-6P	54	6		6
SR3899-12S	54		12	12

SR3899-12P	78	12		12
SR3899-6P/12S	78	6	12	18
SR3899-24S	78		24	24

SR3899-18P	102	18		18
SR3899-12P/12S	102	12	12	24
SR3899-6P/24S	102	6	24	30
SR3899-36S	102		36	36

SR3899-24P	126	24		24
SR3899-18P/12S	126	18	12	30
SR3899-12P/24S	126	12	24	36
SR3899-6P/36S	126	6	36	42
SR3899-48S	126		48	48

FAQ

Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
  2).We make the PI for you.
  3).After you confirm the PI, we arrange the order for you after receiving your payment.
  4).After the goods finished, we send the goods out to you and tell you the tracking number.
  5).We will track your goods until you receive the goods.
Q:  What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your  kindly inquiry !  ^!^
