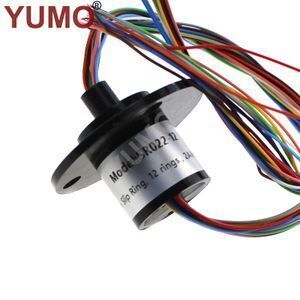

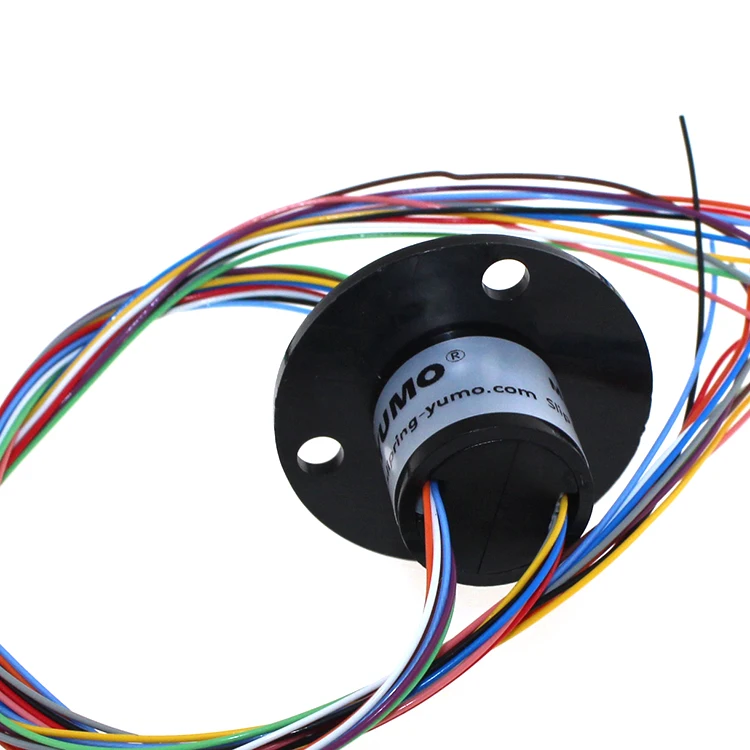

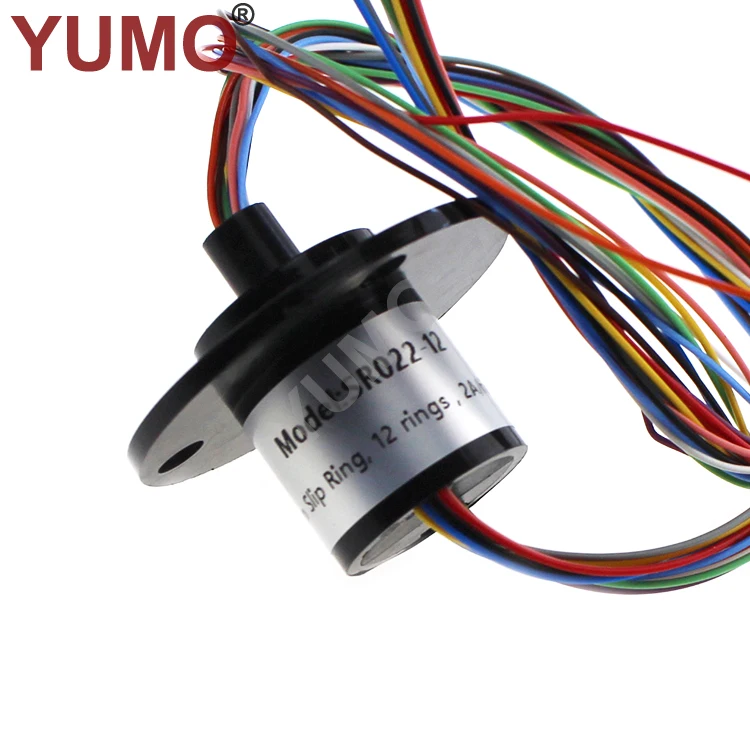

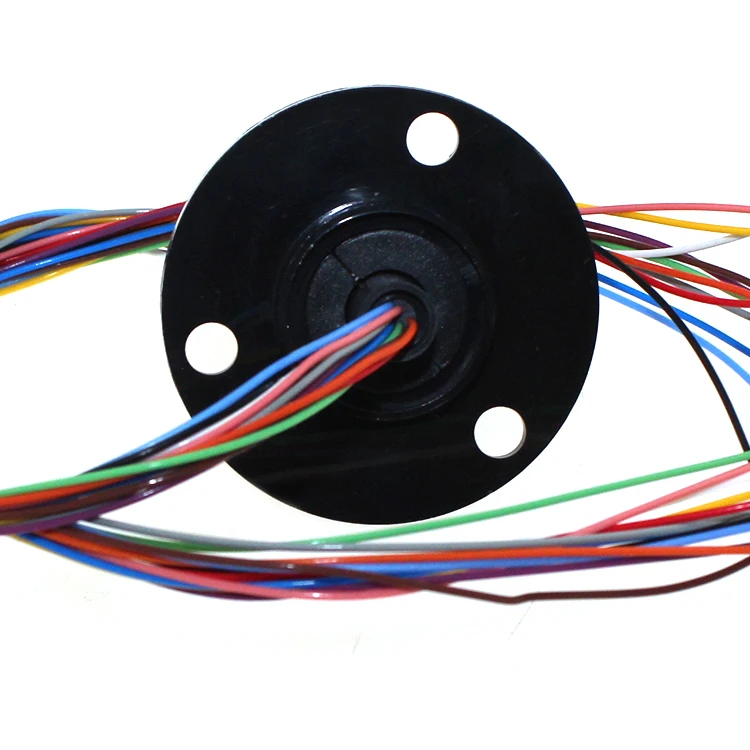

YUMO SR022-12 dia 22mm 12rings 2A electrical contacts Capsule slip ring carbon brush holder for slip ring

Supplier: Yueqing Ying's Import & Export Co., Ltd.
Region: Zhejiang, China
Contact: Mr Benjamin Ying
Price: $7.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Circuit:	12circuits;	Delivery Detail:	In stock;
Single gross weight:	0.6 KG;	Housing size:	22mm;
Noise:	<10mu;	Place of Origin:	Zhejiang China (Mainland);
Selling Units:	Single item;	Model Number:	SR022-12;
Package Type:	Carton carbon brush holder for slip ring;	Brand Name:	YUMO;
Single package size:	6X6X6 cm;	Certificate:	CE;
Payment:	T/T, L/C, Paypal;	Voltage:	210 VDC / 240 VAC;
Type:	carbon brush holder for slip ring;	Packaging Details:	Carton;
Delivery Detail:	0 days after payment;

YUMO SR022-12 dia 22mm 12rings 2A electrical contacts Capsule carbon brush holder for slip ring carbon brush holder for carbon brush holder for slip ring

Product Description

Carbon brush holder for slip ring, Capsule carbon brush holder for slip ring SRC022-12

Description:

The carbon brush holder for slip ring can be used in any electro-mechanical system that requires unrestrained, continuous rotation while transmitting power and / or data from a stationary to a rotating structure. The carbon brush holder for slip ring is also called rotary electrical interface, commutator, collector, swivel or electrical rotary joint. The brush adopt noble metal alloy material, Conducting ring Using a 900V-groove ring. It adopt multilayer noble metal alloy for plating dispose. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.
