Power(W): | 180; | Condition: | New; |
Certification: | CE ISO9001; | Fan motor: | water proof; |
Packaging Detail: | Plywood case/Wood frame/Polythene film; | Material: | fiberglass; |
Place of Origin: | Guangdong China; | Dimension(L*W*H): | 1060*1060*1660mm; |
Cooling Type: | Counter Flow; | Applicable Industries: | Manufacturing Plant; |
Material: | FRP; | Usage: | for cooling; |
Radiating fin: | PVC/PP material; | Motor: | double pole; |
Noise: | 62Kba; | Supply Ability: | 500 Set/Sets per Month; |
Port: | Jiangmen/Guangzhou/Shenzhen; | Warranty: | 1 year; |
After-sales Service Provided: | Video technical support,Online support; | Weight: | 50KG; |
Payment Terms: | L/C,T/T,Western Union,MoneyGram; | After-sales Service Provided: | Engineers available to service machinery overseas; |
Brand Name: | XIECHENG; | Lifetime: | more than 5 years; |
Voltage: | 380V 50HZ 3PHASE OR customized; |
Cooling Tower System
FEATURE
1,Cooling tower is mainly used for cooling in air conditioning system, frozen series, injection molding, leather, foam, power generation, steam turbine, aluminum processing, air compressors, industrial cooling water and other fields;
2,most used for air conditioning cooling, freezing, plastic chemical industry;
3, Closed circuit cooling tower have Attractive shape: Small dimension of shape, low height of tower, light weight of tower, and multiform layout in covering area.
WORKING PRINCIPLE
1,Working fluid (water, oil o other liquid) flowing inside of the coils, which is enwrapped by spray water on the outside. The heat of water is transferred by coil and become the saturated vapor when meet the water and air.
2, the heat is exhausted out of the tower by the tower by the top fan; water is collected back to the bottom tank and circulates continuously. The spray water is cooled down via PVC radiation fin in the process of circulation, and flow is the same direction with the fresh wind. The coil mainly takes sensible heat travel style.
3, the most benefit of this style is can avoid scale formation on the outside of the coil. And this will apply especially to dealing with high temperature fluid (e.g. 60°C) or the fluid need big temperature difference (e.g. 60°C to 32°C).

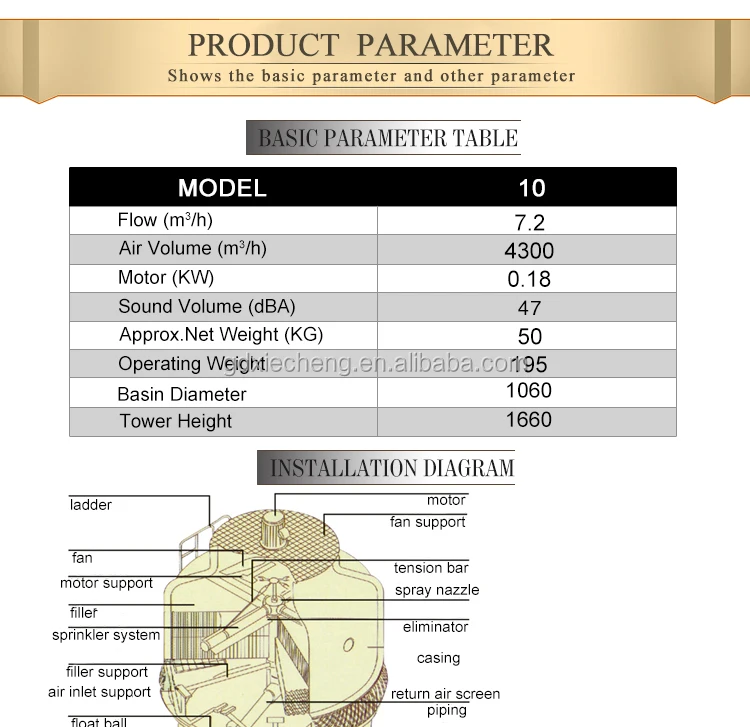

Model | Flow rate | Fan Diameter | Motor | Noise | Net weight | Operating weight | Diameter | Height |
m3/h | mm | kw | kba | kg | kg | mm | mm | |
XC-ST10 | 7.2 | 600 | 0.18-6P | 62 | 50 | 195 | 1080 | 1760 |
XC-ST15 | 11.7 | 600 | 0.18-6P | 62.5 | 54 | 290 | 1080 | 1860 |
XC-ST20 | 14.4 | 600 | 0.37-6P | 63 | 67 | 300 | 1200 | 1860 |
XC-ST25 | 18.5 | 770 | 0.55-6P | 63 | 98 | 500 | 1430 | 2050 |
XC-ST30 | 23.4 | 770 | 0.55-6P | 63 | 116 | 530 | 1620 | 1900 |
XC-ST40 | 31.2 | 770 | 0.75-6P | 63 | 130 | 550 | 1620 | 2050 |
XC-ST50 | 39.2 | 930 | 1.5-6P | 63.5 | 200 | 975 | 1810 | 2100 |
XC-ST60 | 46.8 | 1180 | 1.5-8P | 63.5 | 255 | 1250 | 2100 | 2200 |
XC-ST80 | 62.6 | 1180 | 1.5-8P | 64 | 280 | 1280 | 2100 | 2410 |
XC-ST100 | 78.1 | 1450 | 2.2-8P | 64.5 | 450 | 1500 | 2700 | 2600 |
XC-ST125 | 97.5 | 1450 | 2.2-8P | 65.5 | 540 | 1740 | 2700 | 2600 |
XC-ST150 | 117 | 1450 | 2.2-8P | 66 | 580 | 1780 | 3000 | 2700 |
XC-ST175 | 136.8 | 1750 | 4-10P | 66 | 760 | 1860 | 3300 | 2780 |
XC-ST200 | 156.2 | 1750 | 4-10P | 66 | 790 | 1880 | 3300 | 2780 |
XC-ST225 | 175.5 | 2100 | 5.5-4P | 66.5 | 1050 | 2770 | 4100 | 3850 |
XC-ST250 | 195.1 | 2100 | 5.5-4P | 67 | 1080 | 2800 | 4100 | 3850 |
XC-ST300 | 234 | 2400 | 7.5-4P | 67.5 | 1760 | 3790 | 4700 | 4030 |
XC-ST350 | 273.2 | 2400 | 7.5-4P | 68 | 1800 | 3930 | 4700 | 4030 |
XC-ST400 | 312.2 | 2700 | 11-4P | 68 | 2840 | 5740 | 5600 | 4100 |
XC-ST500 | 392.4 | 2700 | 15-4P | 68.5 | 2900 | 5800 | 5600 | 4100 |
XC-ST600 | 468 | 3400 | 15-4P | 68.5 | 3950 | 9350 | 6600 | 4470 |
XC-ST700 | 547.2 | 3400 | 18.5-4P | 69 | 4050 | 9450 | 6600 | 4470 |
XC-ST800 | 626.4 | 3700 | 22-4P | 70 | 4700 | 11900 | 7600 | 4720 |
XC-ST1000 | 781.2 | 3700 | 22-4P | 71 | 4900 | 12100 | 7600 | 4720 |
