temperature range: | 3C~50C; | Lifetime: | more than 5 years; |
Dimension(L*W*H): | 1270*650*1413 mm; | Cooling water flow: | 4.42m3/h; |
After Warranty Service: | Video technical support,Online support; | Key Selling Points: | High Productivity; |
Compressor power: | 7.5KW/10HP; | After-sales Service Provided: | Video technical support,Online support; |
Safety setting: | 6 protections; | Pump power: | 1.5kw 2HP; |
Certification: | CE; | Power(W): | 35000; |
Warranty: | 1 year; | Brand Name: | XIECHENG; |
Payment Terms: | L/C,T/T,Western Union,MoneyGram; | Port: | Jiangmen/Shenzhen/Guangzhou; |
Type: | Water-Cooled; | Voltage: | 380V/50HZ/3 phase; |
Warranty: | 1 Year; | Place of Origin: | Guangdong China; |
Showroom Location: | Viet Nam,Brazil,Indonesia,Pakistan,India,Mexico,Russia,Thailand,Uzbekistan,Malaysia; | Weight: | 350kg; |
Applicable Industries: | Manufacturing Plant; | Local Service Location: | Viet Nam,Brazil,Indonesia,Pakistan,India,Mexico,Russia,Thailand,Malaysia,Uzbekistan; |
Product name: | Water Chiller; | Packaging Detail: | standard wooden package or caaording to customer requirement; |
Water Tank Capacity: | 70L; | Working Temperature Range: | 3C~50C; |
refrigerant: | R22/R407C/R134A/R410/R404; | Supply Ability: | 500 Set/Sets per Month; |
Condition: | New; |
Wholesale price CE standard plastic industry small air cooled industrial water chiller
Model | Unit | XC-L10W | XC-L12W | XC-L15W | |
Cooling Capacity | KW | 35 | 39 | 27 | |
51.7Kcal/h | 26714 | 44505 | 45422 | ||
Compressor | Input Power | KW | 3.75x2 | 4.5x2 | 3.75x2 |
Rated power | HP | 5x2 | 6x2 | 5x3 | |
Power | 3PH-380V/50HZ | ||||
Evaporator | Type | Shell and Tube | |||
Pipe Diameter | inch | 2' | 2' | 2.5' | |
Refrigerant | Type | R22 | |||
Quantity | KG | 2 | 2.5 | 4 | |
Condenser (water chiller)
| Type | Shell and Tube Condenser | |||
Pipe Diameter | inch | 2' | 2' | 2.5' | |
Cooling Water Flow | m³/h | 4.42 | 5.03 | 7.1 | |
Water Tank Capacity | Liter | 70 | 70 | 80 | |
Pump | Power | KW | 1.5 | 1.5 | 2.2 |
HP | 21 | 2 | 2 | ||
Distance | m | 15 | 15 | 16 | |
Flow Rate | L/min | 360 | 360 | 360 | |
Dimensions(L*W*H) | mm | 1270*650*1413 | 1270*650*1413 | 1270*750*1413 |
for more information,pleases click to contact
CONTACT US |
Water Cooled Chiller
The water chiller is to provide a cooling process in plastic molding,
to improve quality of molded products
and shorten period of injection molding cycles.
Hence maximizes productivity of plastic molding manufacturing

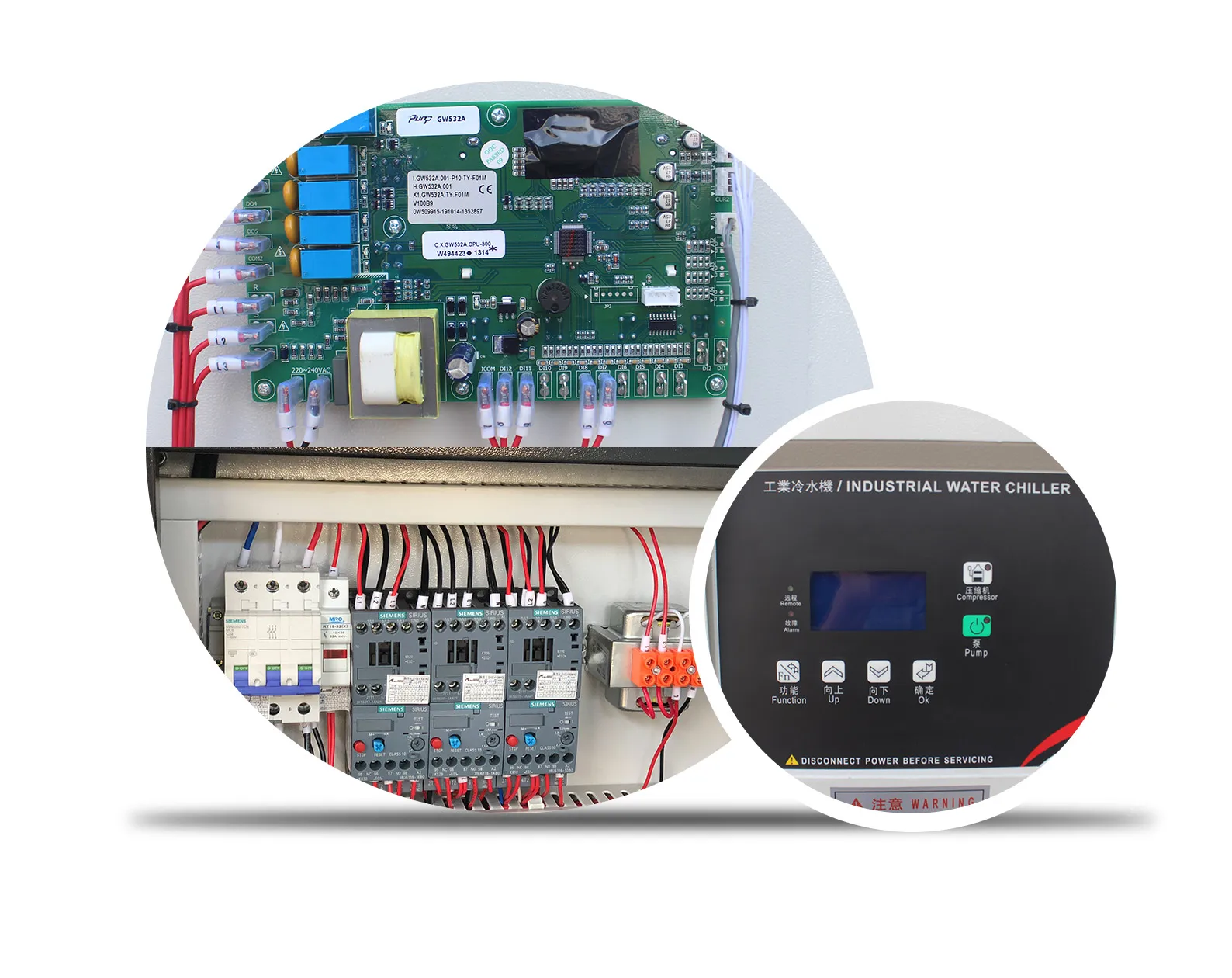

P.I.D Microcomputer Full Function Control 1. The whole machine adopts Siemens electronic components 2. Easy to operate, accurate control of water temperature within 3℃ to 50℃ 3. The screen displays the setting temperature of cold water outlet, cold water inlet and equipment at the same time | |

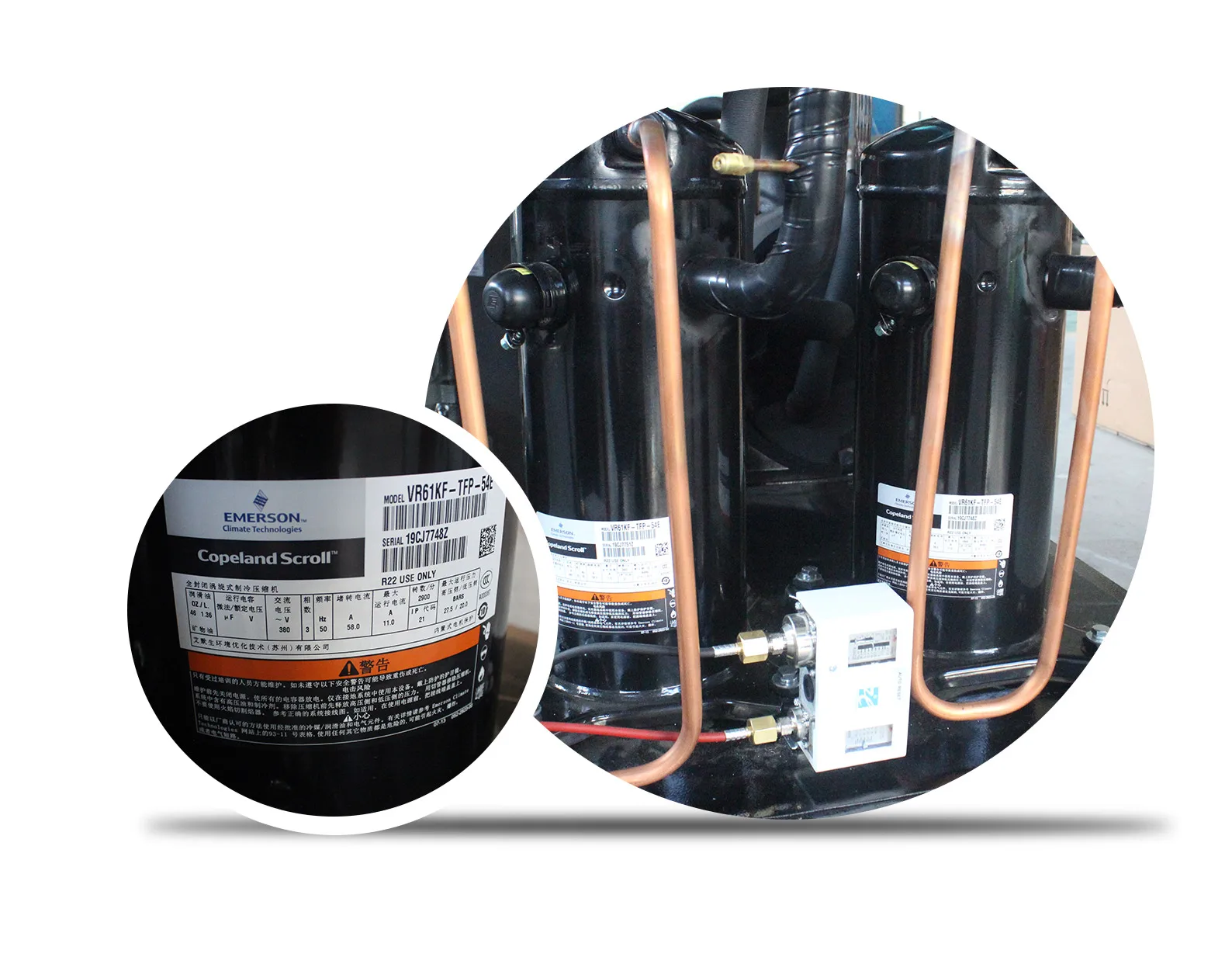

Valley Wheel Vortex Compressor World famous brand fully enclosed scroll refrigeration compressor and evaporator combination, super cooling, quiet and energy-saving | |

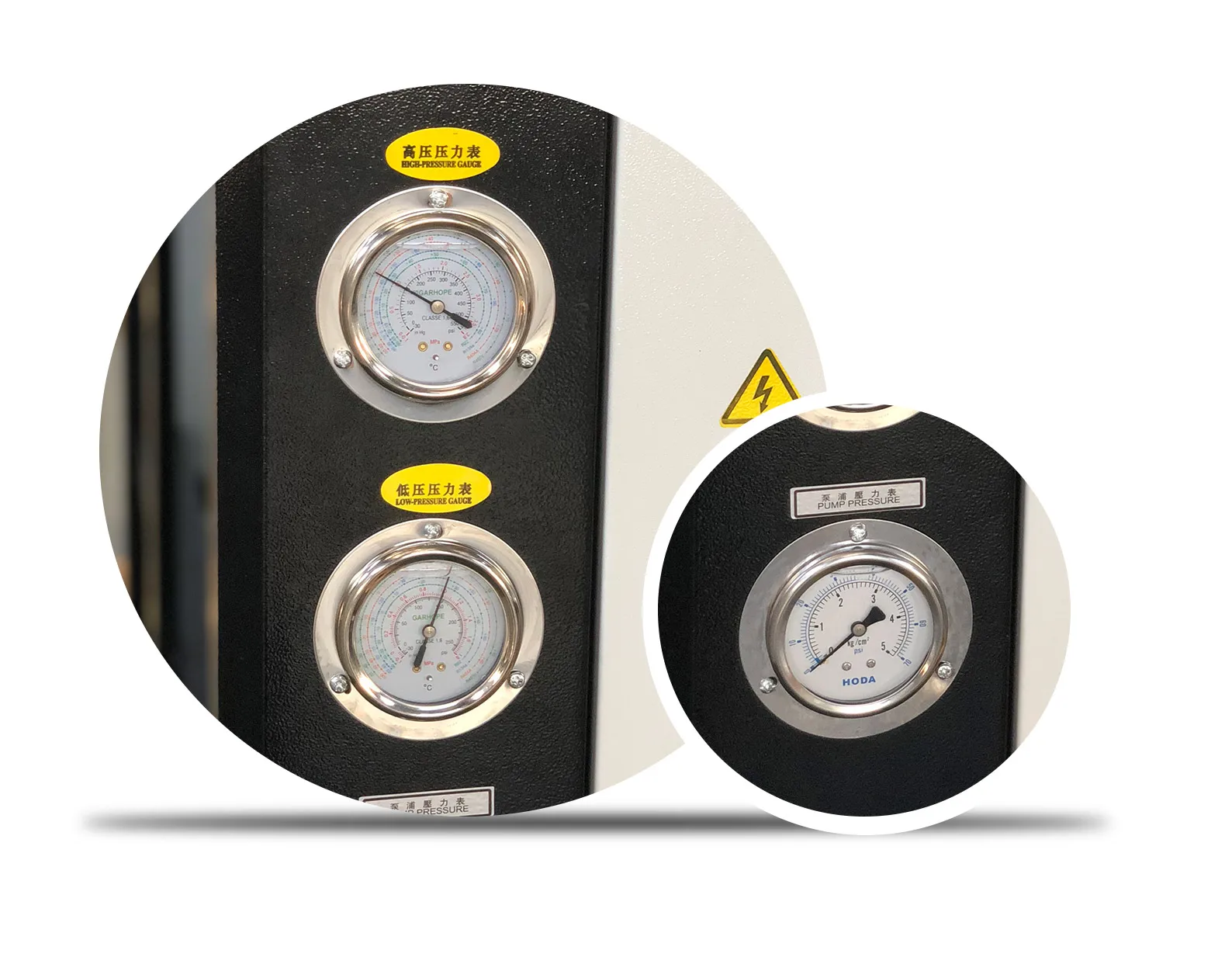

Cold and Hot Water Pressure Pump Table 1.Assemble pressure gauge, check the pressure of water pump when working 2.With current overload protection, high and low voltage suppression and electronic time delay and other perfect safety protection device, abnormal indication system | |

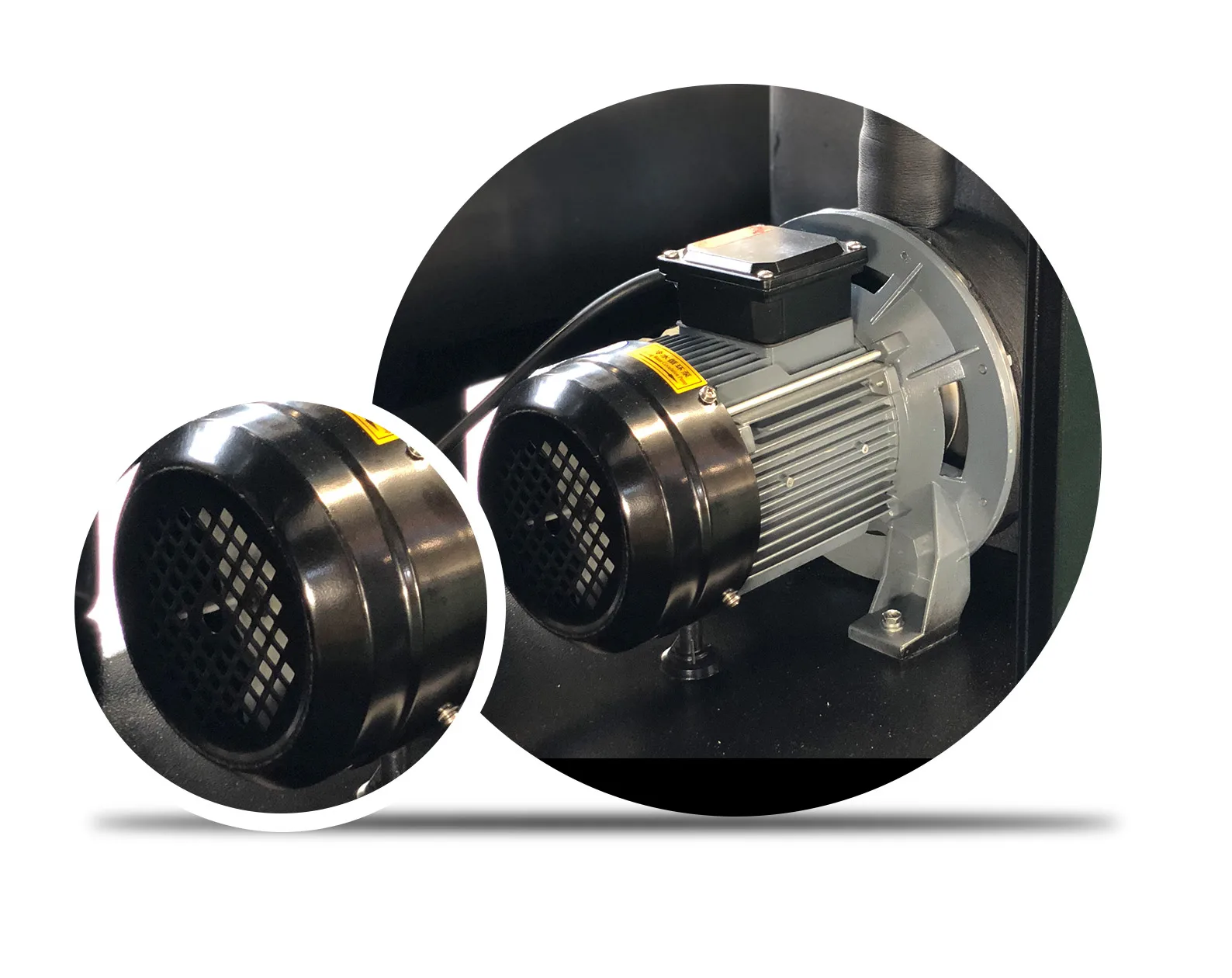

Efficient Water Pump Auenac stainless steel pump head, low noise, no leakage, no maintenance | |

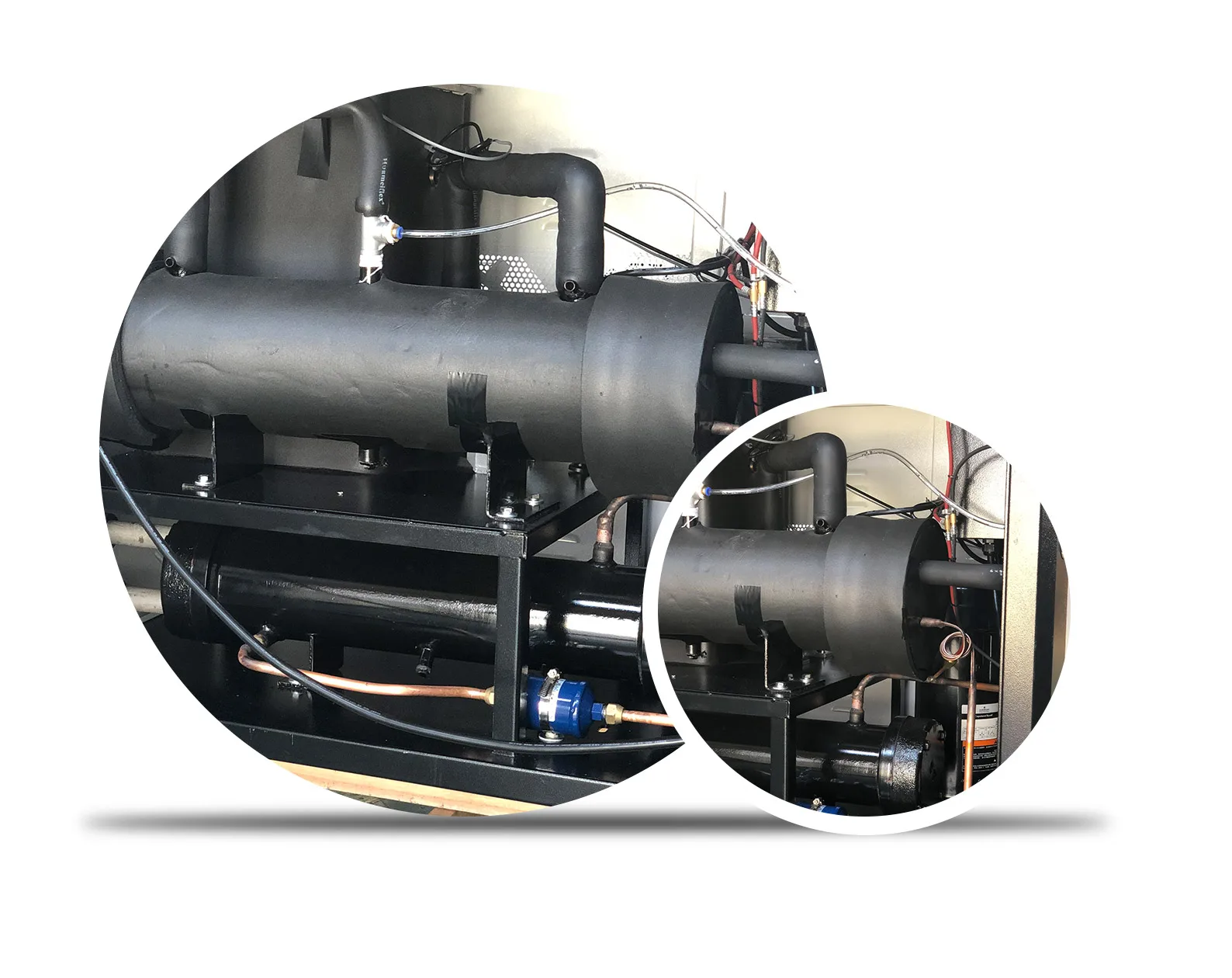

Efficient Cooling System Standard shell and tube condenser, excellent heat conduction performance, increases heat dissipation area |
Industrial Chiller
Industrial chiller, other names: water chiller, water cooling machine.
Widely used for Plastic molding, electronics industry, electroplating industry,
Machinery industry, construction industry, vacuum coating and food industry etc.
Divided into water cooled chiller/air cooled chiller
