Control method: | P.I.D; | Packaging Detail: | Plywood case/Wood frame/Polythene film; |
Blower Power(W): | 215 W; | size: | 1225*822*575 mm; |
Whole Height: | 1825 mm; | Blower: | 0.215kw; |
Certification: | CE; | Capacity (kg): | 160 kg; |
Place of Origin: | Guangdong China; | Electric Heating Power(kW): | 6 kW; |
Heat Power: | 6kw; | Weight: | 90kg; |
Floor Stand: | 920*662*795 mm; | Warranty: | 1 year; |
Supply Ability: | 500 Set/Sets per Month; | Local Service Location: | Viet Nam,Brazil,Indonesia,Pakistan,India,Mexico,Russia,Thailand,Malaysia,Uzbekistan; |
material hpper capacity: | 160L; | Condition: | New; |
Payment Terms: | L/C,T/T,Western Union; | Port: | Jiangmen/shenzhen/guangzhou; |
Applicable Industries: | Manufacturing Plant; | Brand Name: | XIECHENG; |
After Warranty Service: | Video technical support,Online support; | Weight (KG): | 90 KG; |
Showroom Location: | Viet Nam,Brazil,Indonesia,Pakistan,India,Mexico,Russia,Thailand,Uzbekistan,Malaysia; |

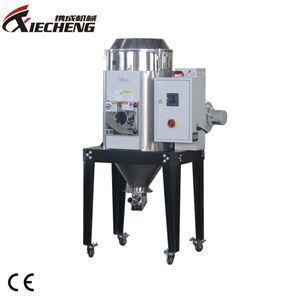

Plastic Hopper Dryer Machine Hopper Dryer For Plastic
EURO-HOPPER DRYER
1.Microprocessor is used for accurate temperature control.
2.Hot air down- blowing design ensures distribution of hot air to maintain a steady temperature in the hopper and increase drying efficiency.
3.Digital P.I.D temperature control with LED display, innovative design with sleek appearance
4.Overheat protection to ensure realizable operation
5.7 day automatic start/stop timer to improve energy saving
6.With movable materials checking door, good seal and convenient unloading (Models XCD-80U and above)
7.Stainless steel tray & aluminum base as standard (Models XCD-1200U and below);application.
8.Manual butterfly valve adopted(Models XCD-1500U and above);
9.Escalator is optional(Models XCD-1500U and above)
10.Drying hopper and lid can bu fully insulated for high temperature application
11.Option accessories: euro – hopper suction box, euro-hopper mobile floor stand, material door magnet, magnetic base(aluminum or stainless steel),blower inlet filter, hot air recycling, exhaust air filter;
12.For European standard safety circuit type ,add “CE” at model behind.
Model | XCD-20U | XCD-40U | XCD-80U | XCD-120U | XCD-160U | XCD-230U |
Heater Power(kw) | 2.2 | 3 | 3.9 | 3.9 | 6 | 6 |
Blower(kw) | 0.12 | 0.12 | 0.12 | 0.12 | 0.18 | 0.18 |
Hopper Capacity(L) | 20 | 40 | 80 | 120 | 160 | 230 |
Dimensions H*W*D(mm) | 730×575×325 | 760×640×390 | 940×722×475 | 1210×722×475 | 1255×822×575 | 1505×822×575 |
Floor Stand H*W*D(mm) | 790×450×550 | 790×450×550 | 840×552×722 | 840×552×722 | 920×662×795 | 920×662×795 |
Whole Heght(mm) | 1260 | 1295 | 1465 | 1735 | 1825 | 2105 |
Air Inlet Pipe Diameter | 2" | 2" | 2.5" | 2.5" | 3" | 3" |
Air Inlet Pipe Diameter | 1.5" | 1.5" | 2" | 2" | 2.5" | 2.5" |
Approx.Net Weight(kg) | 40 | 45 | 50 | 60 | 90 | 100 |
