Hopper Dimension: | 35*43*71cm; | Loading distance: | 6M; |
Packaging Detail: | wooden case packaging; | Supply Ability: | 500 Set/Sets per Month; |
Hopper Weight: | 10KG; | Port: | Jiangmen /Guangzhou/ Shenzhen; |
Weight (KG): | 100 KG; | Capacity (kg/h): | 820 kg/h; |
Static Wind Pressure: | 3200MM/H2O; | Local Service Location: | Viet Nam,Brazil,Indonesia,Pakistan,India,Mexico,Russia,Thailand,Malaysia,Uzbekistan; |
Conveying Tube Inner Diameter: | 51mm; | Brand Name: | XIECHENG; |
Storage tank Volume: | 24L; | Specification of The Attached Hoses: | 51mm*10mm*1pcs; |
Certification: | CE; | Application: | Plastic Industry; |
Warranty: | 1 year; | Conveying capacity: | 820KG/H; |
Voltage: | 380V; | Applicable Industries: | Manufacturing Plant; |
Dimension(L*W*H): | 470*420*1280 mm; | Place of Origin: | Guangdong China; |
After Warranty Service: | Video technical support,Online support; | Motor: | 5HP/3.7KW; |
Weight: | 100kg; | After-sales Service Provided: | Online support,Video technical support; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Condition: | New; |
Showroom Location: | Viet Nam,Brazil,Indonesia,Pakistan,India,Mexico,Russia,Thailand,Uzbekistan,Malaysia; |

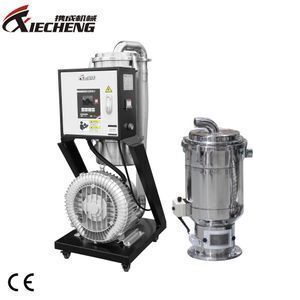

High power vacuum plastic pellets loader
Model | XCAL-1.5HP | XCAL-3HP | XCAL-5HP | XCAL-7.5HP | XCAL-10HP | |
Motor(HP/KW) | 1.5/1.1 | 3/2.2 | 5/3.75 | 7.5/5.5 | 10/7.5 | |
Conveying Capacity(Kg/h) | 450 | 590 | 820 | 1000 | 1300 | |
Loading Distance(m) | 5 | 5 | 5 | 6 | 6 | |
Static Wind Pressure(mm/H2o) | 2800 | 2800 | 3200 | 4200 | 4500 | |
Storage Tank Volume(L) | 7.5 | 12 | 24 | 30 | 30 | |
Conveying Tube Inner Diameter(mm) | Φ38 | Φ51 | Φ51 | Φ63 | Φ63 | |
Specification of The Attached Hoses(mm) | Φ38mm*8m 1Pcs | Φ51mm*10m 1Pcs | Φ51mm*10m 1Pcs | Φ63mm*15m 1Pcs | Φ63mm*15m 1Pcs | |
Dimension(cm) | Main Frame | 47*42*128 | 47*42*128 | 47*42*128 | 65*53*140 | 65*53*140 |
Hopper | 33*38*45 | 35*40*33 | 35*43*71 | 35*43*78 | 35*43*83 | |
Approx.Net Weight(kg) | Main Frame | 65 | 68 | 90 | 135 | 140 |
Hopper | 6 | 6 | 10 | 12 | 12 |
for more information,pleases click to contact
CONTACT US |
Separate-vacuum Hopper Loader
Widely used for plastic molding industry,
such as: injection molding, extrusion, blow molding industry, etc.
Can be divided into: independent type suction machine, European suction machine,
Suction machine, Split type high-power suction machine
and A machine bucket suction machine

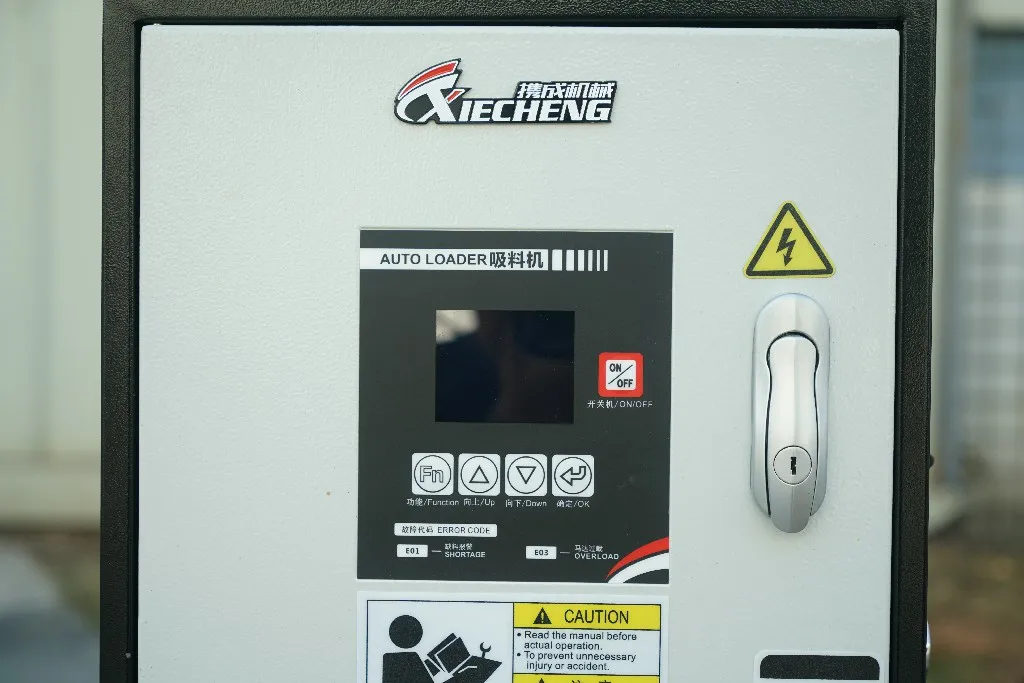

New LCD Controller 1) the whole series of models adopt LCD controller, new man-machine interface, with functions such as material shortage and overload alarm 2) the main engine is equipped with standard alarm indicator light 3) more than 5 pieces, add 485 communication function, proportional valve control function, broken vacuum pressure relief function | |

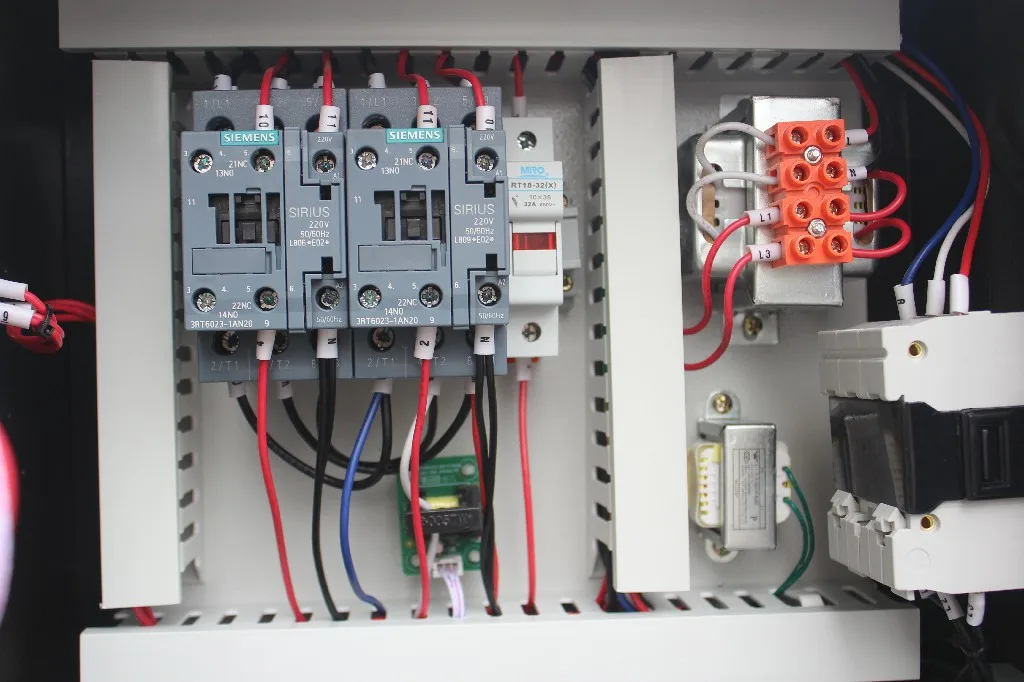

Siemens Electronics Full suction electromechanical box adopts Siemens brand electrical appliances, better performance, longer service life | |

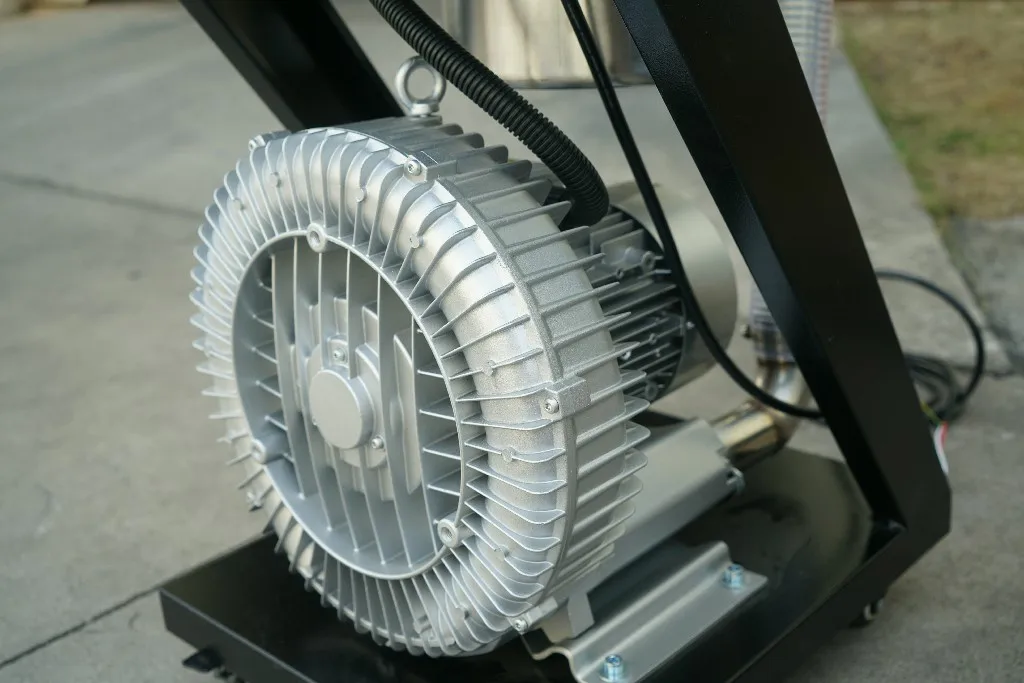

High Pressure Air Blower Induction motor has positive and negative blowing function, low noise, strong suction; The motor power, feeding pipe diameter and hopper capacity are all configured to meet the demand | |

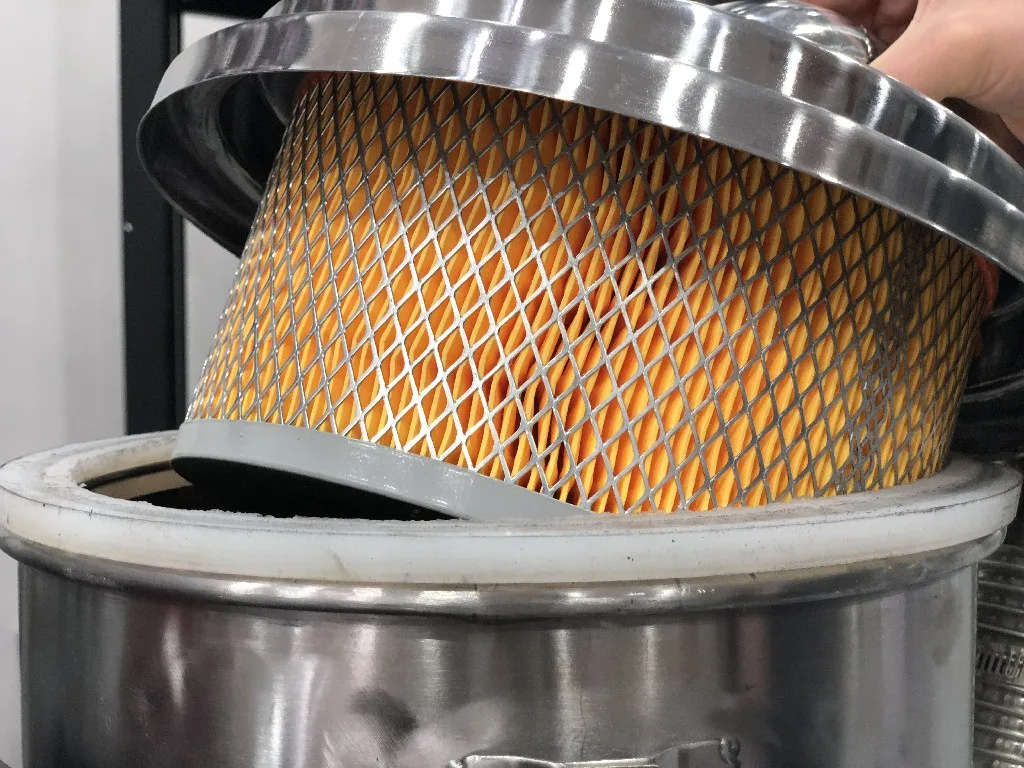

The Filter Dust collecting bucket with filter, effectively filter dust, prevent single blocking | |

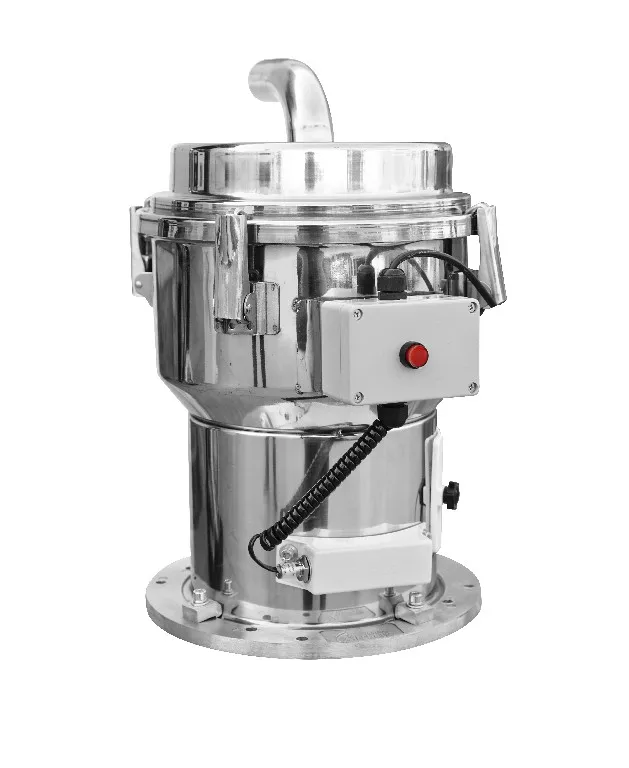

Reed Hopper Equipped with reed hopper, the induction is sensitive, the quality is stable, the base can be adjusted according to the customer's demand arbitrary direction, and the hopper has an independent switch, can be closed independently |
for more information,pleases click to contact
CONTACT US |
Customer Case
User-centered service and detailed control
can provide customers
with cost-effective and reasonable solutions
About Us
Tailored to your specific needs
User-centric service and detailed control
Provide cost-effective and reasonable solutions
Good maintenance service
Certification
Quality Management System certified
By SGS/Quality Management
System certified by BV
Exhibition
Established an international sales team
for overseas market explorations
FAQ
Frequently asked questions when buying products
Q: How many years have your factory been established?
A:Our factory established from 2009,
but most of our engineers are working in this industry over 15 year.
Q: How long is your delivery time ?
A:we have a few stock .but if produce,
1 set for normal machine need about 3-7 working days ,
if 1 or more containers, need about 15-20 working days.
Q:how long is the warranty?
A:Within 1 year from date of the factory, if parts failure or damage
(because of the quality problem ,except wearing parts),
our company provide these parts for free.
Q:What is your payment term ?
A:TT 100% before shipment ,LC at sign,
Western Union or Trade Assurance order recommended.
