Radiant solar cell cutting machine solar cell cutter laser scribing machine

Product details
CNC worktable accuracy:0.01 mm;Input power:Max 1.5kW;
Place of Origin:Hebei China;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Applicable Material:Crytal,Metal,Paper,plastic,Plywood;Application:Laser Scribing;
Packaging Detail:Woodencase;Production name:156 125 Laser Scribing Machine;
Graphic Format Supported:DST,DWG,DXF,DXP,PLT;Min scribing line width:0.05 mm;
Delivery Detail:15days;Brand Name:RADIANT;
Beam power:max 20W;Supply Ability:10000 Set/Sets per Month;
Scribing area:156mmX156mm 125mm X125mm;Certification:CE,ISO;
Model Number:YDFLS-20W;Port:Tianjin/Shanghai port;
Modulated frequency:20- 80 kHz;Scribing speed:max 200 mm/ s;
Laser Type:Fiber Laser;CNC or Not:Yes;
After-sales Service Provided:Engineers available to service machinery overseas;Cooling Mode:Air Cooling;
Laser Brand:Zhongke;Power supply:1-phase 220 VAC +/- 10%, 50 Hz;
Control Software:Automatic Control;
Product Description

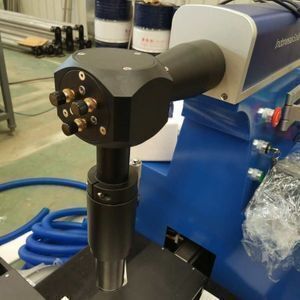

Fiber Laser Scribing Machine

Applications

Scribing processing in solar photovoltaic fieldjust like mono-crystalline sillicon,poly-crystalline sillicon,amorphous crystalline sillicon,solar cell/wafer

Technical Parameters:
Modulated frequency: 20-80 kHz
Beam power: Adjustable, max 20W
Scribing speed: Adjustable,  max 200 mm/ s
Min scribing line width: 0.05 mm
Scribing area: 156mmX156mm,125mmX125mm
CNC worktable accuracy: 0.01 mm
Power supply: 1-phase 220 VAC +/- 10%, 50 Hz (A voltage stabilizer might
be required to avoid irregular scribing quality caused by severe voltage fluctuation).
Input power: Max 1.5kW

Features
1. Better quality of laser beam
2. No wearing parts to be replaced and save maintenance cost
3. Imported delta servo motor working system,stable running and faster cutting speed

Packing & Delivery
Customer Case

Cuntomer from Iran

Customer from south Africa

Thanks for the support of all our customer in the past 10 Years !   !   !

Welcome to our factory

Enterprise Profile

Radiant Automation Equipment Co., Ltd. is subordinate to the North China Geological Exploration Bureau. Radiant occupies a land of 21,000 m2 and the manufacturing area is about 17,000 m2. There are total 370 employees, among which there are 115 engineers and technicians.

With strong technical strength and professionalism, Radiant has developed laminator(pneumatic clamshell laminator, large-scale laminator, full-automatic laminator),Framing machine, Sun simulator, Cell Tester and multi-kinds of solar module process line equipment.

Also the customized specifications and turnkey project are available upon equirements. Companys products in strict accordance with quality control system standard and CE standard, products have been exported to Italy, Japan, USA, Korea, India, Cambodia, Israel, Turky, Egypt, Iran, kazakhstan, Mexcio and many other countries and regions. Radiant keeps long time relationship with customer from China and out of China,such as Korea Hyundai, Suntech, SF group, CLP electric photovoltaic technology co., LTD etc.

Radiant cherishes the cooperation and relationship with friends all over the world. Taking customers' concern as the first consideration, it adheres " honest and faith, cooperation and mutual benefit " It devotes to building up its high reputation and providing best service.
