85kg jumping jack tamper vibratory tamping rammer manufacture

Supplier: Wuxi Pinnacle Mechanical Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Ms Amber Lu
Price: $515.00 /carton
Min. Order: 1 carton

Click here to contact

Product details

Applicable Industries:	Construction works ;	Engine type:	Air-cooled,single cylinder,4-stroke,petrol engine;
Voltage:	Customized;	Packaging Detail:	Packing is the Carton made of strong,sturdy wooden Compressive strength and corrosion resistance 85kg jumping jack tamper vibratory tamping rammer manufacture;
Color:	Clients Requirment;	Dimension(LWH):	79x44x115cm;
Payment Terms:	L/C,T/T;	Impact Force:	15KN;
Power(W):	2.9-3.2kw;	Condition:	New;
Name:	Tamping Rammer;	UNIQUE SELLING POINT:	Low Maintenance Cost;
Weight:	83kg;	Brand Name:	DIMEC;
Certification:	CE;	After-sales Service Provided:	Online support;
After-sales Service Provided:	Engineers available to service machinery overseas;	Product Name:	PME-RM85 Tamping Rammer;
Type:	Gasoline;	Warranty:	1 Year;
Place of Origin:	China;	Usage:	Compact;
Engine:	Gasoline;	Keyword:	powerful used plate tamping rammer;

Product Description

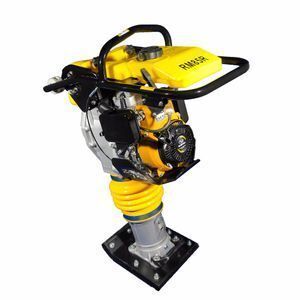

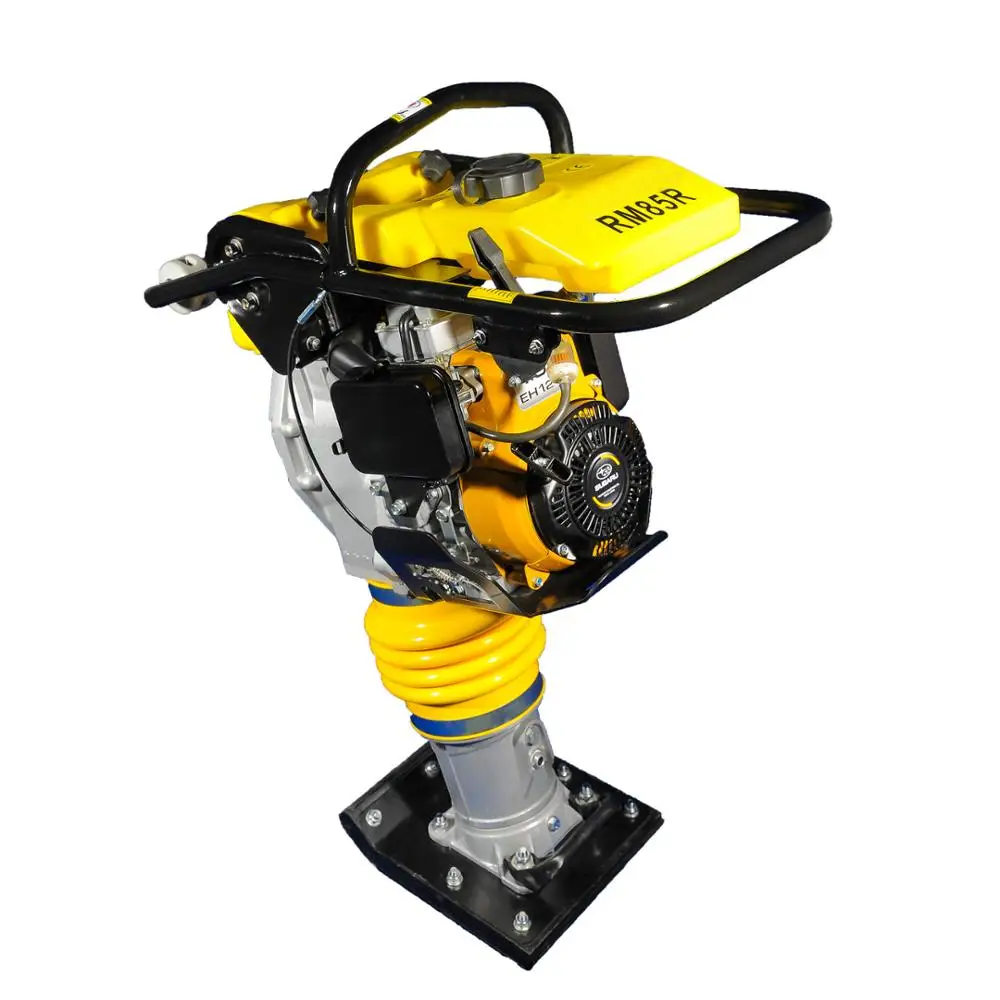

85kg jumping jack tamper vibratory tamping rammer manufacture

Description

The torque generated by engine or electric motor is transferred to reciprocating motion by crank gear, which will pass it on vibrating foot through spring cylinder. It has strong impact force though it is small and light.

Feature

Advanced design gearbox cover
Add one more bearing seat in the gearbox cover to fix the small gear, which run the machine more steady and dependable.

Double air filter
PME-RM85 with double air filters. It can clean the air entering engine more efficiently, to reduce engine damage taken from great dust when compaction.

Outstanding self-balance
Outstanding self-balance of the machine providing high efficiency while reducing operator fatigue.

Exclusively designed engine
Honda GX120, Loncin LC165F-3H engine was designed exclusively for tamping rammer of high performance to offer fast starting, low noise, low maintenance as well as low fuel consumption.

Model	PME-RM85H	PME-RM85R	PME-RM85L
Engine	Honda GX120	Subaru EH12	Loncin LC165F-3H
Engine type	Air-cooled,single cylinder,4-stroke,petrol engine
Displacement [cc]	118	121	149
Engine power [HP]	4	3.5	5
Rated power [KW]	2.9	2.6	3.2
Speed [RPM]	3600	3600	3600
Starting system	Manual start
Employed fuel	93#
Employed oil	10W-30
Fuel tank capacity [L]	2.2	2.2	2.2
Oil tank capacity [L]	0.6	0.4	0.35
Leap height [mm]	50-80
Frequency [VPM]	640-680
Tamping force [KN]	15
Plate size [mm]	340x285
Max. compaction depth [cm]	60
Travel speed [m/min]	10-13
Efficiency [m2/h]	300
N.W./G.W. [kg]	83/96
Package (L x W x H) [cm]	79x44x115
