Condition: | New; | Engine type: | Air-cooled,single cylinder,4-stroke,petrol engine; |
After Warranty Service: | Online support; | Product Name: | PME-RM75 Tamping Rammer; |
After-sales Service Provided: | Engineers available to service machinery overseas,Online support; | Dimension(L*W*H): | 79x44x115cm; |
Applicable Industries: | Construction works ; | Local Service Location: | None; |
Engine: | Gasoline; | Usage: | Compact; |
Keyword: | construction machine impact earth rammer; | Type: | Gasoline; |
Color: | Clients Requirment; | Weight: | 75kg; |
Place of Origin: | China; | Packaging Detail: | Packing is the Carton made of strong,sturdy wooden Compressive strength and corrosion resistance PME-RM75 5hp 3.2kw 250M2/h soil tamping rammer with Robin engine; |
Core Components: | Engine; | Warranty: | 1 Year; |
Name: | Tamping Rammer; | Package Preview: | ; |
Showroom Location: | None; | Machinery Test Report: | Not Available; |
Payment Terms: | L/C,D/A,D/P,T/T; | Impact Force: | 14KN; |
Voltage: | Customized; | Certification: | CE; |
UNIQUE SELLING POINT: | Low Maintenance Cost; | Brand Name: | DIMEC; |
Marketing Type: | Hot Product 2019; | Warranty of core components: | 1 Year; |
Video outgoing-inspection: | Provided; | Power: | 2.6-3.2kw; |

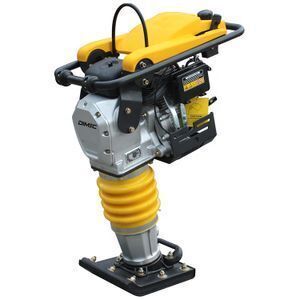

PME-RM75 soil tamping rammer with Robin engine
Description
The torque generated by engine or electric motor is transferred to reciprocating motion by crank gear, which will pass it on vibrating foot through spring cylinder. It has strong impact force though it is small and light.
Feature
Exclusively designed engine
Honda GX120, Loncin LC165F-3H engine was designed exclusively for tamping rammer of high performance to offer fast starting, low noise, low maintenance as well as low fuel consumption.
New design throttle lever
Throttle lever using new design and material to extend usage life with smooth operation.
Effective shock absorber
Heavy duty shock buffering system effectively reduced shock to arms therefore improve operation comfort.
Safety device
Dust-proof cover and side panel of the engine provided needed protection of the power system.
Model | PME-RM75H | PME-RM75R | PME-RM75L |
Engine | Honda GX120 | Subaru EH12 | Loncin LC165F-3H |
Engine type | Air-cooled,single cylinder,4-stroke,petrol engine | ||
Displacement [cc] | 118 | 121 | 149 |
Engine power [HP] | 4 | 3.5 | 5 |
Rated power [KW] | 2.9 | 2.6 | 3.2 |
Speed [RPM] | 3600 | 3600 | 3600 |
Starting system | Manual start | ||
Employed fuel | 93# | ||
Employed oil | 10W-30 | ||
Fuel tank capacity [L] | 2.2 | 2.2 | 2.2 |
Oil tank capacity [L] | 0.6 | 0.4 | 0.35 |
Leap height [mm] | 40-80 | ||
Frequency [VPM] | 640-680 | ||
Tamping force [KN] | |||
Plate size [mm] | 340x285 | ||
Max. compaction depth [cm] | 55 | ||
Travel speed [m/min] | 10--13 | ||
Efficiency [m2/h] | 250 | ||
G.W./N.W. [kg] | 75/90 | ||
Package (L x W x H) [cm] | 79x44x115 |
