Name: | Plate Compactor; | Applicable Industries: | Construction works ; |
Dimension(L*W*H): | 72x41x60cm; | After Warranty Service: | Online support; |
Place of Origin: | Jiangsu China; | Power: | 2.4-2.5HP; |
After-sales Service Provided: | Engineers available to service machinery overseas,Online support; | Core Components: | Engine; |
Package Preview: | ; | Type: | Forward; |
Vibrating frequency: | 5210vpm; | Local Service Location: | none; |
Warranty: | 1 Year; | Payment Terms: | L/C,D/A,D/P,T/T; |
Brand Name: | DIMEC; | Video outgoing-inspection: | Provided; |
Color: | Clients Requirements; | Machinery Test Report: | Not Available; |
UNIQUE SELLING POINT: | Low Maintenance Cost; | Certification: | CE; |
Application: | Compaction; | Engine: | petrol engine; |
Max. compaction depth: | 20cm; | Packaging Detail: | Packing is the Carton made of strong,sturdy wooden Compressive strength and corrosion resistance; |

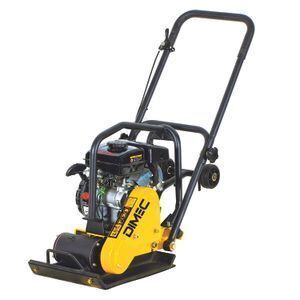

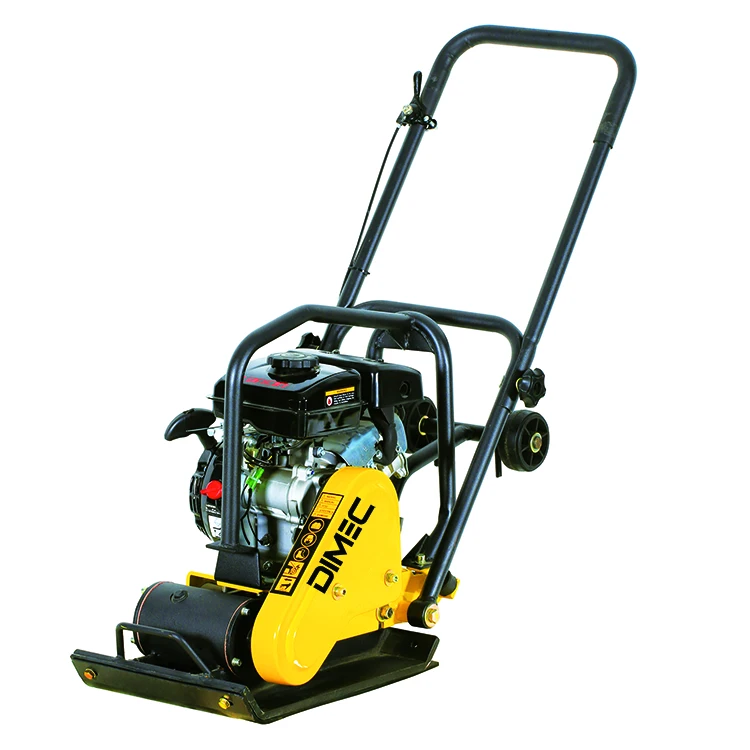

Product name: | PME-C50 Plate Compactor; | Centrifugal force: | 9KN; |
Marketing Type: | Ordinary Product; | Warranty of core components: | 1 Year; |
Condition: | New; | Engine type: | Air-cooled,single cylinder,4-stroke gasoline engine; |
Model Number: | PME-C50; | Showroom Location: | none; |
Description
A plate compactor is an indispensable piece of construction equipment that is used to compress different types of soil, asphalt and gravel. Plate compactor increases productivity because it provide most optimal performance. Once the machine is turned on, flat, heavy plate starts to move up and down as quick as the operator wants. PME has many plate compactor models for different construction jobs, which differ in size, power and operating mechanism.
Feature
Safety and reliability
External cage to protect the plate from accidental damage.
The V-belt drive is fully enclosed for better safety and trouble free use.
Easy transportation
Foldable handle for easy transportation and storage.
Build in wheels for easy transportation.
Open bottom plate to faciliate self cleaning.
More utilisation
Properly curved edges for easy access to corners during compaction.
Comfortable operation
Heavy duty shock buffer mounts to reduce vibration toward upper deck and handle.
Model |
PME-C50L |
PME-C50LF |
Engine |
Loncin LC154F |
Lifan LF154F |
Engine type |
Air-cooled,single cylinder,4-stroke,petrol engine |
|
Displacement [cc] |
87 |
105 |
Engine power [HP] |
2.5 |
2.4 |
Rated power [KW] |
1.5 |
1.4 |
Speed [RPM] |
3600 |
3600 |
Starting system |
Manual start |
|
Employed fuel |
93# |
|
Employed oil |
10W-30 |
|
Fuel tank capacity [L] |
1.6 |
1.4 |
Oil tank capacity [L] |
0.35 |
0.45 |
Frequency [VPM] |
5210 |
|
Centrifugal force [KN] |
9 |
|
Plate size (L x W ) [cm] |
43x30 |
|
Max. compaction depth[cm] |
20 |
|
Travel speed [m/min] |
15 |
|
Efficiency [m2/h] |
250 |
|
Max. inclination angle |
20o |
|
G.W./N.W. [kg] |
56/52 |
|
Package (L x W x H) [cm] |
72x41x60 |
Standard export carton packing.
Packing is the Carton made of strong,sturdy wooden
Compressive strength and corrosion resistance
25-30days after confirming order,detail delivery date should be decided according to
production season and order quantity.
