Weight: | 80kg; | After-sales Service Provided: | Engineers available to service machinery overseas,Online support; |
After Warranty Service: | Online support; | Warranty: | 1 Year; |
Keyword: | superior vibratory plate tamping rammer compactor; | UNIQUE SELLING POINT: | Low Maintenance Cost; |
Place of Origin: | Jiangsu China; | Brand Name: | DIMEC; |

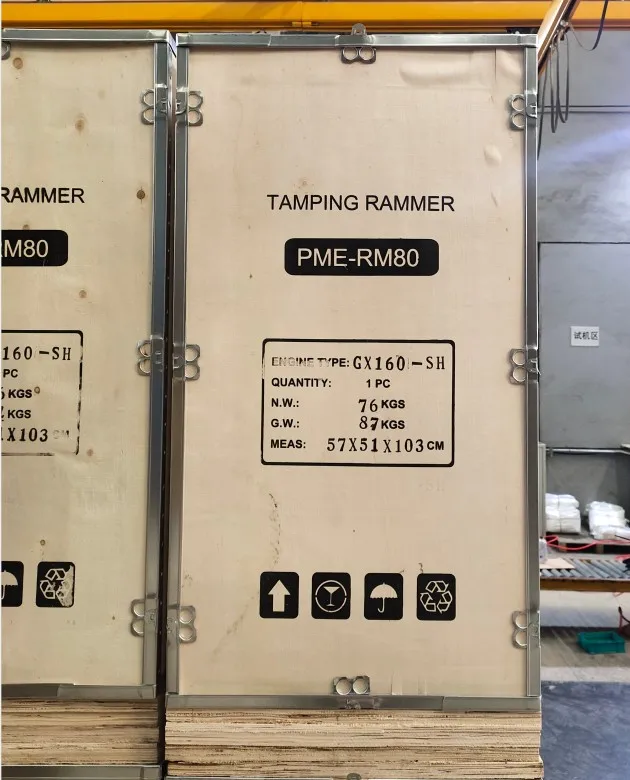

Packaging Detail: | Packing is the Carton made of strong,sturdy wooden Compressive strength and corrosion resistance; | Marketing Type: | Ordinary Product; |
Supply Ability: | 5000 Carton/Cartons per Month Tamping rammer with Loncin LC168F-2H/5.5HP; | Video outgoing-inspection: | Provided; |
Core Components: | Engine; | Package Preview: | ; |
Certification: | CE; | Voltage: | Customized; |
Local Service Location: | None; | Usage: | Compact; |
Name: | Tamping Rammer; | Product Name: | PME-RM80 Tamping Rammer; |
Applicable Industries: | Construction works ; | Impact Force: | 10KN; |
Showroom Location: | None; | Color: | Clients Requirment; |
Power: | 3.2-3.7kw; | Engine: | Gasoline; |
Port: | Shanghai; | Type: | Gasoline; |
Condition: | New; | Payment Terms: | L/C,T/T; |
Engine type: | Air-cooled,single cylinder,4-stroke,petrol engine; | Warranty of core components: | 1 Year; |
Dimension(L*W*H): | 79x48x115cm; | Machinery Test Report: | Provided; |

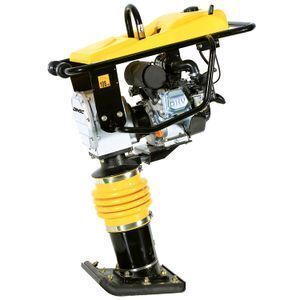

Tamping rammer with Loncin LC168F-2H/5.5HP
Description
The torque generated by engine or electric motor is transferred to reciprocating motion by crank gear, which will pass it on vibrating foot through spring cylinder. It has strong impact force though it is small and light.
Feature
Outstanding self-balance
Outstanding self-balance of the machine providing high efficiency while reducing operator fatigue.
High quality fuel tank
Dust free fuel tank with fuel filter, keep the petrol entering engine clean; The vent hole is opened on the top side of cap, to ensure the fuel tank breathable, but non penetrating oil. Durable plastic material and oil resistance seal prevent oil leakage.
Wheels as optional
Three types wheels and your optional. Easy for transportation.
Effective shock absorber
Heavy duty shock buffering system effectively reduced shock to arms therefore improve operation comfort.
Model | PME-RM80R | PME-RM80L-168 | PME-RM80L-165 |
Engine | Robin EY20 | Loncin LC168F-2H | Loncin LC165F-3H |
Engine type | Air-cooled,single cylinder,4-stroke,petrol engine | ||
Displacement [cc] | 183 | 196 | 149 |
Engine power [HP] | 5.0 | 6.5 | 5.0 |
Rated power [KW] | 3.7 | 3.8 | 3.2 |
Speed [RPM] | 3600 | 3600 | 3600 |
Starting system | Manual start | ||
Employed fuel | 93# | ||
Employed oil | 10W-30 | ||
Fuel tank capacity [L] | 2.2 | 2.2 | 2.2 |
Oil tank capacity [L] | 0.6 | 0.6 | 0.35 |
Leap height [mm] | 40-65 | ||
Frequency [VPM] | 600-640 | ||
Tamping force [KN] | 10 | ||
Plate size [mm] | 330x290 | ||
Max. compaction depth [cm] | 45 | ||
Travel speed [m/min] | 9-12 | ||
Efficiency [m2/h] | 200 | ||
G.W./N.W. [kg] | 80/95 | ||
Package (L x W x H) [cm] | 79x48x115 |
