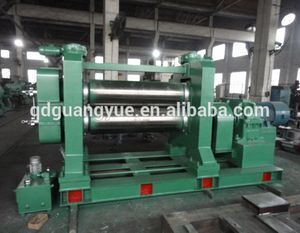

Two rollers rubber calender machine

Supplier: Qingdao Guangyue Rubber Machinery Manufacturing Co., Ltd.
Region: Shandong, China
Contact: Mr daguang qiu
Price: $3600.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Free Spare Parts;	After-sales Service Provided:	Engineers available to service machinery overseas;
Port:	Qingdao;	certificate:	ISO/CE/SGS;
Packaging Detail:	Packed in wooden case or according to your need;	Dimension(LWH):	265012001700;
Supply Ability:	30 Set/Sets per Month;	save energy:	good after service;
XY630:	low noise;	Certification:	CE;
Warranty:	2 Years;	Type:	Rubber Calender;
Voltage:	380V;	processing type:	Plastic Thermoforming Machine;
Power(W):	11KW;	Condition:	New;
Year:	2018;	Payment Terms:	L/C,T/T,Western Union;
Brand Name:	Qingdao guanyue;	Place of Origin:	Shandong China;
Weight:	3.5T;

two roll calender

1- Name: Rubber calender, three-roll rubber calender,two roll rubber calender,four roll rubber calender.

2- Function: Make rubber sheet which need higest thickness quality.

3- Features:

A - The rolls are made of chilled cast iron with vanadium and titanium alloys. The roll face is hard and anti-wear. To heat up or cool down, the rolls are either circumferentially drilled or centrally bored so as to make temperature well proportioned on the roll surface.

B- The rolls are arranged in I, and L forms. The upper rolls have roll cambers that can eliminate bending impact on rolls during working process. Thus, it is possible to make products with same thickness along axial direction

C- The transmission system adopts a hard facing gear reducer, which has a compacted structure with higher transmission efficiency, lower noise and longer service life.

D- The machine is equipped with emergency device. When an emergent accident occurs, the calendar will be immediately stopped to open the roll space so as to protect the operator and equipment.

4-Certification: CE,SGS,ISO9001

5-Main parameters:

	XY-2-230	XY-2-250	XY-2-300	XY-2-360	XY-2-400	XY-2-450
Roll diameter (mm)	230	250	300	360	400	450
Working length (mm)	635	720	800	1120	1200	1400
Friction ratio	1:1 1:1.17	1:1 1:1.17	1:1 1:1.25	1:1 1:1.33	1:1 1:1.38	1:1 1:1.32
Mid roller linear(m/min)	3-14.5	3-14	5-24	7-20	88-23	8-23
Bearings form	Rolling bearings	Rolling bearings	Rolling bearings	Rolling bearings	Rolling bearings	Rolling Bears
Mini thickness of products (mm)	0.2	0.2	0.2	0.2	0.2	0.2
Motor power(kw)	11	11	18.5	30	37	45
