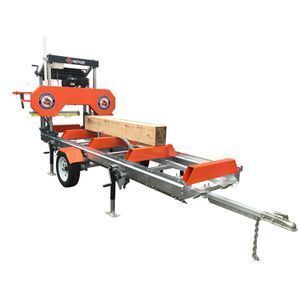

Horizontal diesel log portable band sawmill for log

Product details
Power(W):5.5KW;Package Type:iron pallet;
Certification:CE,EPA;Dimension:4064 x1778 x 1800 mm;
Single package size:197X126X183 cm;Style:Horizontal;
Applicable Industries:Construction works ,Wood working machinery;Power:Electric power;
Brand Name:RIMA;Weight:372KG;
Single gross weight:230 KG;Dimension(L*W*H):4064 x1778 x 1800 mm;
Selling Units:Single item;Voltage:400V;
Blade Speed:17m/min;Application:Personal use,DIY.cutting wood;
Condition:New;Use:Woodworking;
Capacity cutting size:559 x 165 x 2794 mm;Place of Origin:Shandong China;
Usage:Wood working;Color:Customized;
Warranty:1 Year;Name:Bandsaw Sawmill;
Packing Size:1800x550x710mm;Blade Wheel Diameter:475 mm (18.7");
After-sales Service Provided:No after-sales service;Distance between teeth:22mm (0.86");
Available engine:Gasoline Engine 9 PH;Package Preview:https://sc01.alicdn.com/kf/H55e42b64230f48a388a0d15cb6a70544V.jpg_640x640.jpg,https://sc02.alicdn.com/kf/H6b8e81480cd14177b5c173c76de42134Z.jpg_640x640.jpg;
Hot sale machine

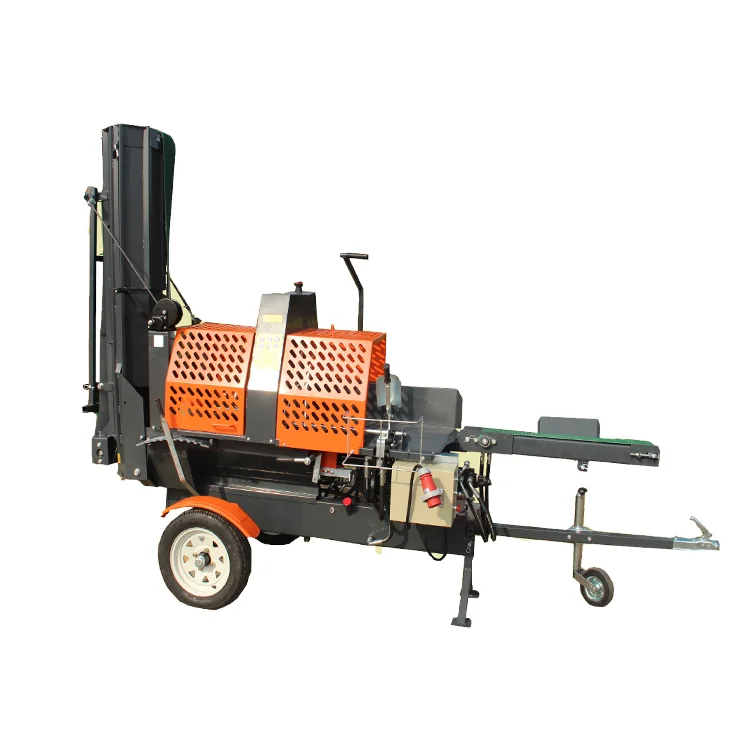

Firewood processorMini excavator Screw log splitter Timber traile with crane
Product Description


Model

RS22G

RS22E

RS26G

RS26E

Power

Gasoline Engine 9 HP

(LIFAN, Manual start)

Electric Motor

5.5KW

Gasoline Engine 9 HP

(LIFAN, Manual start)

Electric Motor

5.5KW

Displacement

301cc

400V 50HZ 3phase

301cc

400V 50HZ 3phase

Capacity cutting size

559 x 165 x 2794 mm (22”*6.5”*110”)

559 x 165 x 2794 mm (22”*6.5”*110”)

Blade Speed

17m/min

17m/min

Safe cutting Speed

13-15s/m

13-15s/m

Blade size

3670 x 32x 1.2 mm (144”*1.25”*0.043”)

3874x 32x 1.2 mm (152.5”*1.25”*0.043”)

Distance between teeth

22mm (0.86”)

22mm (0.86”)

Blade Wheel Diameter

475 mm (18.7”)

475 mm (18.7”)

Dimension

4064 x1778 x 1800 mm (160”*70”*71”)

4064 x1778 x 1800 mm (160”*70”*71”)

Track Length

4064mm(160”)

4064mm(160”)

Packing Size

1800x 550x 810mm

2050x140x95mm

1800x550x710mm

2050x140x95mm

1800x 550x 810mm

2050x140x95mm

1800x550x710mm

2050x140x95mm

Weight

312/344kg

352/380kg

312/344kg

352/380kg

20”/40”HC Container

39pcs/78pcs

39pcs/71pcs

39pcs/78pcs

39pcs/71pcs



Application:

It is suitable for the scale production of sawmill and is widely used in wood processing in the original forest area.



Features:

1.hand forward and backward,hand lifting.

2.Power is gasoline engine and electric motor.

3.Sawing hard wood customer recommends  blades.



Advantage:

1.The machine has the features of high cutting speed,high cutting rate,high quality of final

product,great reduce the lost of sawdust.

2.It is simple installation, easy operation, labor saving , and high productivity.

3.simple , safe and pro-environment;

4.Automatic control the timber thickness, high-precision.

5.High cutting efficiency, smooth; high flatness of the cutting plate;

6,The thickness of processing wood can be adjusted according to your need

7.There’s no need the professional sawyers, the ordinary workers can operate the machine expertly.



Detailed image



  hand forward saw.
Gasoline engine,efficient and stable

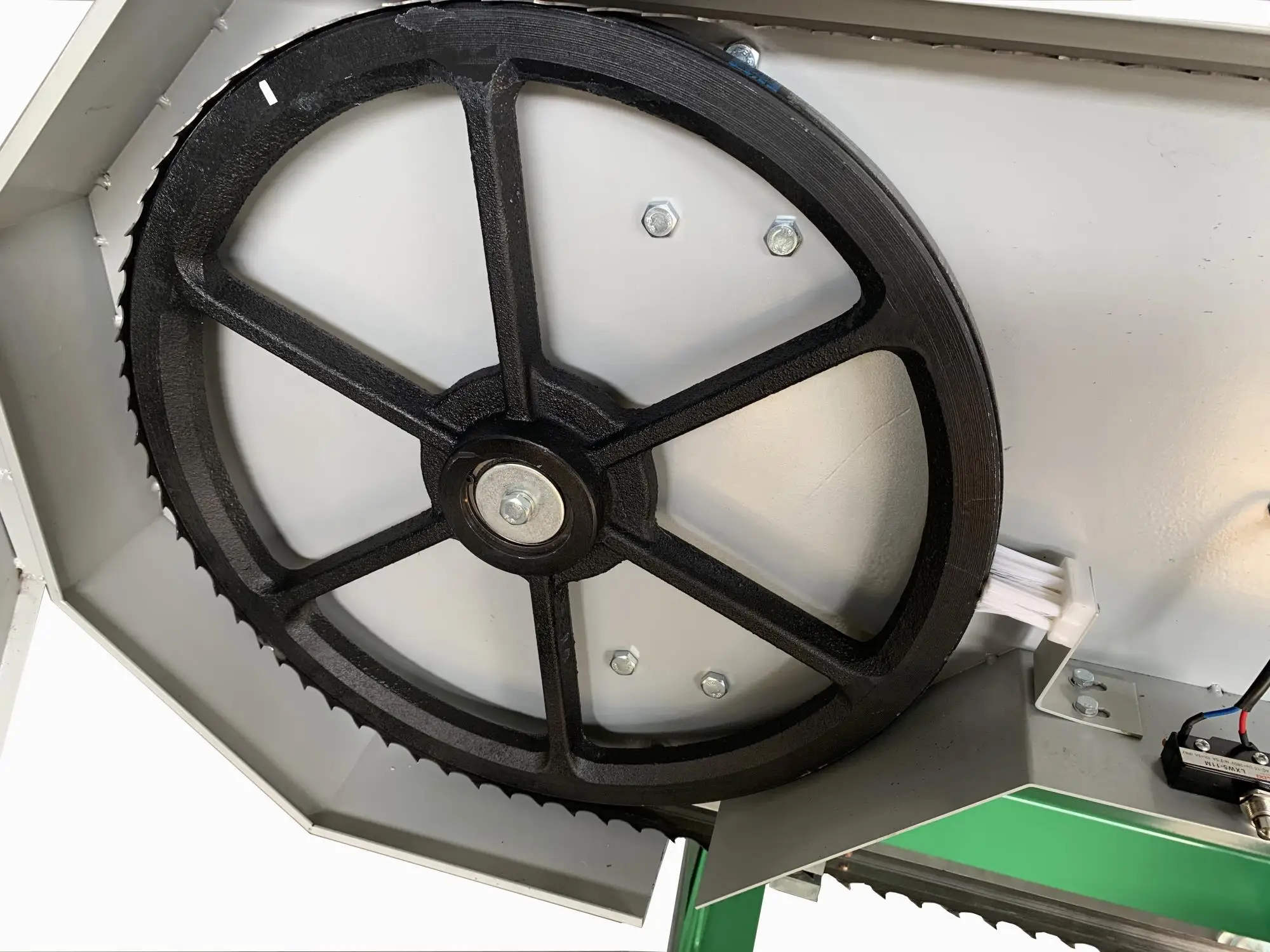

Double feeding wheels to make the machine work well.
Finished product



Company Information





Packaging & Shipping



FAQ

 Why choose Rima?

Rima is one of the leading manufacturers in the production of agricultural equipments and forest machines, such as flail mower, firewood processor,log splitter, wood chipper, mini excavator, grapple etc. for compact utility tractors. Established in 2009, it has built a strong cooperation with worldwide customers by quick growing. Thanks to its flexibility and attention to the customers’ requests, the company has developed a wide range of products for gardening, farming and forest, even with possibility of adapting them to the needs of the final users.
